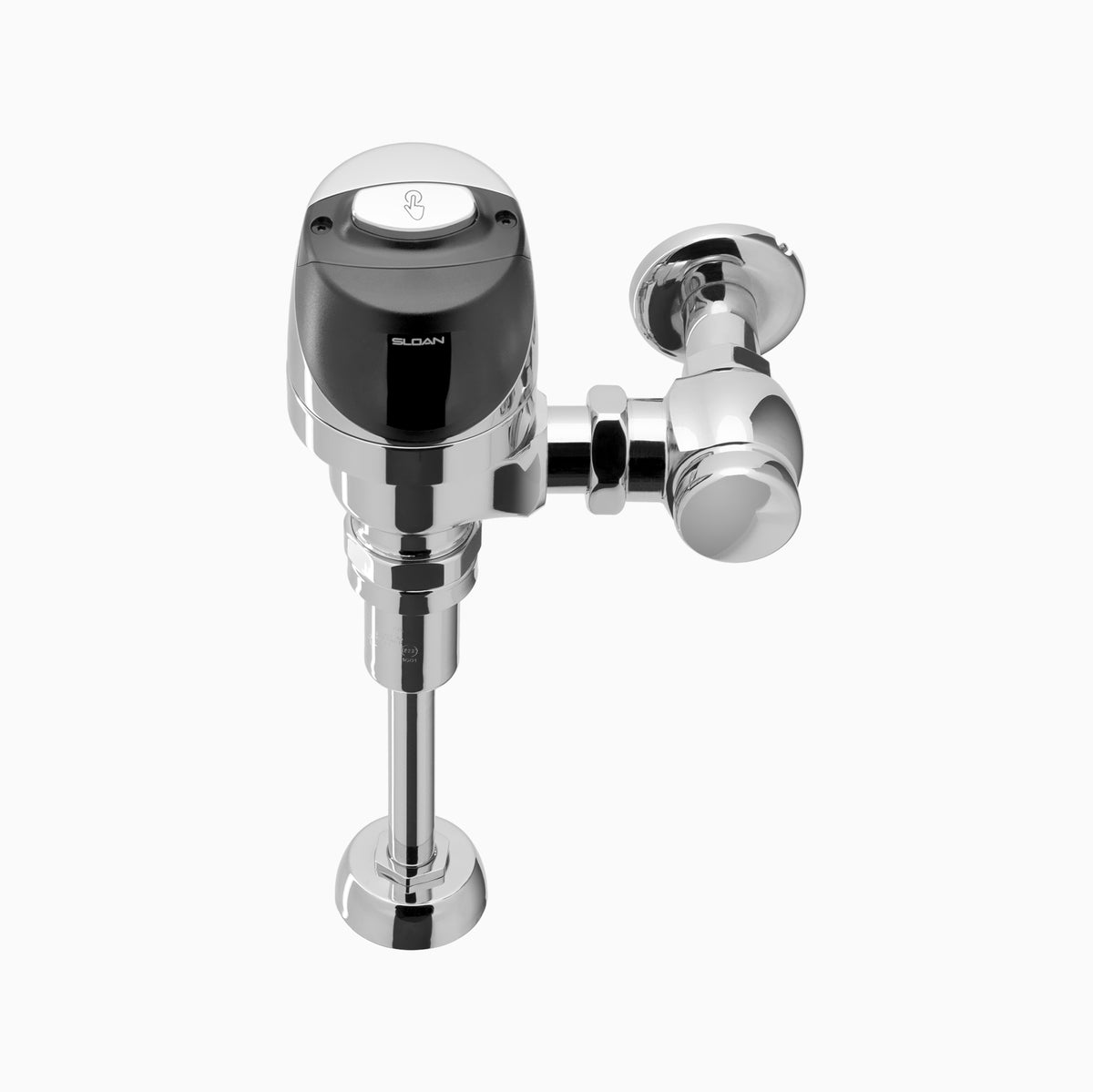

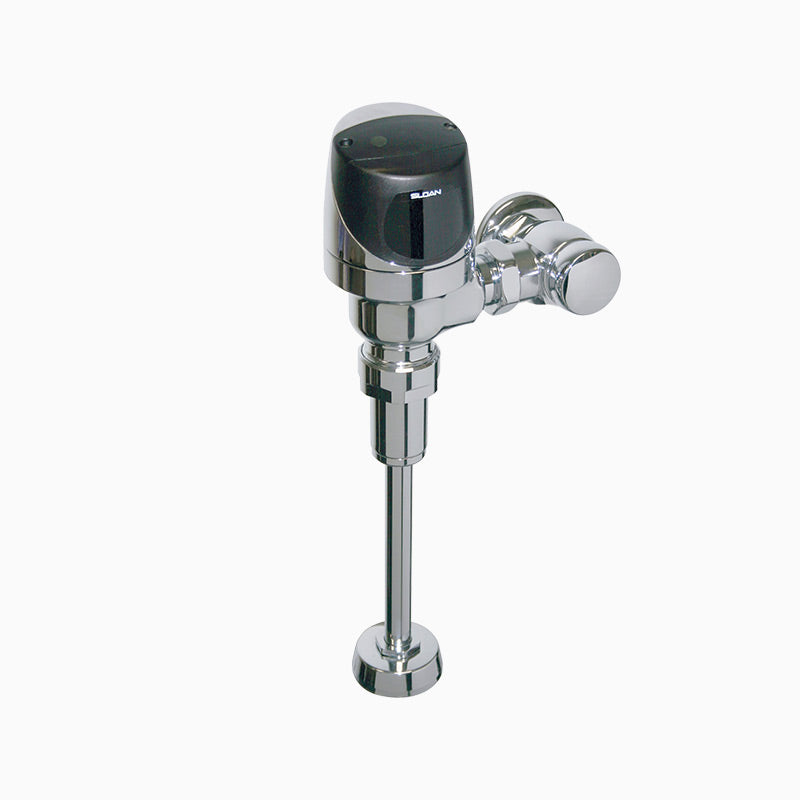

Sloan ECOS 8186 Exposed Battery-Powered Sensor Urinal Flushometer (0.5 GPF), Carbon Neutral, Less Override, Polished Chrome

The Sloan ECOS 8186-0.5-CP-L/OR-CN is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

ECOS 8186: Sensor urinal flushometer with .13 or .25 gpf efficiency. Infrared detection, 3-second delay, dezincification resistant. Compliant with ASSE 1037.

Options on this configuration: Carbon Neutral (CN); Less Override (L/OR). Sloan model number: ECOS 8186-0.5-CP-L/OR-CN.

Features

• 0.5 gpf, Polished Chrome Finish, 0.75" Flush Connection, Fixture Connection Top Spud, Single Flush, Carbon Neutral, 0.75" Inlet, 3/4" Control Stop, Less Override, Battery, Infrared
• Water-efficient flush volume of either .13 gpf or .25 gpf
• Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay
• High copper, low zinc brass castings for dezincification resistance
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required. It ships without a mechanical override -- it will not flush by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: ECOS 8186-0.5-CP-L/OR-CN
• Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Sensor Type: Infrared
• Override Type: Less Override
• Sensing Range (in): 15"-30"
