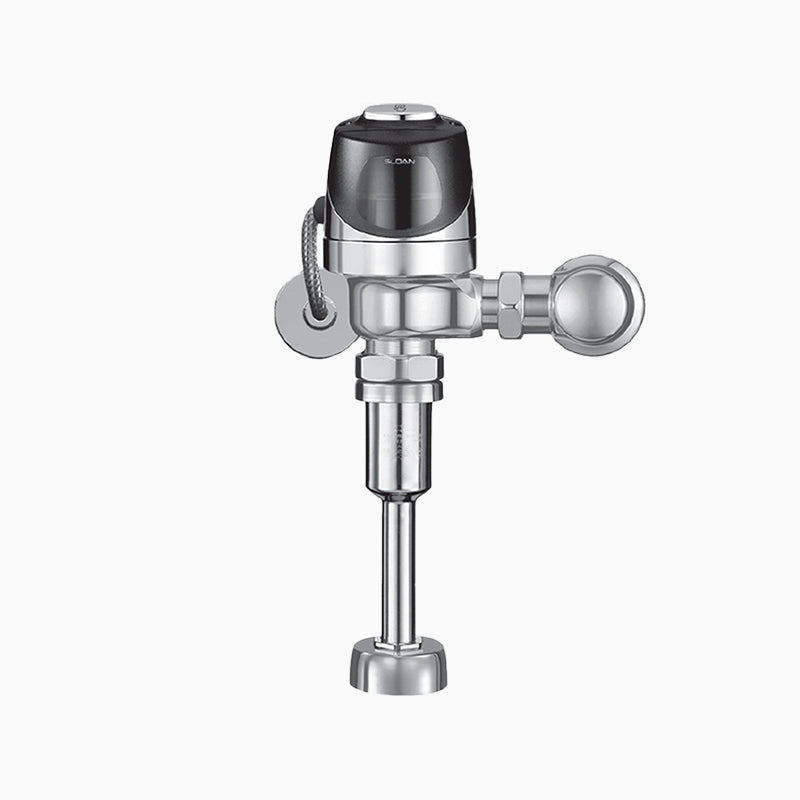

The Sloan Ecos 186-0.125 is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Sensor-operated flushometer with multiple-focused detection for superior accuracy in commercial urinals. Includes Courtesy Flush override and enhanced diaphragm.
Options on this configuration: Hardwired (HW). Sloan model number: Ecos 186-0.125.
Features
- Includes 18” electrical cable
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- PERMEX® Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
- Free Spinning, Vandal Resistant Stop Cap
- Engineered Metal Cover with replaceable Lens Window
- High copper, low zinc brass castings for dezincification resistance
- High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
- 3/4” I.P.S. Screwdriver Bak-Chek® Angle Stop
- ADA Compliant Sloan® ECOS® Electronic Infrared Sensor for automatic “No Hands” operation
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Sensor
-
MPN: Ecos 186-0.125
-
Fixture Served: Urinal
-
Body Style: Exposed
-
Volume per Flush (gal): 0.125
-
Finish: Brushed Stainless
-
Vandal Resistant: Yes
-
Power Source: Hardwired AC
-
Sensor Type: Infrared
