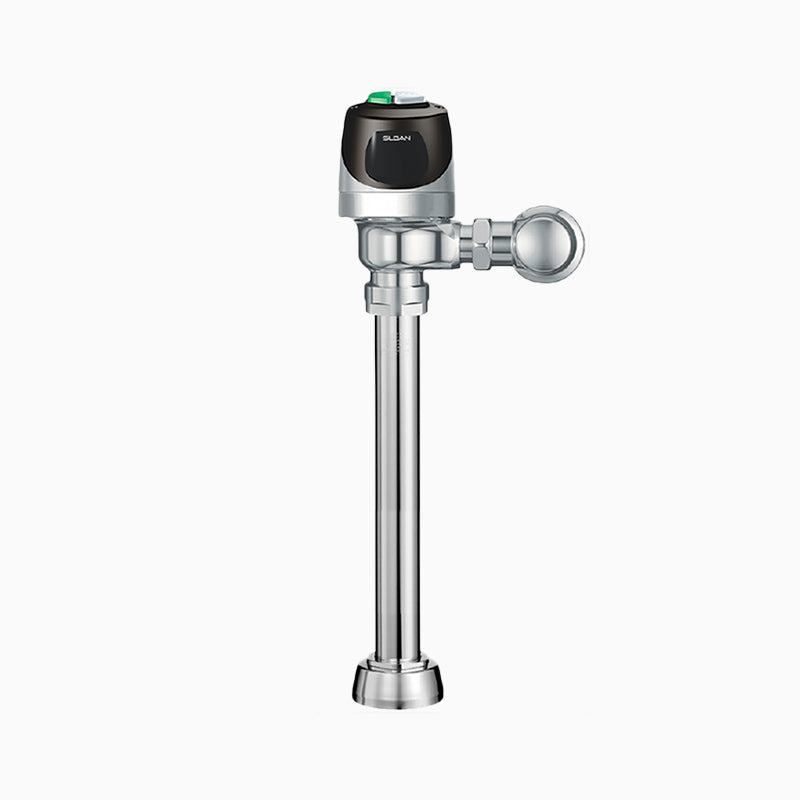

Sloan ECOS 8113 Exposed Battery-Powered Sensor Water Closet Flushometer, Brushed Stainless

The Sloan Ecos 8113-1.6/1.1 is a sensor-operated diaphragm-type flush valve for a water closet.

Dual-flush flushometer conserves water with 1.1/1.6 gpf auto-sensing and manual options. Robust brass construction for commercial durability. ASSE 1037 compliant.

Options on this configuration: 1.6/1.1 gpf. Sloan model number: Ecos 8113-1.6/1.1. Sloan's own price-list description: ECOS 8113-1.6/1.1 PVDSF.

Features

• Automatically initiates a 1.1 gpf or 1.6 gpf flush based on how long user remains in sensor range, Buttons on top of the flush valve enable manual flushing with a standard or reduced flush at restroom visitor’s discretion
• Deploys an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay
• High copper, low zinc brass castings for dezincification resistance
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Sensor
• MPN: Ecos 8113-1.6/1.1
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Finish: Brushed Stainless
• Power Source: DC (Battery)
• Sensor Type: Infrared
