Specifications
Description

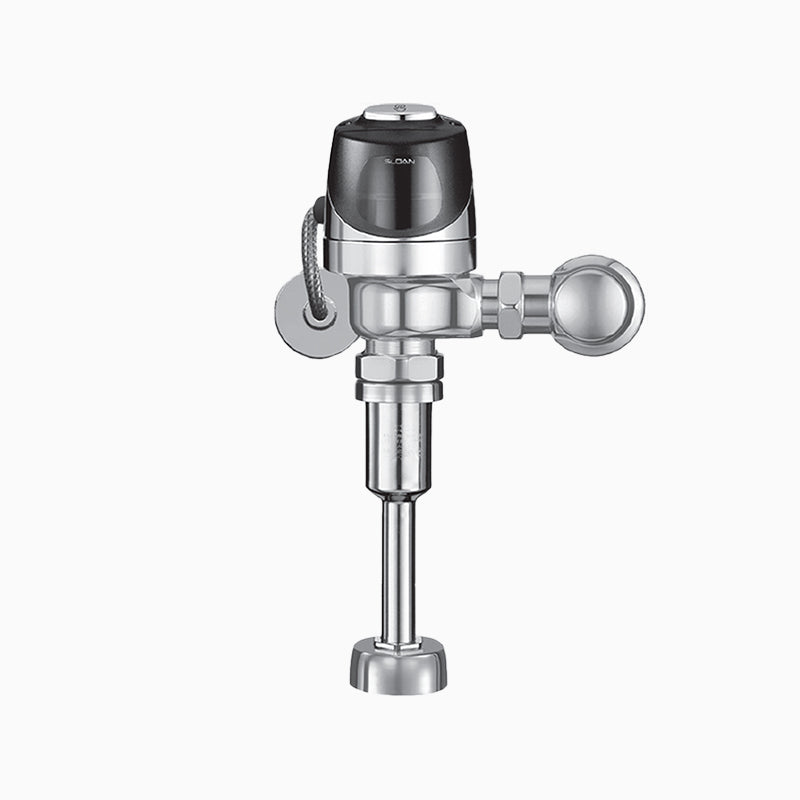

The Sloan Ecos 186-0.125 is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Sensor-operated flushometer with multiple-focused detection for superior accuracy in commercial urinals. Includes Courtesy Flush override and enhanced diaphragm.
Options on this configuration: Hardwired (HW); RW. Sloan model number: Ecos 186-0.125. Sloan's own price-list description: ECOS 186-0.125 HW RW.
Features
- Includes 18” electrical cable
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- PERMEX® Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
- Free Spinning, Vandal Resistant Stop Cap
- Engineered Metal Cover with replaceable Lens Window
- High copper, low zinc brass castings for dezincification resistance
- High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
- 3/4” I.P.S. Screwdriver Bak-Chek® Angle Stop
- ADA Compliant Sloan® ECOS® Electronic Infrared Sensor for automatic “No Hands” operation
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Sensor
- MPN: Ecos 186-0.125
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 0.125
- Vandal Resistant: Yes
- Power Source: Hardwired AC
- Sensor Type: Infrared
Details
| Series | ECOS 186 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Sensor |
| Options | Hardwired (HW), RW | Fixture Served | Urinal |
| Body style | Exposed | Cycle volume gal | 0.125 gal |
| Vandal resistant | Yes | Power source | Hardwired AC |
| Sensor type | Infrared | — | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
|
| Series | ECOS 186
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Sensor
| Sensor
|
