Description

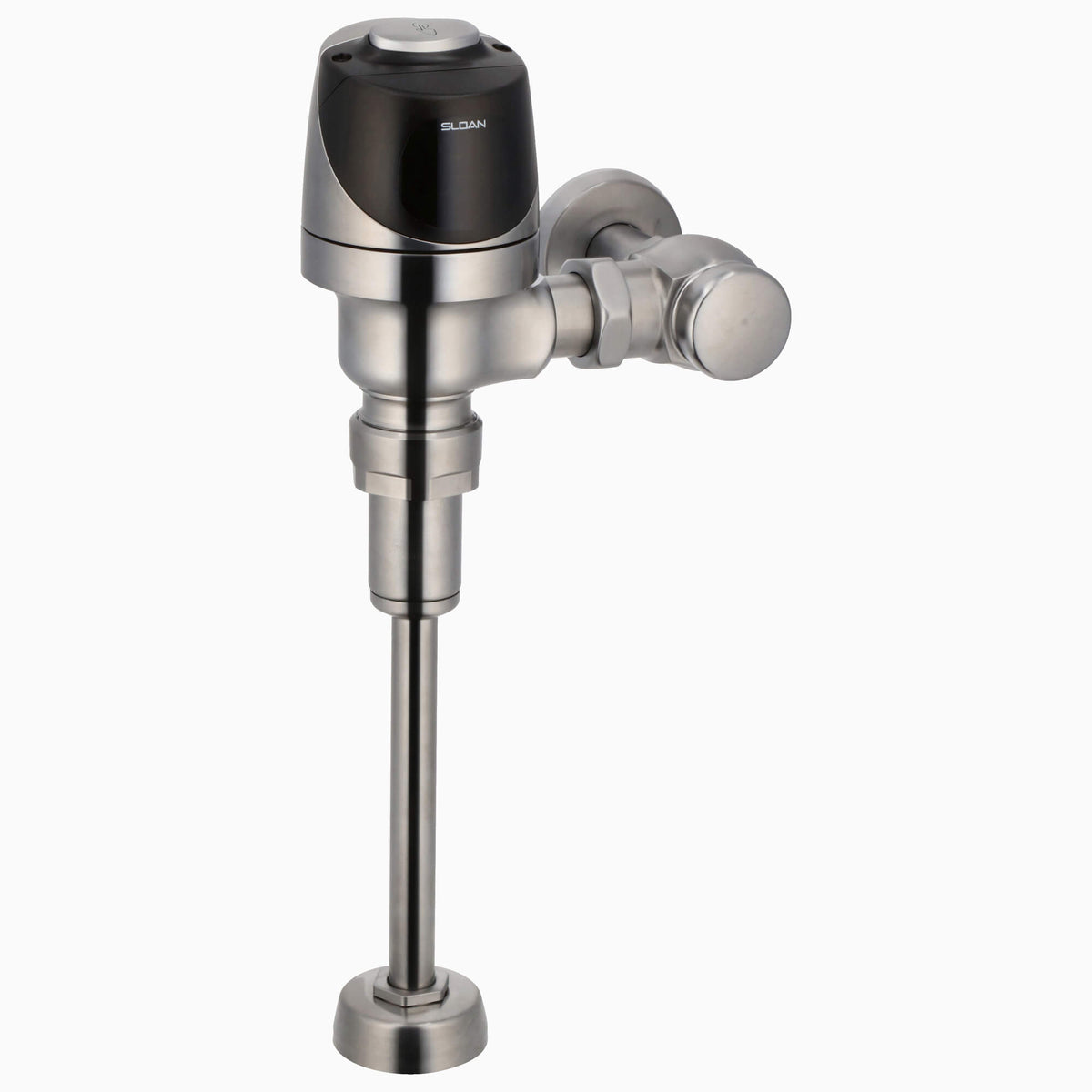

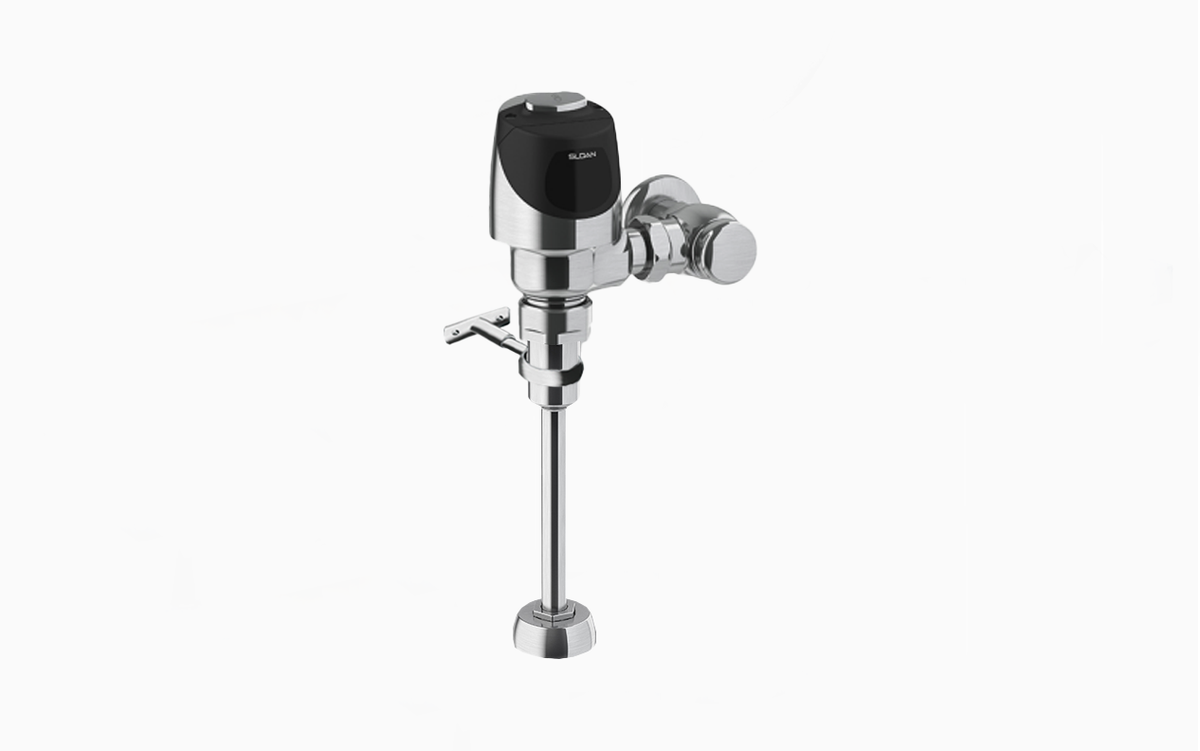

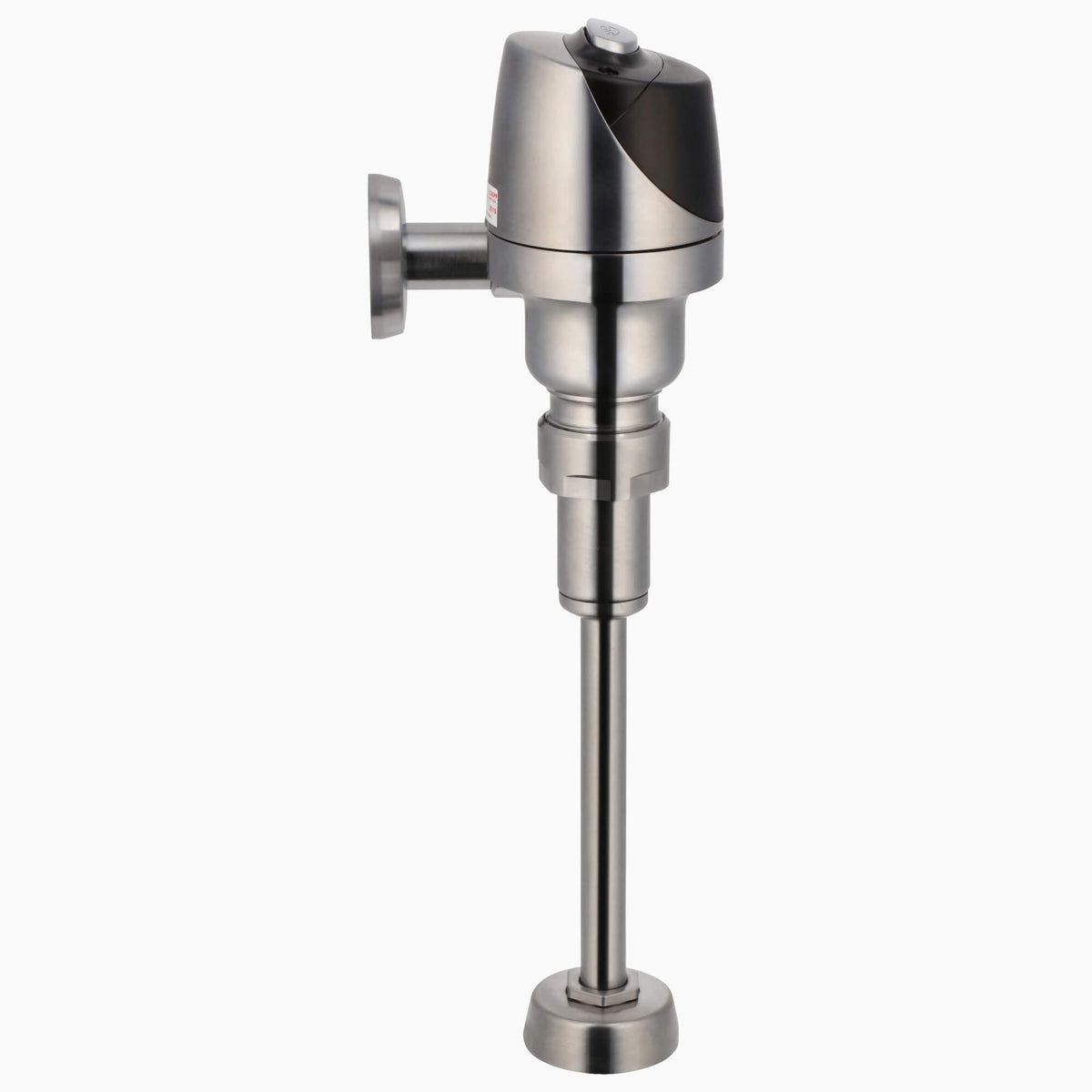

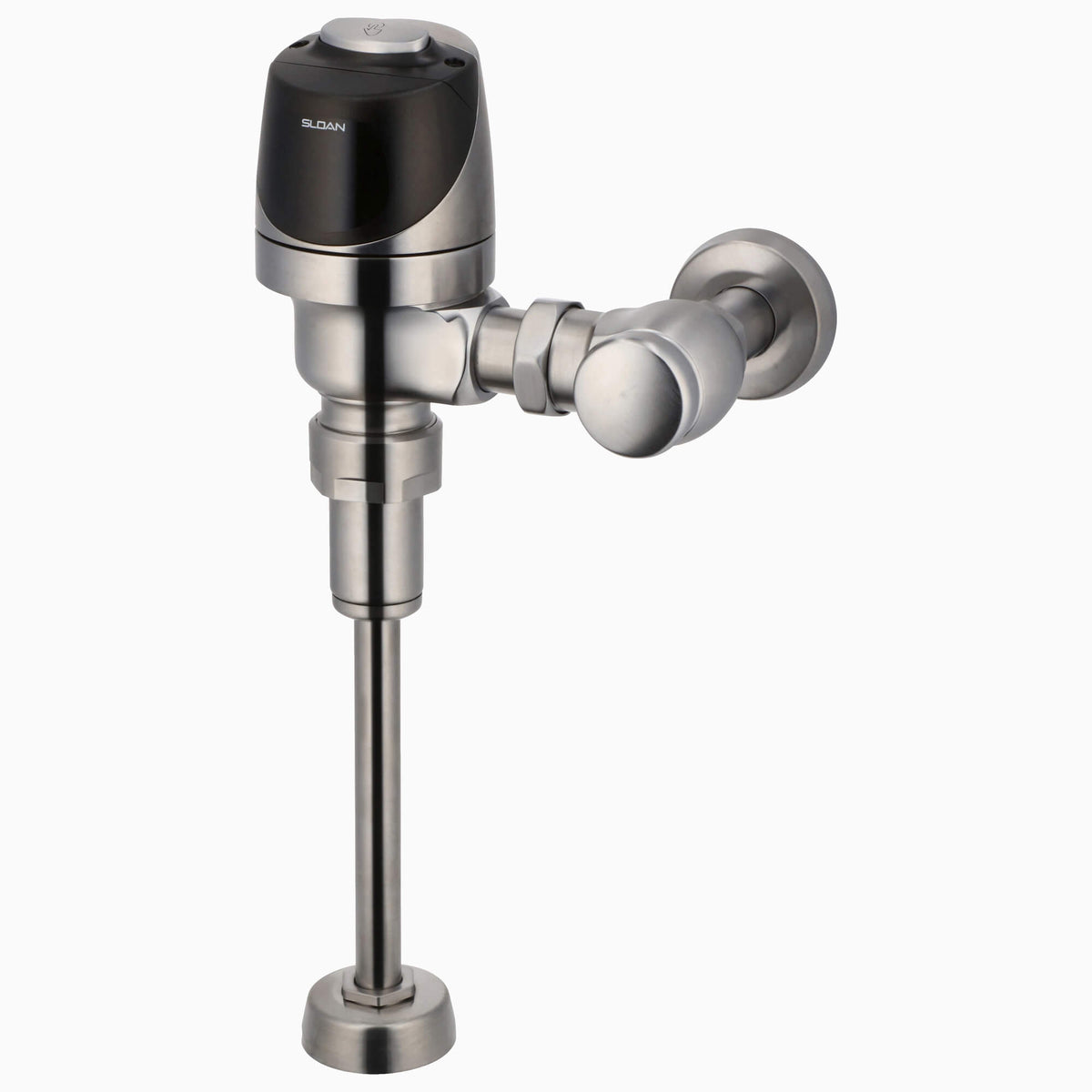

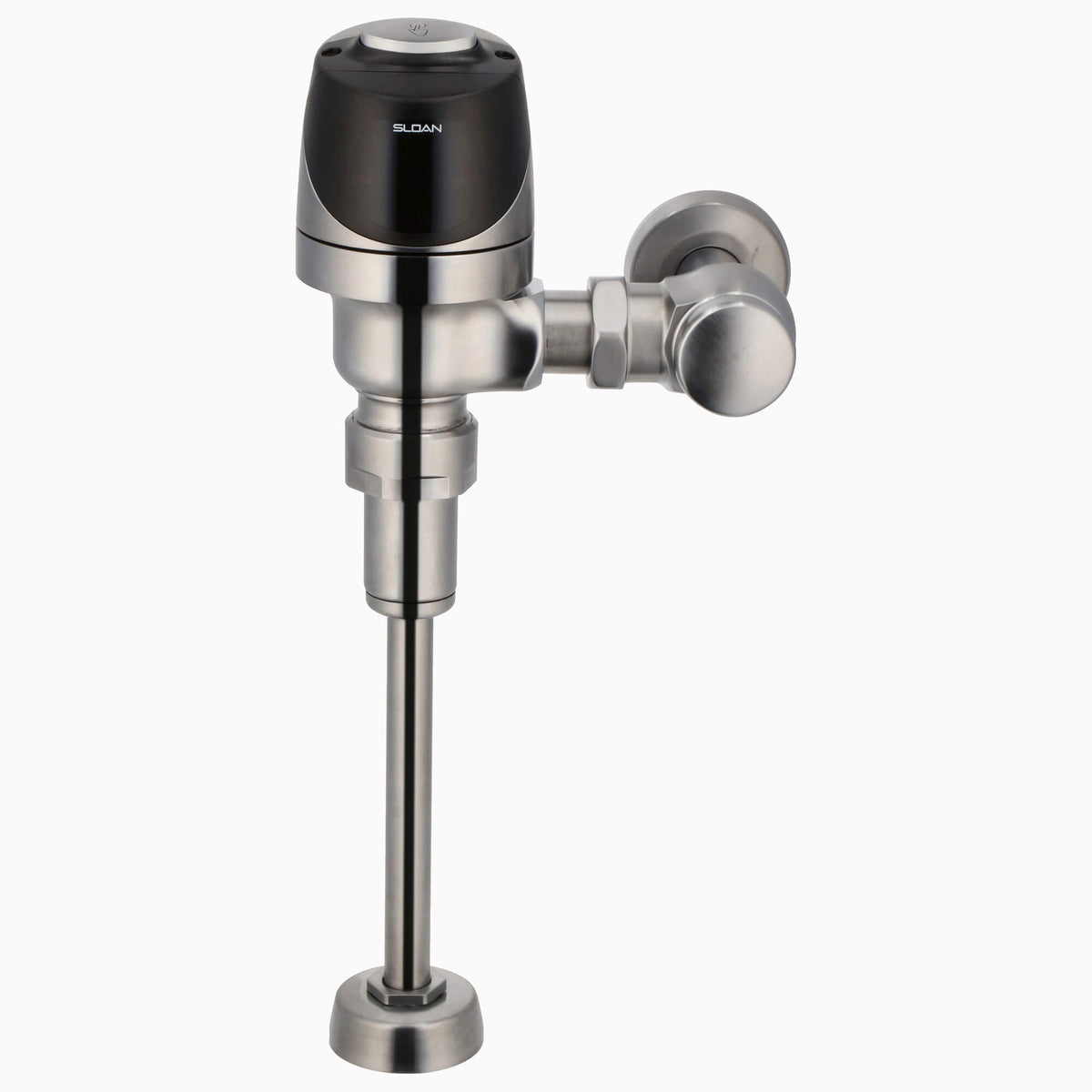

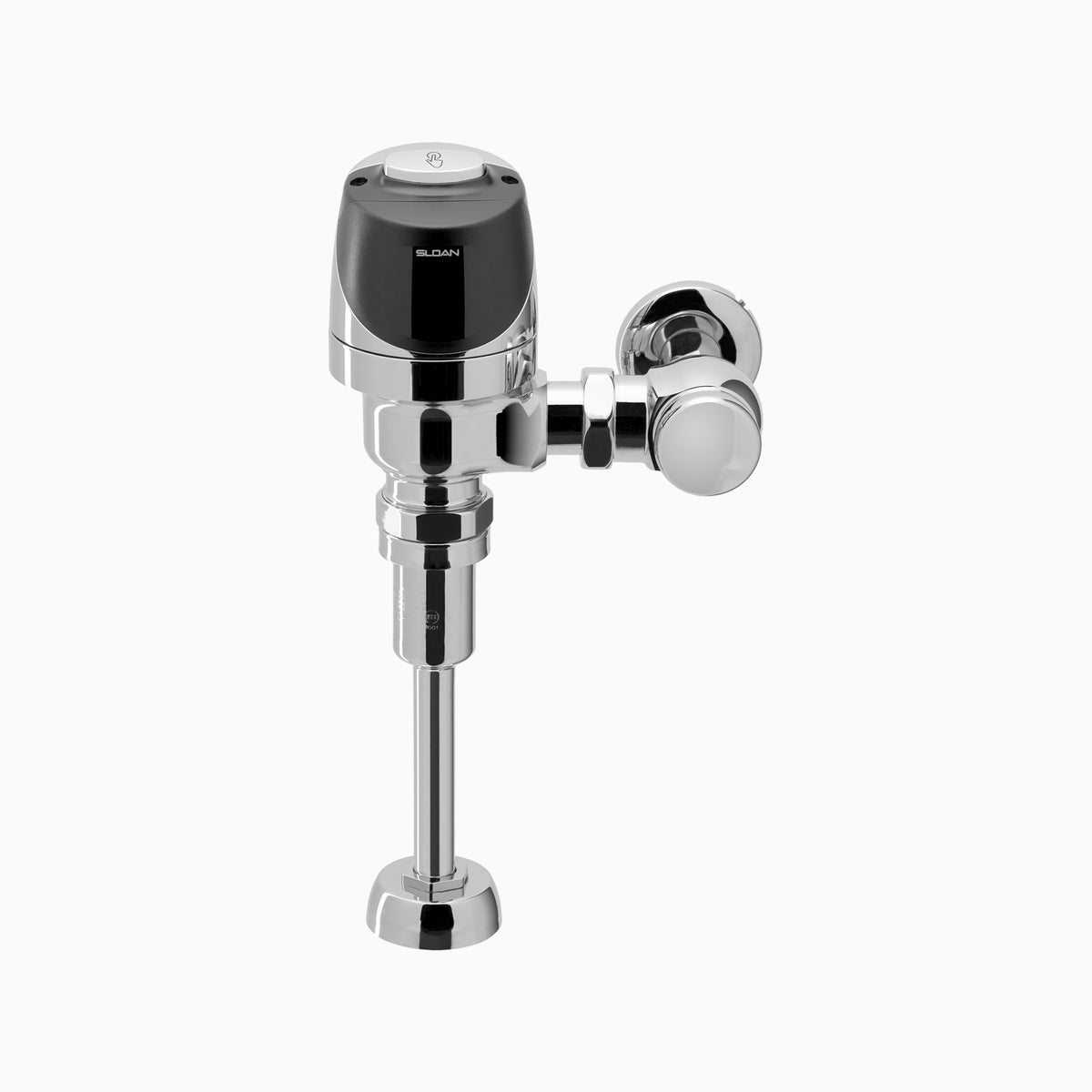

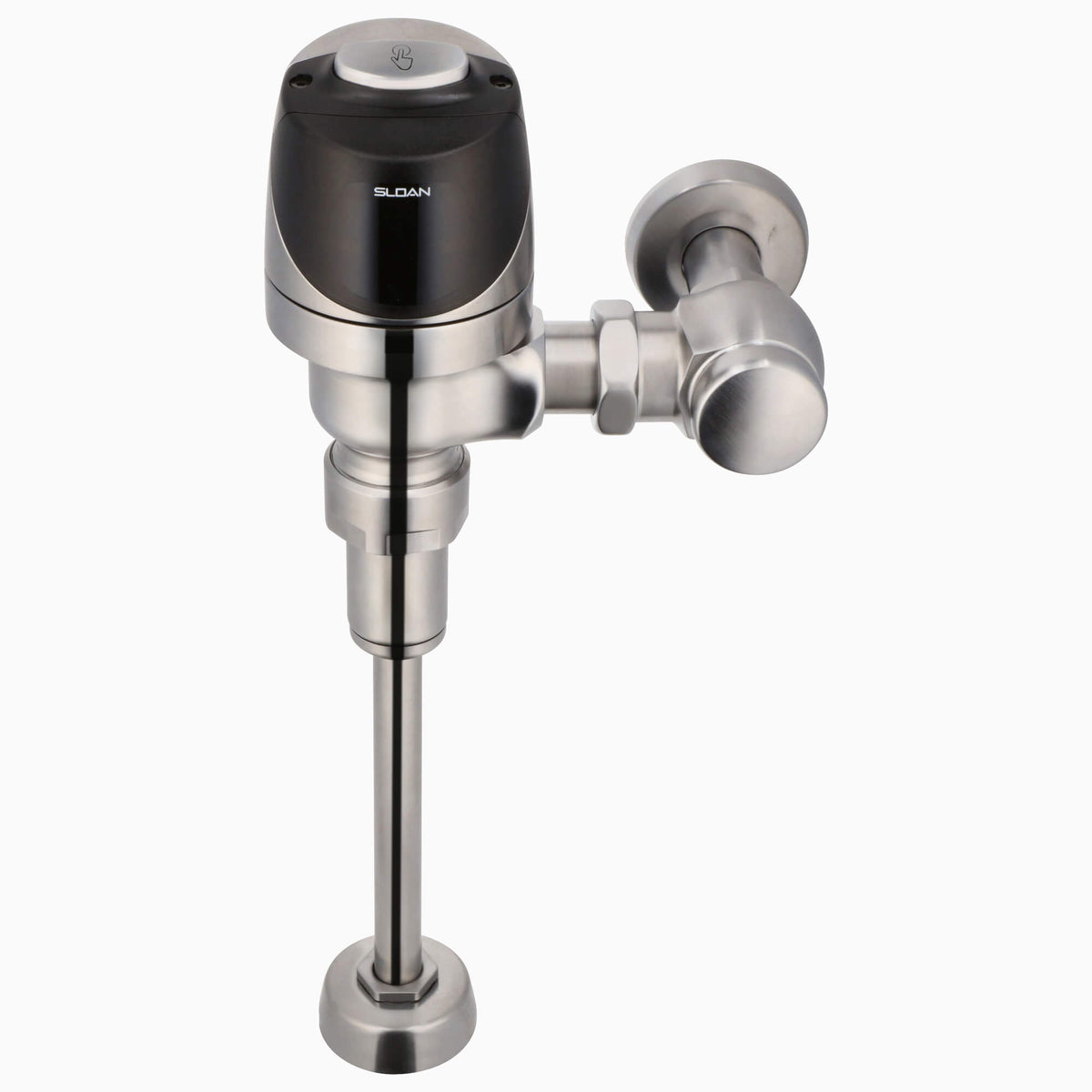

The Sloan ECOS 8186-0.125-SF-YK is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
ECOS 8186: Sensor urinal flushometer with .13 or .25 gpf efficiency. Infrared detection, 3-second delay, dezincification resistant. Compliant with ASSE 1037.
Options on this configuration: Solid Ring Pipe Support (YK). Sloan model number: ECOS 8186-0.125-SF-YK.
Features
- Water-efficient flush volume of either .13 gpf or .25 gpf
- Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- User-friendly, three-second flush delay
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: ECOS 8186-0.125-SF-YK
- Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 0.125
- Finish: Brushed Stainless
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: DC (Battery)
- Sensor Type: Infrared
- Override Type: Electrical Override
- Sensing Range (in): 15"-30"
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | ECOS 8186 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | Solid Ring Pipe Support (YK) | Fixture Served | Urinal |
| Body style | Exposed | Coating | Brushed Stainless |
| Cycle volume gal | 0.125 gal | Operating pressure min psi | 15 PSI |
| Rough in in | 11.5" | Spud connection | Top Spud |
| Override type | Electrical Override | Power source | DC (Battery) |
| Sensing range in | 15"-30" | Sensor type | Infrared |
Certifications & Standards
| ADA | Buy American Act |
| BABA | IAPMO |
| WaterSense | ASSE-1037 |
