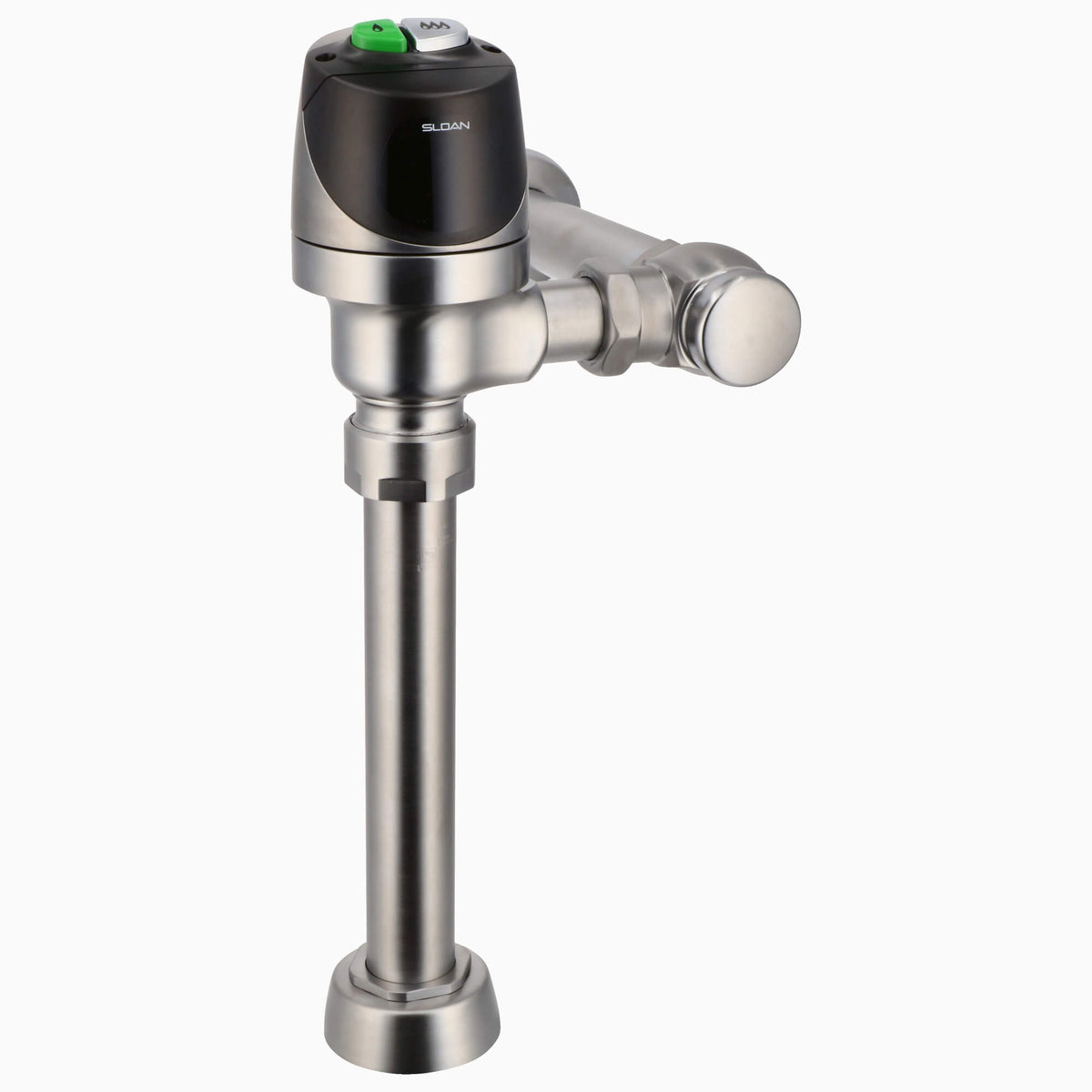

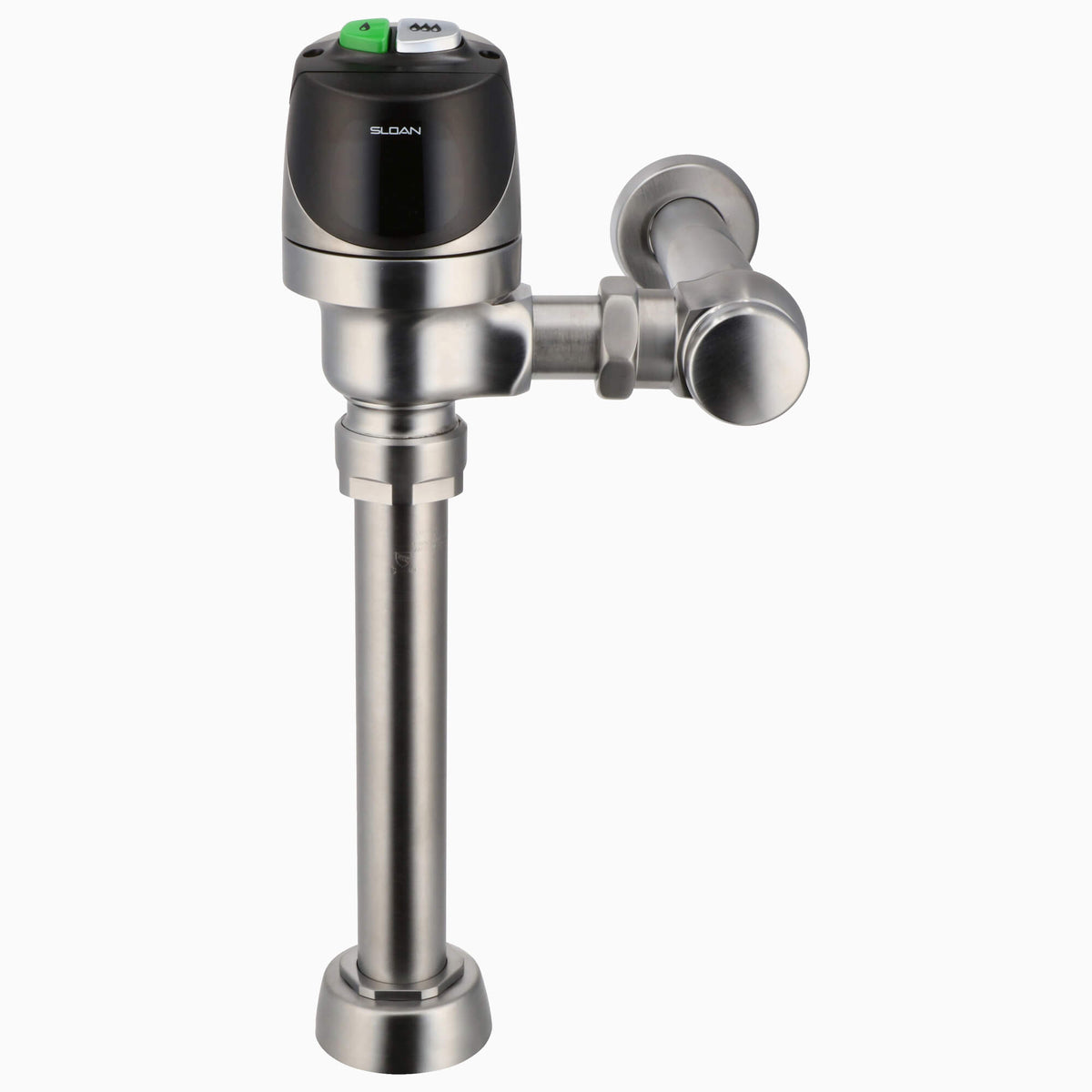

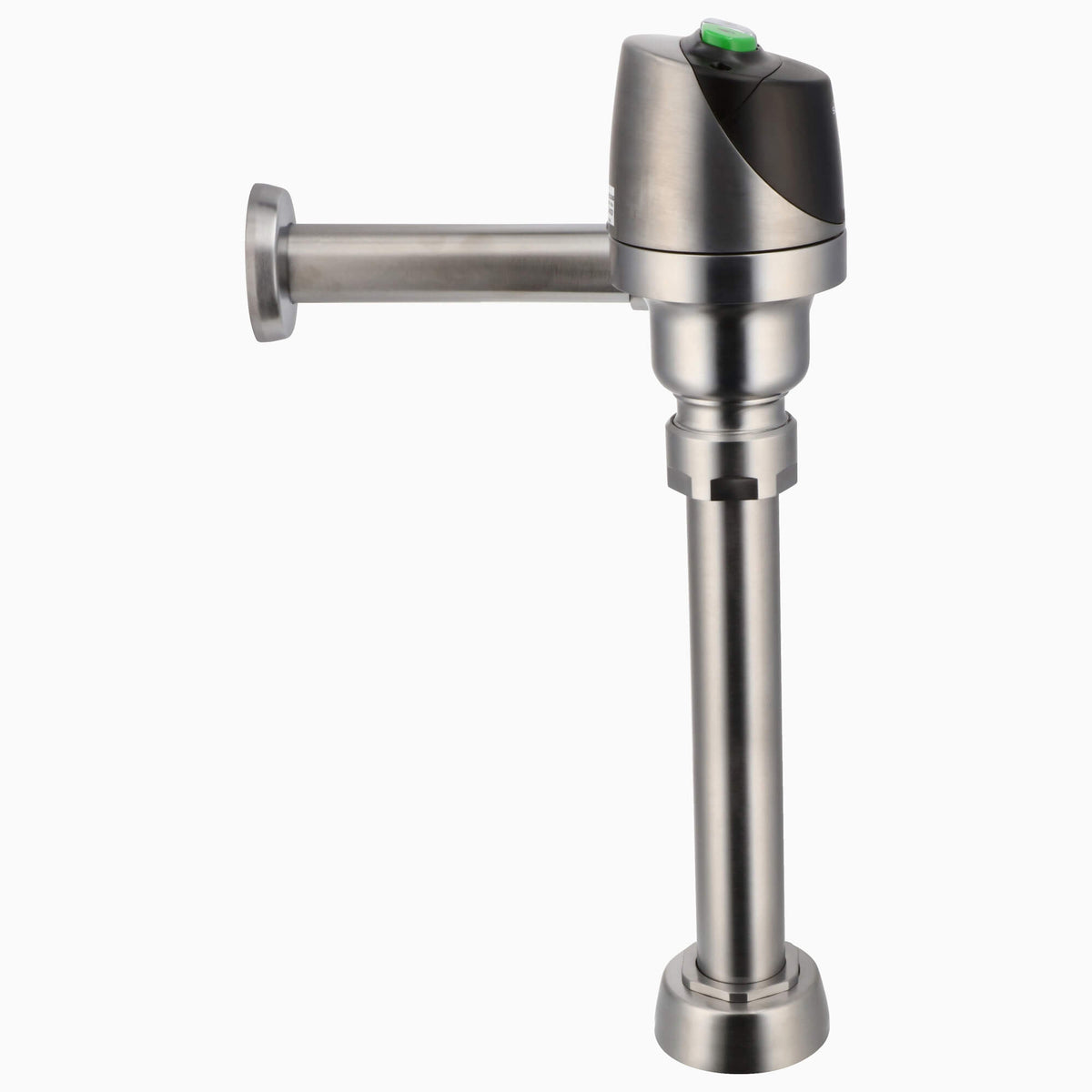

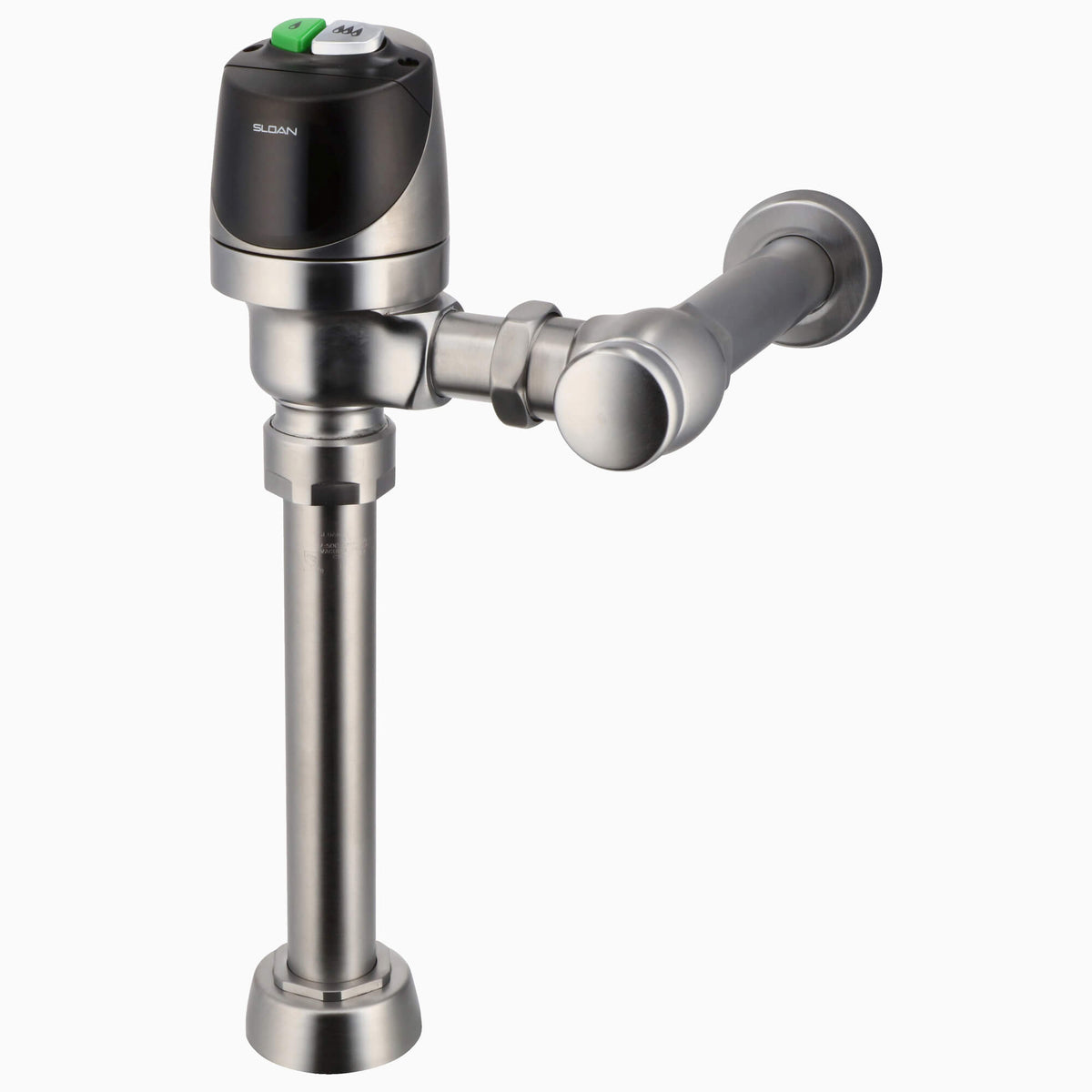

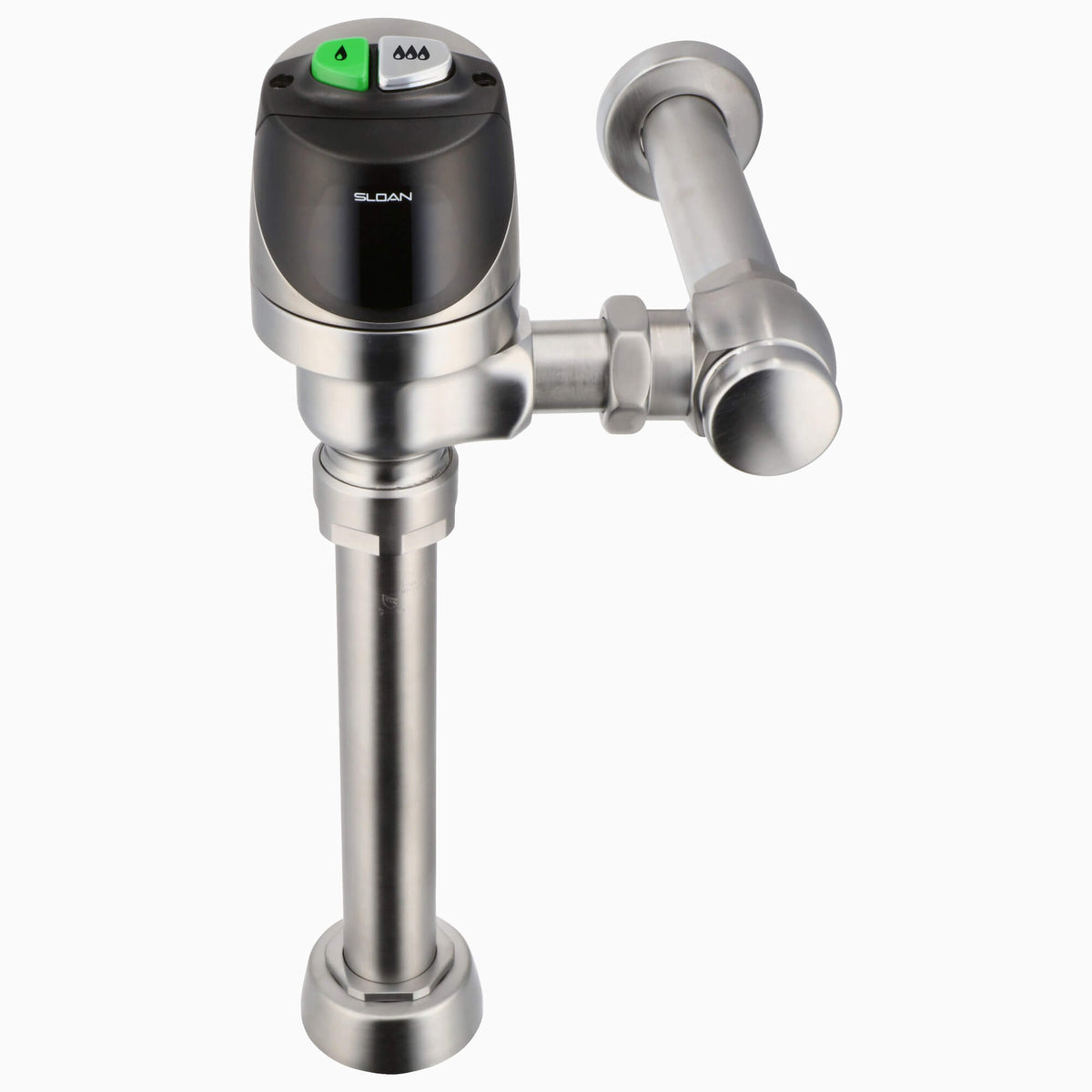

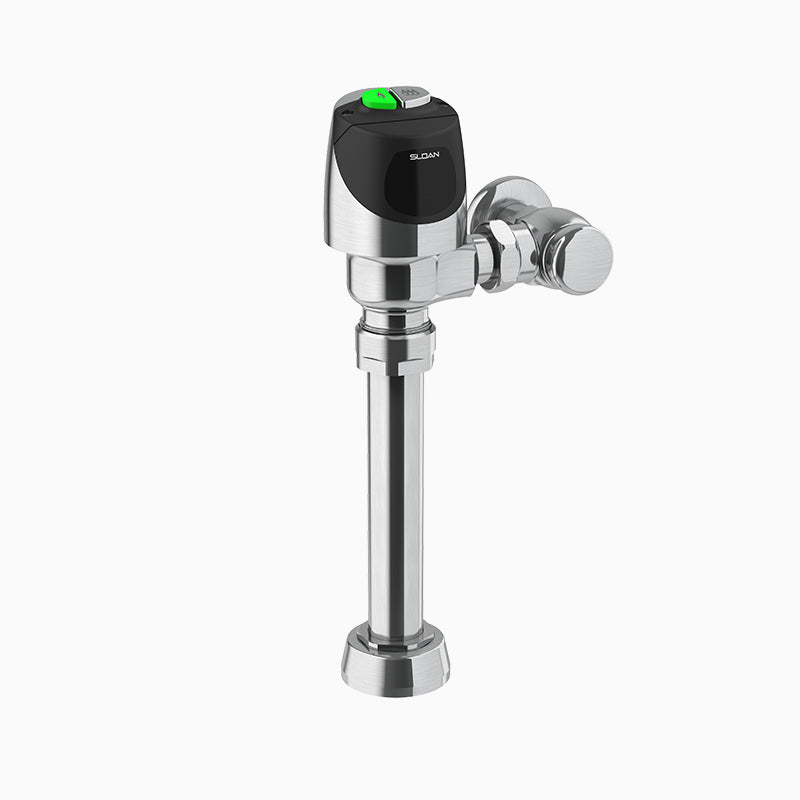

The Sloan ECOS 8111-1.28/1.1-SF is a sensor-operated diaphragm-type flush valve for a water closet. It features a semi-red brass body.
Sloan ECOS 8111 exposed sensor flushometer with lobular IR sensing, dezincification-resistant brass, and fixed metering for water conservation. EPA WaterSense Listed.
Options on this configuration: 1.28/1.1 gpf. Sloan model number: ECOS 8111-1.28/1.1-SF. Sloan's own price-list description: ECOS 8111-1.28/1.1 PVDSF.
Features
- 1.28/1.1 gpf, Brushed Stainless Finish, 1.5" Flush Connection, Fixture Connection Top Spud, Dual Flush, 1" Inlet, 1" Control Stop, Electrical Override, Battery, Infrared
- Deploys an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- User-friendly, three-second flush delay
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: ECOS 8111-1.28/1.1-SF
- Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Dual Flush: Yes
- Finish: Brushed Stainless
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: DC (Battery)
- Sensor Type: Infrared
- Override Type: Electrical Override
- Sensing Range (in): 22"-42"
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | ECOS 8111 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | 1.28/1.1 gpf | Fixture Served | Water Closet |
| Body style | Exposed | Coating | Brushed Stainless |
| Dual flush | Yes | Operating pressure min psi | 15 PSI |
| Rough in in | 11.5" | Spud connection | Top Spud |
| Override type | Electrical Override | Power source | DC (Battery) |
| Sensing range in | 22"-42" | Sensor type | Infrared |
Certifications & Standards
| ADA | Buy American Act |
| BABA | IAPMO |
| WaterSense | ASSE-1037 |
