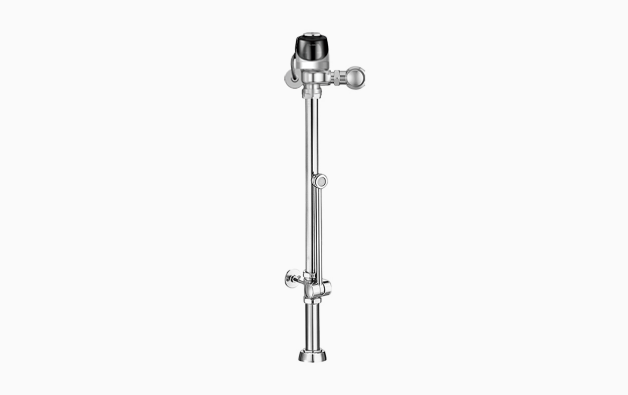

The Sloan ECOS BPW 8100-1.28-CP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Discover the ECOS BPW 8100 flushometer for commercial facilities. Reliable, compliant, and efficient. Enhance your restroom performance.
Options on this configuration: Hardwired (HW). Sloan model number: ECOS BPW 8100-1.28-CP.
Features
- 1.28 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Hardwired
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: ECOS BPW 8100-1.28-CP
- Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 34.375"
- Volume per Flush (gal): 1.28
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Hardwired AC
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | ECOS BPW 8100 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | Hardwired (HW) | Fixture Served | Water Closet |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 1.28 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 34.375" |
| Spud connection | Top Spud | Power source | Hardwired AC |
Certifications & Standards
| ADA | Buy American Act |
| BABA | IAPMO |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
|
| Series | ECOS BPW 8100
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 3/4"
|
| Outlet Size | 1-1/2"
| 3/4"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Sensor
| Sensor
|
| Certifications | ADA, Buy American Act, BABA, IAPMO, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
