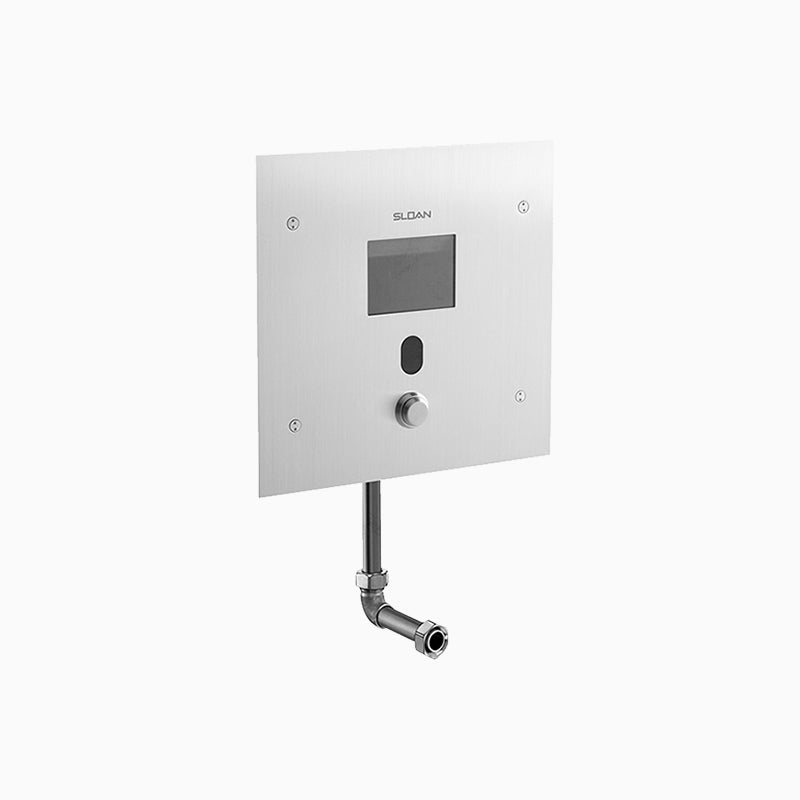

Sloan SOLIS 8195 Concealed Solar-Powered Sensor Urinal Flushometer (0.5 GPF) TMO, Less Wall Box

The Sloan SOLIS 8195-0.5-BSS-TMO-L/BOX is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.

SOLIS 8195 concealed sensor urinal flushometer meets ASSE 1037 standards. Ideal for commercial facilities. Durable semi-red brass construction.

Options on this configuration: Less Wall Box (L/BOX); Less Wall Box (SWB); True Mechanical Override (TMO); HYD. Sloan model number: SOLIS 8195-0.5-BSS-TMO-L/BOX. Sloan's own price-list description: SOLIS 8195-0.5 SWB (HYD) L/BOX.

Features

• 0.5 gpf, Stainless Steel Finish, Fixture Connection Rear Spud, Single Flush, True Mechanical Override, Solar, Less Wall Box Wall Box
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a rear spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible. It ships with a less wall box wall box.

How is it powered, and what happens in a power outage?

Solar-powered, with a battery back-up for low-light conditions. It has a true mechanical override, so it still flushes by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: SOLIS 8195-0.5-BSS-TMO-L/BOX
• Certifications: ADA, Buy American Act, IAPMO, WaterSense, UL, ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Spud Connection: Rear Spud
• Rough-In (in): 13.5"
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Stainless Steel
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Override Type: True Mechanical Override
• Wall Box Type: Less Wall Box
