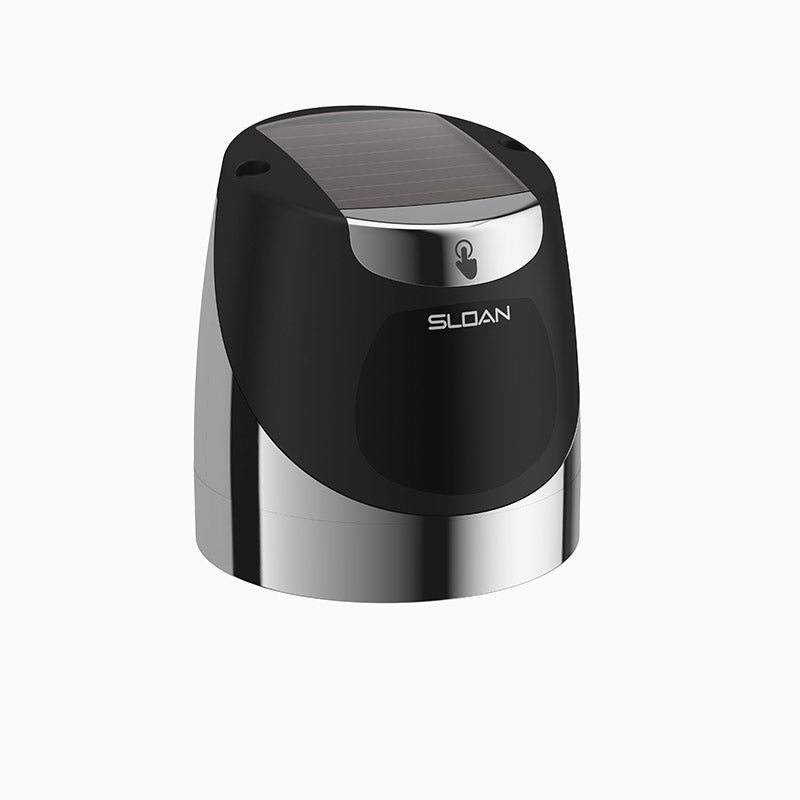

Sloan SOLIS RESS-U Solar-Powered Sensor Retrofit Kit for Urinal Flushometers, Adjustable Ground Joint for Tek Control Stop, Single Button

The Sloan SOLIS RESS-U-0.5-XDT-CP is a solar-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the SOLIS® Exposed Sensor Urinal Retrofit Flushometer, a cutting-edge solution designed to revolutionize your restroom facilities. The SOLIS RESS-U combines advanced technology with eco-friendly features to deliver exceptional performance and water conservation. This innovative retrofit conversion kit is compatible with Royal®, Sloan®, and Regal® flushometers, making it an ideal choice for upgrading existing installations. The SOLIS RESS-U utilizes solar-powered technology, harnessing energy from artificial indoor lighting to operate efficiently. With the ability to generate 100% power at 650 illuminance (lux), this flushometer ensures reliable performance while reducing energy consumption. For added peace of mind, the unit includes a backup power source consisting of four AA batteries. User-friendly and hygienic, the SOLIS RESS-U features a three-second flush delay and hands-free operation through its advanced infrared sensor. The multiple-focused, lobular sensing fields provide accurate high and low target detection, ensuring optimal flushing performance. The flushometer also incorporates a "Low Battery" flashing LED indicator, allowing for timely maintenance. Engineered for durability and reduced maintenance, the SOLIS RESS-U includes a PERMEX® synthetic rubber flex tube diaphragm with twin linear filtered bypass and vortex cleansing action. This innovative design, coupled with fixed metering bypass and no external volume adjustment, guarantees consistent water conservation without compromising performance. Experience the future of restroom technology with the SOLIS® Exposed Sensor Urinal Retrofit Flushometer, combining efficiency, sustainability, and user comfort in one remarkable package.

Options on this configuration: Adjustable Ground Joint for Tek Control Stop (XDT); SINGLE; BUTTON. Sloan model number: SOLIS RESS-U-0.5-XDT-CP. Sloan's own price-list description: SOLIS RESS-U-0.5-XDT SINGLE BUTTON.

Features

• 0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Adjustable Ground Joint for Tek Control Stop, Electrical Override, Solar
• Quiet, Exposed, SOLIS®, Solar Powered, Sensor Activated Urinal Flushometer Retrofit Conversion Kit for Royal®, Sloan® and Regal®
• User friendly three (3) second Flush Delay
• “Low Battery” Flashing LED
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• PERMEX® Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
• Diaphragm molded from PERMEX® Rubber Compound for Chloramine resistance

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Solar-powered, harvesting ambient light, with a battery back-up for low light.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• Control Stop: Adjustable Ground Joint for Tek
• MPN: SOLIS RESS-U-0.5-XDT-CP
• Certifications: ADA, Buy American Act, IAPMO
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
