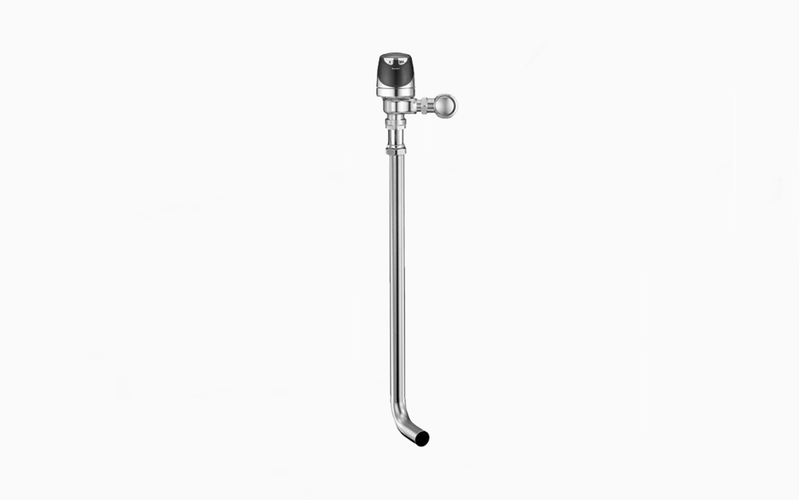

The Sloan SOLIS 8137-1.6/1.1-CP is a sensor-operated diaphragm-type flush valve for a water closet. It features a semi-red brass body.
Discover the SOLIS 8137: ADA-compliant, solar-powered flushometer for commercial squat toilets. Saves water with dual-flush technology. Enhances hygiene with hands-free operation.
Options on this configuration: 1.6/1.1 gpf. Sloan model number: SOLIS 8137-1.6/1.1-CP. Sloan's own price-list description: SOLIS 8137-1.6/1.1 DUAL FLUSH.
Features
- 1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush, Electrical Override, Solar
- ADA-compliant, exposed, solar-powered, sensor-operated dual-flush or single-slush flushometer for back inlet squat toilets
- Sensor assembly is powered by a solar cell that will harvest power from artificial indoor light (incandescent, fluorescent or LED) and use it as the energy source
- Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Automatically initiates a 1.1 gpf or 1.6 gpf flush based on how long user remains in sensor range
- User friendly three (3) second Flush Delay
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Solar-powered, with a battery back-up for low-light conditions.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Operation: Sensor
-
MPN: SOLIS 8137-1.6/1.1-CP
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 36"
-
Dual Flush: Yes
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: Solar
-
Sensor Type: Infrared
-
Override Type: Electrical Override
