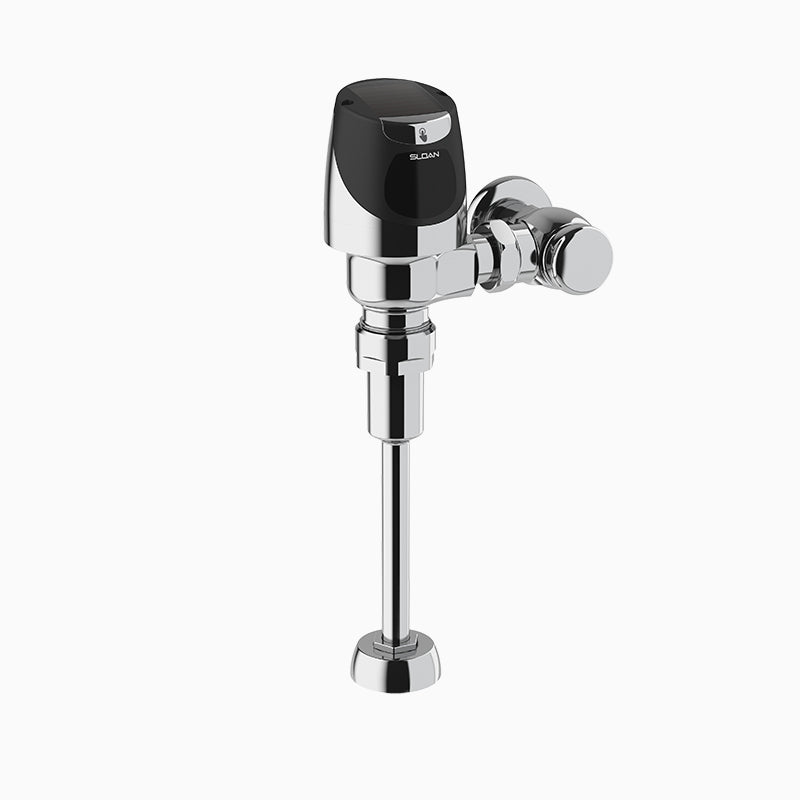

Sloan SOLIS 8186 Exposed Solar-Powered Sensor Urinal Flushometer (0.5 GPF), less Batteries Polished Chrome

The Sloan SOLIS 8186-0.5-CP is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Solar-powered flushometer with chloramine-resistant seals and infrared sensor. Ideal for commercial urinals. Conserves water with fixed metering bypass.

Options on this configuration: L/BATTERIES. Sloan model number: SOLIS 8186-0.5-CP. Sloan's own price-list description: SOLIS 8186-0.5 SINGLE FLUSH L/BATTERIES.

Features

• 0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar
• Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• User-friendly, three-second flush delay
• “Low Battery” Flashing LED
• High Copper, low zinc brass castings for dezincification resistance
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Solar-powered, with a battery back-up for low-light conditions.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• MPN: SOLIS 8186-0.5-CP
• Certifications: ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
