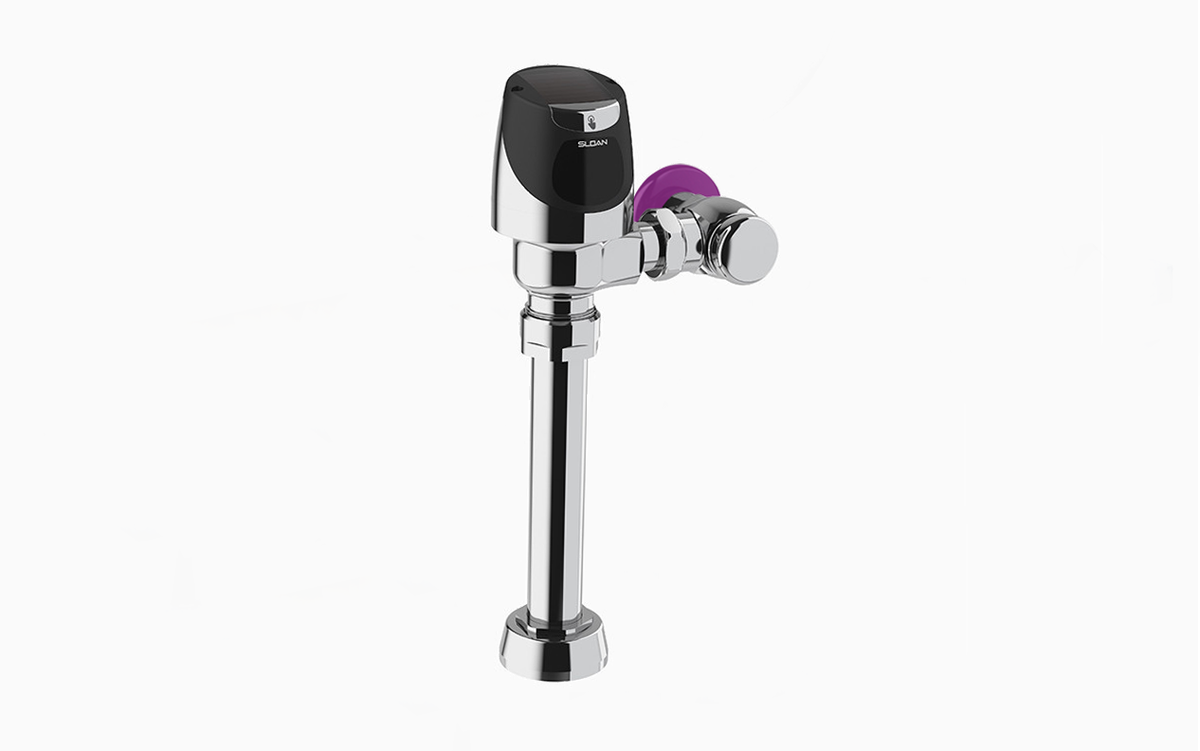

Sloan SOLIS 8111 RW Exposed Solar-Powered Sensor Water Closet Flushometer (1.1 GPF)

The Sloan SOLIS 8111 RW-1.1-CP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.1 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Solar-powered reclaimed water flushometer with PERMEX chloramine-resistant internals, purple ID components, and AA battery backup for commercial water closet applications.

Options on this configuration: RW. Sloan model number: SOLIS 8111 RW-1.1-CP. Sloan's own price-list description: SOLIS 8111-1.1 RW SINGLE FLUSH.

Features

• 1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar
• Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use
• All organic rubber has been replaced with synthetic compounds
• Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine resistance
• User friendly three (3) second Flush Delay
• Low Battery Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• State-of-the-art photovoltaic technology delivers solar operation
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Override button enables manual flushing if sensors power source fails
• High copper, low zinc brass castings for dezincification resistance
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.1 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Solar-powered, with a battery back-up for low-light conditions.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• MPN: SOLIS 8111 RW-1.1-CP
• Certifications: ADA, Buy American Act, IAPMO
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.1
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
