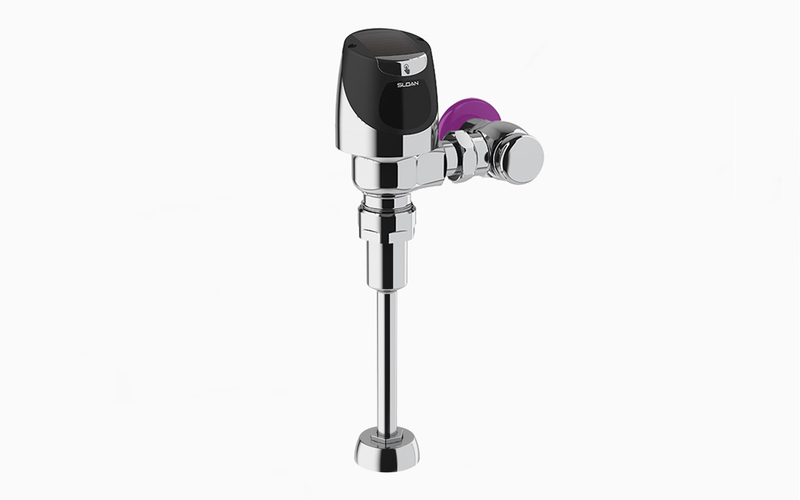

The Sloan SOLIS 8186 RW-0.125-CP is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Solar-powered flushometer for reclaimed water use. Chloramine-resistant components and purple indicators for easy identification. Battery backup included.
Options on this configuration: RW. Sloan model number: SOLIS 8186 RW-0.125-CP. Sloan's own price-list description: SOLIS 8186-0.125 RW SINGLE FLUSH.
Features
- 0.125 gpf, Polished Chrome Finish, Single Flush, Electrical Override, Solar
- Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use
- All organic rubber has been replaced with synthetic compounds
- Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
- Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine resistance
- User-friendly, three-second flush delay
- Low Battery Flashing LED
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
- Four (4) Size AA Battery Back-up Power Source
- Synthetic rubber seals for chloramine resistance
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Engineered Metal Cover with replaceable Lens Window
- ADA Compliant Sloan Solis Solar Powered Infrared Sensor for automatic No Hands operation
- 3/4 IPS screwdriver Bak-Chek angle stop with vandal resistant stop cap
- User-friendly, three-second flush delay
- High Copper, low zinc brass castings for dezincification resistance
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Solar-powered, with a battery back-up for low-light conditions.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and WaterSense.
Specifications
-
Type: Flushometer
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Sensor
-
MPN: SOLIS 8186 RW-0.125-CP
-
Certifications: ADA, Buy American Act, IAPMO, WaterSense
-
Fixture Served: Urinal
-
Body Style: Exposed
-
Rough-In (in): 11.5"
-
Volume per Flush (gal): 0.125
-
Dual Flush: No
-
Finish: Polished Chrome
-
Vandal Resistant: Yes
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: Solar
-
Power Supply Detail: 4x AA Batteries
-
Sensor Type: Infrared
-
Override Type: Electrical Override
