Similar products
Specifications
Description

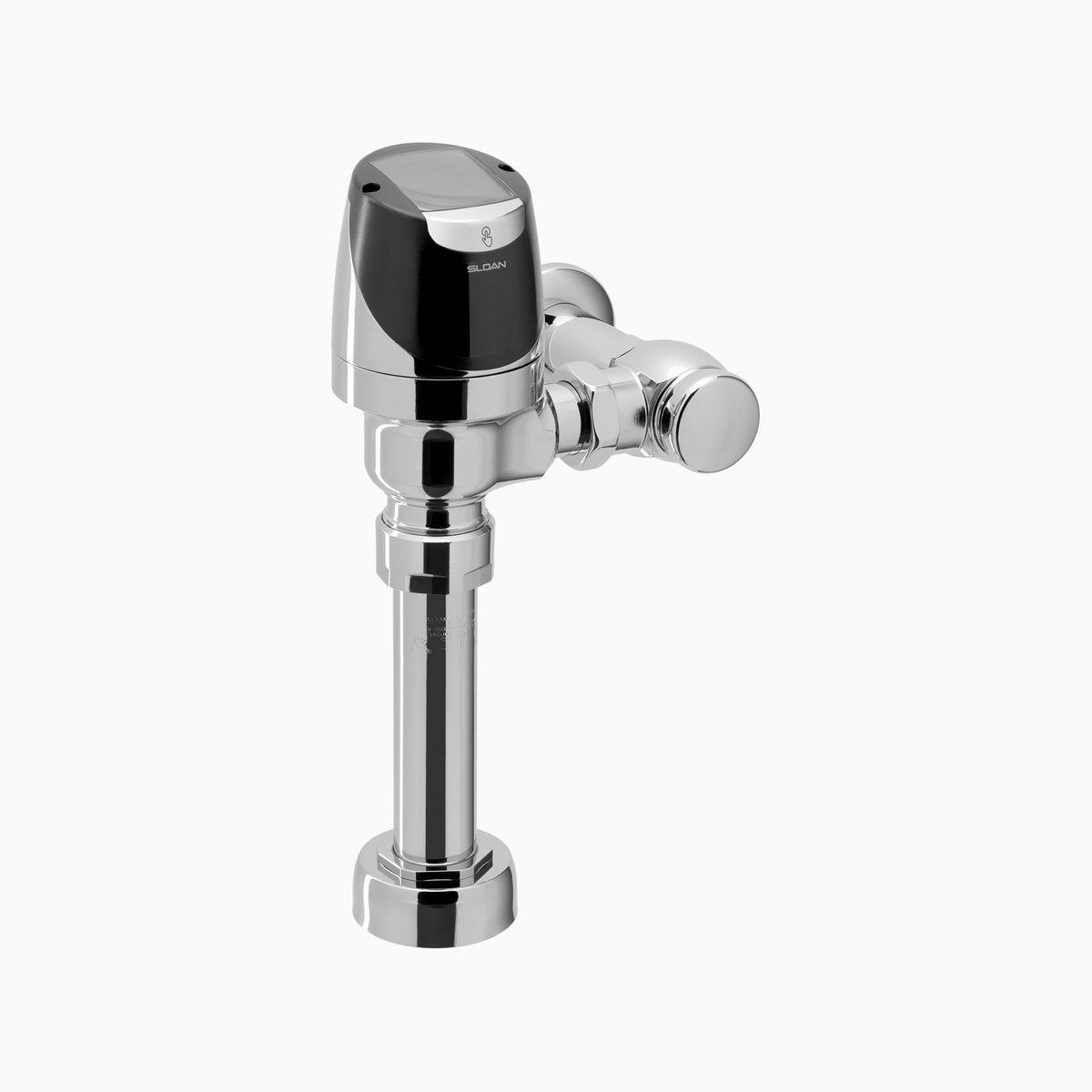

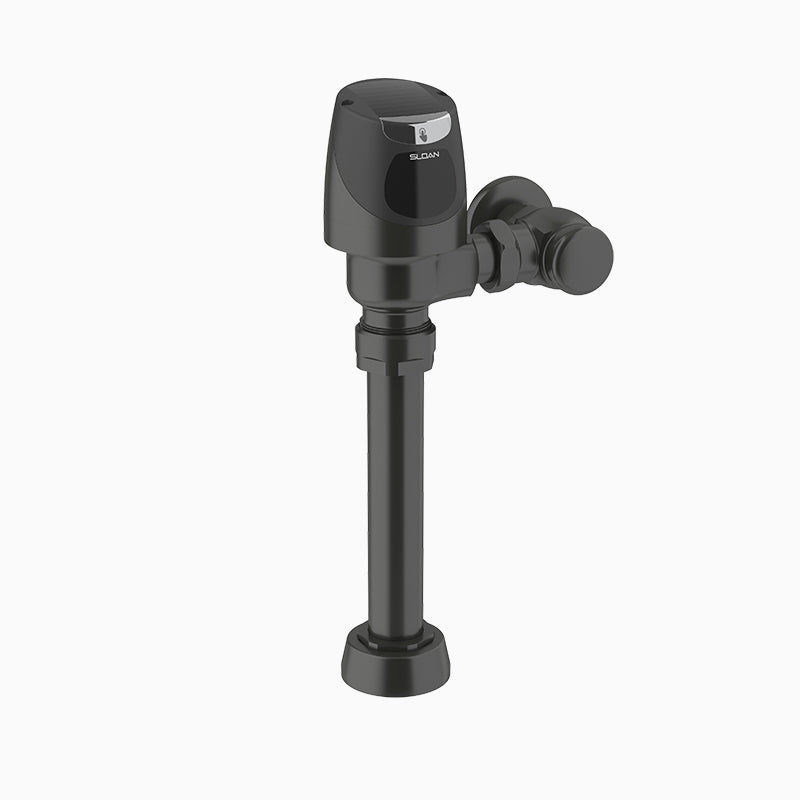

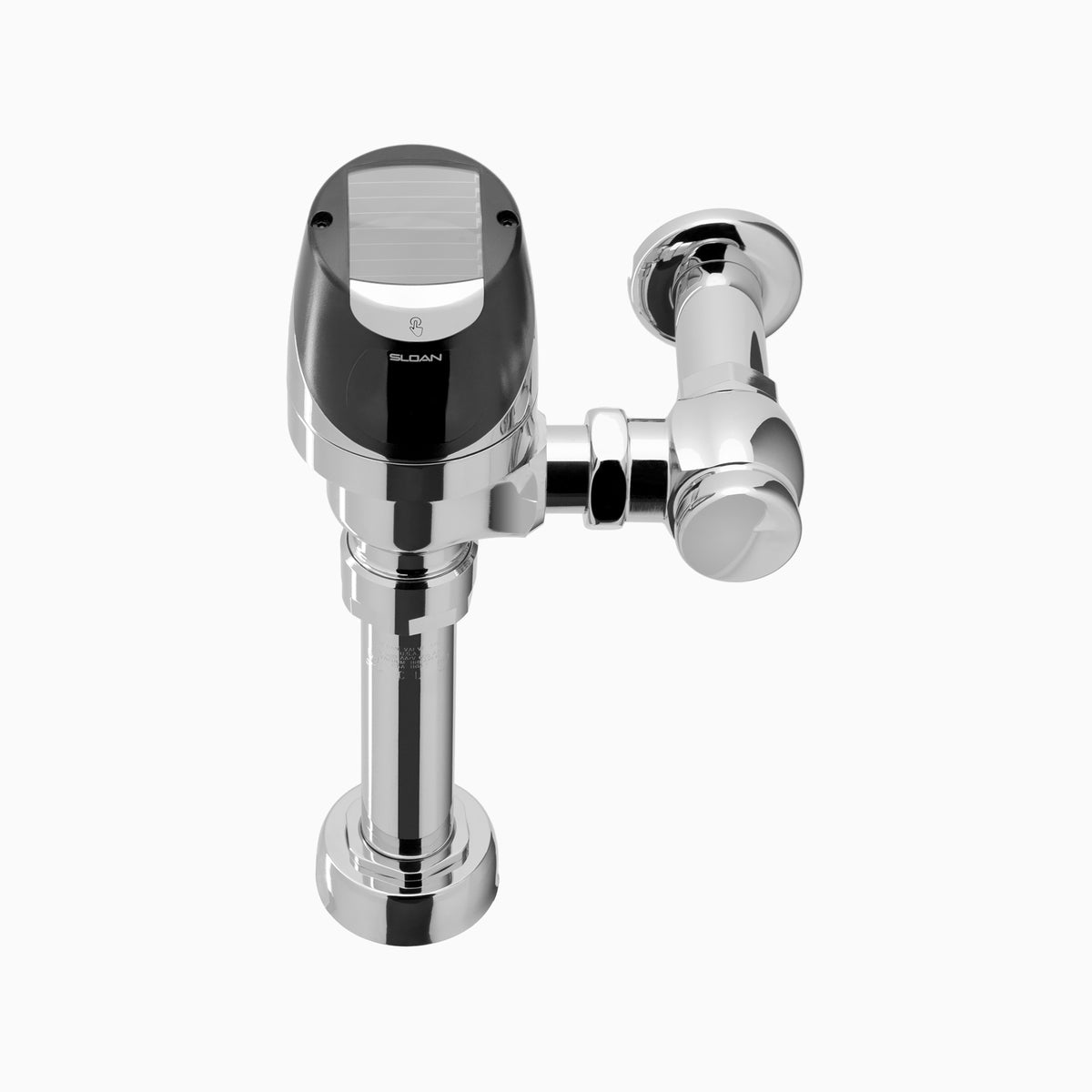

The Sloan Solis 8111-1.1 is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.1 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Solar-powered sensor flushometer with photovoltaic technology, AA battery backup, fixed metering bypass, and a Flex Tube Diaphragm for reduced maintenance.
Features
- User friendly three (3) second Flush Delay
- “Low Battery” Flashing LED
- Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
- Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Four (4) Size AA Battery Back-up Power Source
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- High copper, low zinc brass castings for dezincification resistance
- Sweat solder adapter with cover tube and cast wall flange with set screw
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Valve body, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.1 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Solar-powered, with a battery back-up for low-light conditions.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Sensor
- MPN: Solis 8111-1.1
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Volume per Flush (gal): 1.1
- Finish: Graphite
- Power Source: Solar
- Power Supply Detail: 4x AA Batteries
- Sensor Type: Infrared
Details
| Series | SOLIS 8111 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Sensor |
| Fixture Served | Water Closet | Body style | Exposed |
| Coating | Graphite | Cycle volume gal | 1.1 gal |
| Power source | Solar | Power supply detail | 4x AA Batteries |
| Sensor type | Infrared | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
| Urinal
| Urinal
| Urinal
| Water Closet
|
| Series | SOLIS 8111
| SLOAN 8186
| SOLIS 8186
| SOLIS 8186
| SOLIS 8186
| SOLIS 8111
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Inlet Size | — | 3/4"
| 3/4"
| 3/4"
| 3/4"
| 1"
|
| Outlet Size | — | 3/4"
| 3/4"
| 3/4"
| 3/4"
| 1-1/2"
|
| Body Material | — | Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
| PERMEX Synthetic Rubber Diaphragm
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, ASSE-1037
|
| Options | — | — | Carbon Neutral (CN)
| Carbon Neutral (CN)
| Carbon Neutral (CN)
| Carbon Neutral (CN), 1.6/1.1 gpf
|
