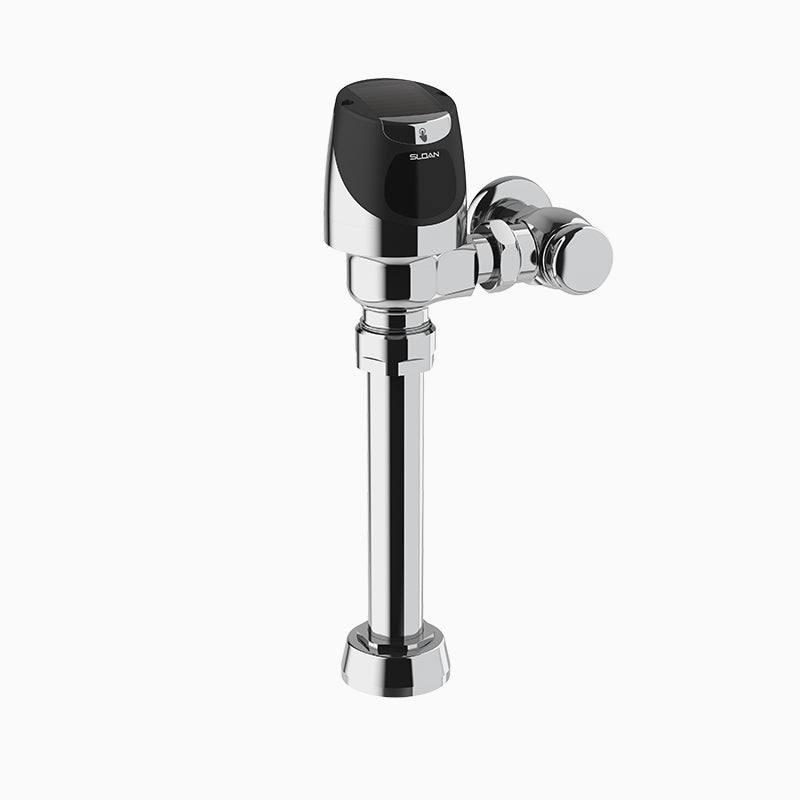

Sloan SOLIS 8111 SMT Solar-Powered Sensor Retrofit Kit for Water Closet Flushometers, SKU 33700017

The Sloan SOLIS 8111 SMT-SMT-1.28-CP is a solar-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan SOLIS 8111 SMT solar powered exposed sensor flushometer with AA battery backup, lobular IR sensing, and fixed metering bypass. ADA and WaterSense listed.

Options on this configuration: T Variant Flush Connection (T); Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SOLIS 8111 SMT-SMT-1.28-CP.

Features

• 1.28 gpf, SC Argus® Pro Compatible, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, 1.5" Flush Connection, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar, Infrared, 10.5" Vacuum Breaker
• Quiet, Exposed, Sloan Solis® Single Flush, Solar Powered, Sensor Activated Closet Smart Flushometer
• User friendly three (3) second Flush Delay
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source with “Low Battery” Flashing LED
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flushometer operates normally when not connected to the SC Argus® system
• IOT Smart Capabilities- Compatible with Sloan’s SC Argus® Pro smart restroom system for wireless remote management and monitoring
• Provides detailed product information, image, model, total activations, total operating hours, location room
• Automatically sends usage data, battery life, product health information
• Allows for remote setting changes and line flushes via SC Argus® Pro
• Requires subscription to SC Argus® Pro SaaS

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Solar-powered, harvesting ambient light, with a battery back-up for low light.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: SOLIS 8111 SMT-SMT-1.28-CP
• Certifications: ADA, Buy American Act, IAPMO, FCC, WaterSense
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Polished Chrome
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: IoT (SC Argus Pro)
• Fits Brand: Sloan
• Kit Type: SMT (IoT) Retrofit Kit
