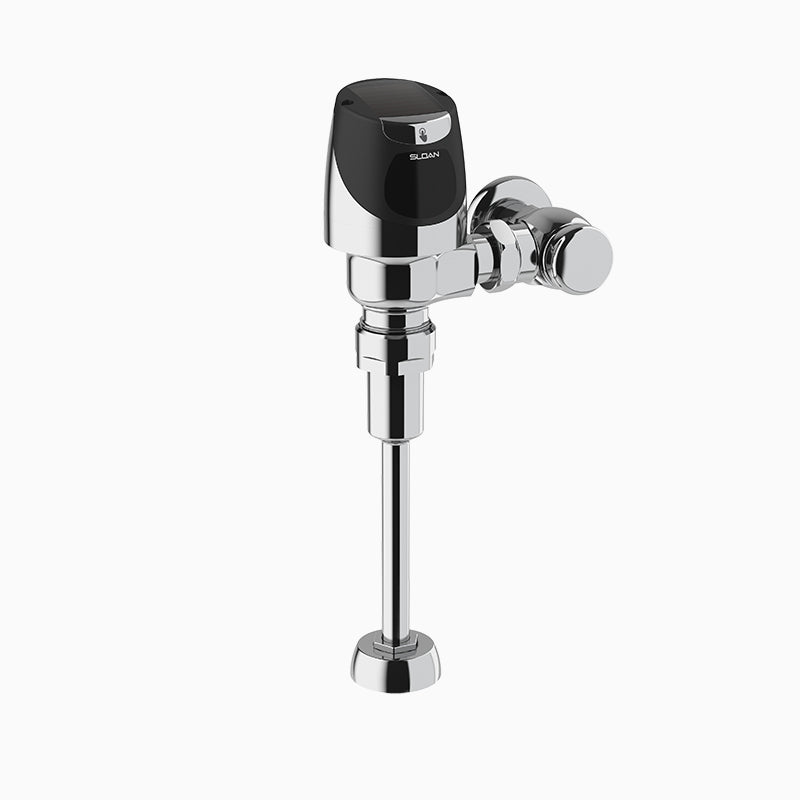

Sloan SOLIS 8186 SMT Solar-Powered Sensor Retrofit Kit for Urinal Flushometers, SKU 33700014

The Sloan SOLIS 8186 SMT-SMT-0.5-CP is a solar-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Solar-powered exposed urinal flushometer with infrared sensing, AA battery backup, fixed metering bypass, and WaterSense listing for commercial installs.

Options on this configuration: Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SOLIS 8186 SMT-SMT-0.5-CP.

Features

• 0.5 gpf, SC Argus® Pro Compatible, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, 0.75" Flush Connection, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar, Infrared, 10.5" Vacuum Breaker
• Quiet, Exposed, Sloan Solis® Single Flush, Solar Powered, Sensor Activated Urinal Flushometer
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source with “Low Battery” Flashing LED
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• High copper, low zinc brass castings for dezincification resistance
• Flushometer operates normally when not connected to the SC Argus® Pro system
• IOT Smart Capabilities- Compatible with Sloan’s SC Argus® Pro smart restroom system for wireless remote management and monitoring
• Provides detailed product information, image, model, total activations, total operating hours, location room
• Automatically sends usage data, battery life, product health information
• Allows for remote setting changes and line flushes via SC Argus® Pro
• Requires subscription to SC Argus® Pro SaaS

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Solar-powered, harvesting ambient light, with a battery back-up for low light.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: SOLIS 8186 SMT-SMT-0.5-CP
• Certifications: ADA, Buy American Act, IAPMO, FCC, WaterSense
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Polished Chrome
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: IoT (SC Argus Pro)
• Fits Brand: Sloan
• Kit Type: SMT (IoT) Retrofit Kit
