Description

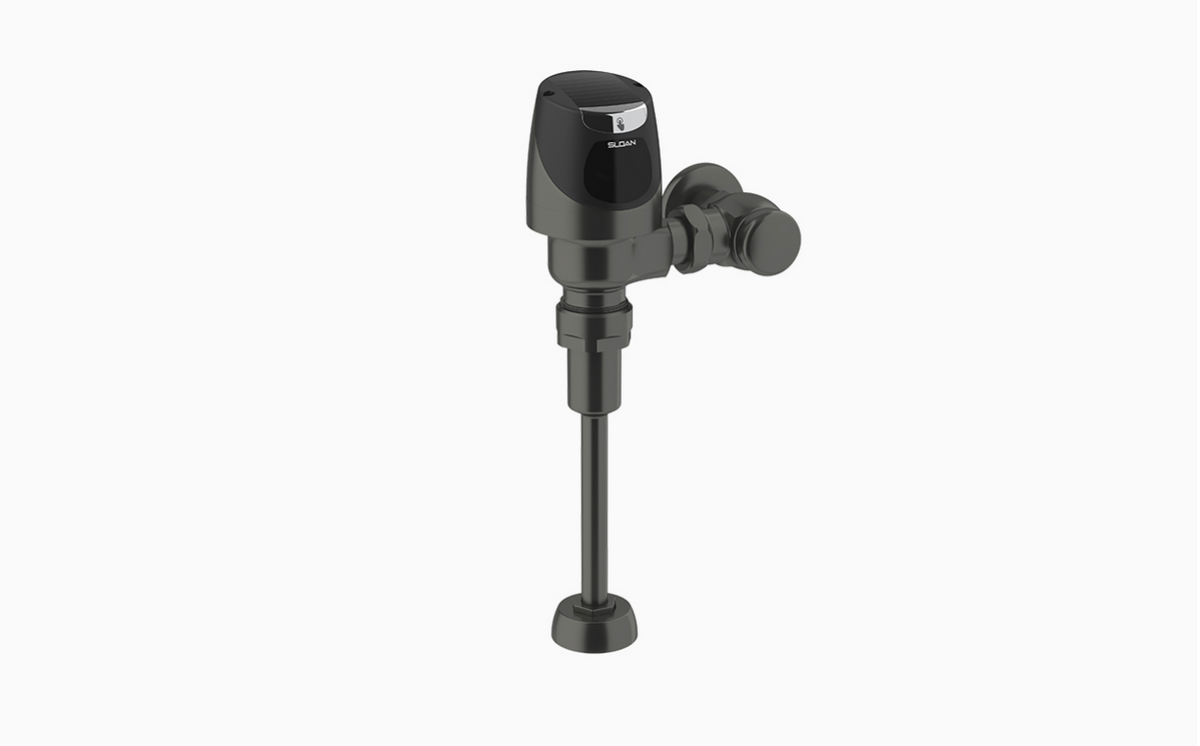

The Sloan SOLIS 8186 BT-0.5-GR is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Wireless flushometer with real-time diagnostics and adjustable settings via Sloan Connect App. Solar-powered with battery backup. Explore advanced water-saving features.
Base configuration: no option suffixes on this model number (SOLIS 8186 BT-0.5-GR).
Features
- 0.5 gpf, Graphite Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar
- Wireless connected device for real time diagnostic and adjustable product settings
- Sloan Connect App® readily available for smart phone and tablet devices
- “Low Battery” Flashing LED
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
- Four (4) Size AA Battery Back-up Power Source
- Synthetic rubber seals for chloramine resistance
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Engineered Metal Cover with replaceable Lens Window
- ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
- 3/4” IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap
- High Copper, low zinc brass castings for dezincification resistance
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Solar-powered, with a battery back-up for low-light conditions.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: SOLIS 8186 BT-0.5-GR
- Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 0.5
- Dual Flush: No
- Finish: Graphite
- Vandal Resistant: Yes
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Solar
- Power Supply Detail: 4x AA Batteries
- Sensor Type: Infrared
- Override Type: Electrical Override
- Connectivity: Bluetooth
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | SOLIS 8186 BT | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Fixture Served | Urinal | Body style | Exposed |
| Coating | Graphite | Cycle volume gal | 0.5 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 11.5" | Spud connection | Top Spud |
| Vandal resistant | Yes | Connectivity | Bluetooth |
| Override type | Electrical Override | Power source | Solar |
| Power supply detail | 4x AA Batteries | Sensor type | Infrared |
Certifications & Standards
| ADA | Buy American Act |
| BABA | IAPMO |
| WaterSense | ASSE-1037 |
