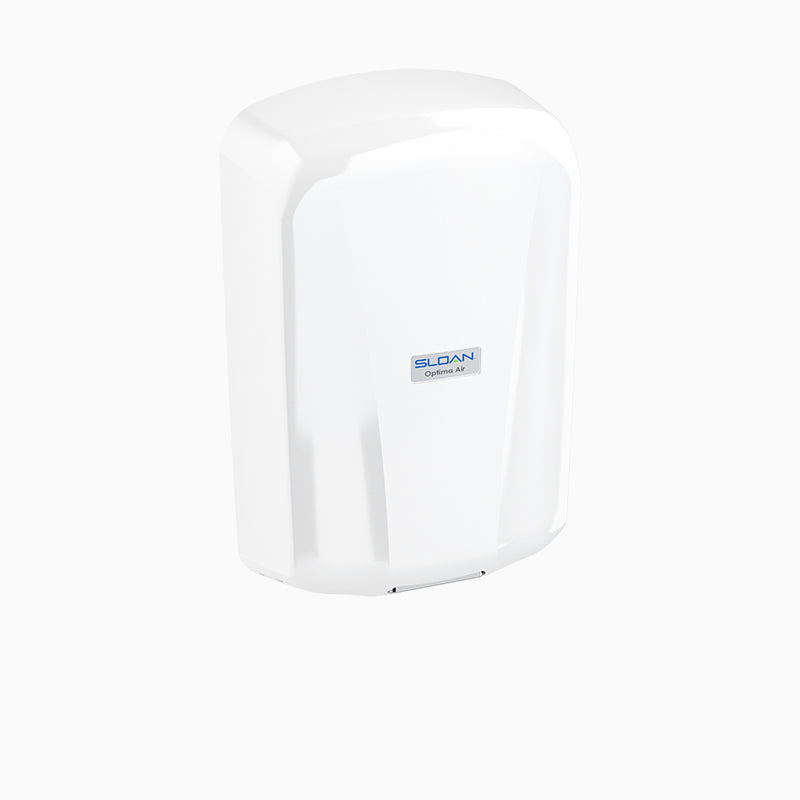

The Sloan EHD-702 is a sensor-operated, 208/277V wall-mounted hand dryer.
Features
- EHD-702, 208/277V
- Hygienic hand drying solution, 35-second lockout feature if hands are not removed
- 95% cost savings vs. paper towels
- Electric Specifications: 208–277V 5.6 – 6.2A
- Meets ADA requirements without the need of a recess kit
- Adjustable speed and sound (High-Low), Adjustable Heat (High-Low-Off)
- Vandal resistant cover design, Virtually maintenance free
- Available in Polished White and Brushed Nickel
- Weight: 8-10 lbs.
- Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station
- Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
- Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
- Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet)
- Includes: Wall Guards (White, Black, Stainless)
Common Questions
- What electrical service does this dryer need?
- 208/277V, 3.6-4.0 Amps, hardwired connection.
- What size circuit breaker do I need?
- Size the circuit to the full-load draw of 4.0 amps.
Specifications
-
Type: Hand Dryer
-
MPN: EHD-702
-
Certifications: Buy American Act, C-UL
-
Mount Type: Wall-Mount
-
Finish: Polished White
-
Electrical Requirement: 208/277V, 3.6-4.0 Amps
-
Full Load Amps: 4.0
-
Vandal Resistant: Yes
-
Overall Width (in): 9.156
-
Overall Height (in): 13.938
