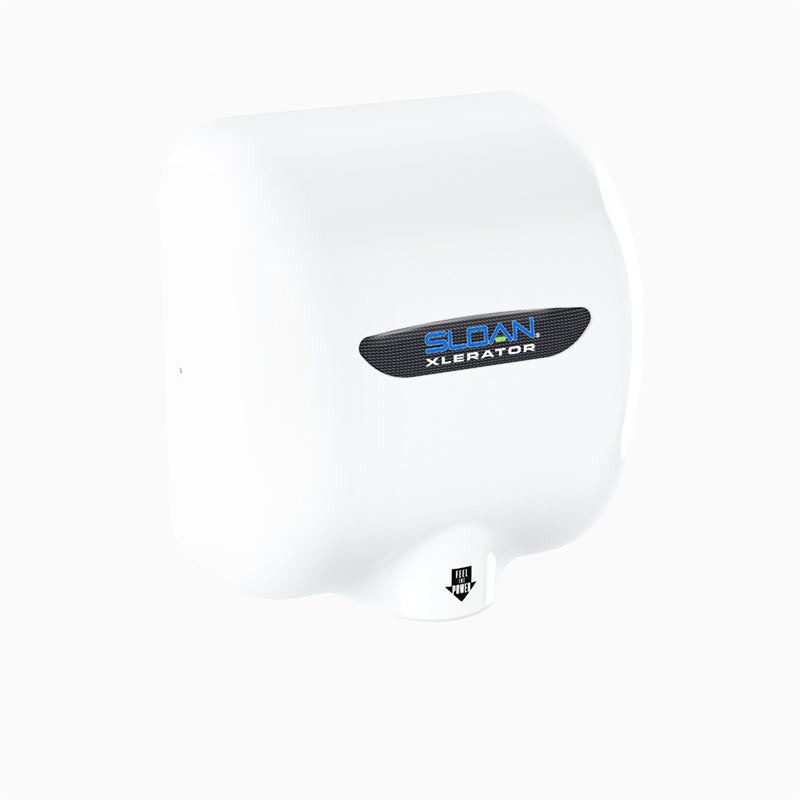

The Sloan EHD-502-HEPA is a sensor-operated, 208/277V wall-mounted hand dryer. It features a zinc alloy body.
Features
- EHD-502, HEPA, 208/277V
- Available with HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air
- Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
- Residual moisture is evaporated with a warm stream of air up to 135°F/57°C
- One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
- 95% cost savings vs. paper towels
- Can be easily positioned to comply with ADA requirements or for juvenile height
- Series commutated, through-flow discharge, vacuum type motor/blower combination
- Air velocity of 16,000 LFM (linear feet per minute) at an outlet temperature of 135°F/57°C at a 72°F/22°C ambient room temperature
- Heating element constructed of Nichrome wire and protected by an automatic resetting thermostat
- One piece heavy-duty rib reinforced die cast zinc alloy housing
- Bright chrome plate or chip-proof electrostatically-applied epoxy finish, available in Polished White, Matte White, Polished Chrome, Brushed Nickel and Graphite
- Tamper-proof cover fasteners are included, Virtually maintenance free
- Decibel Rating of 78-80 dB
- 8 second dry time, Hygienic hand dryer solution
- Adjustable speed, sound and heat control
- Available with Recess Kit for ADA compliance
- Includes: HEPA
Common Questions
- What electrical service does this dryer need?
- 208/277V, 5.6-6.2 Amps, hardwired connection.
- What size circuit breaker do I need?
- Size the circuit to the full-load draw of 6.2 amps.
- Does this dryer include HEPA filtration?
- Yes, this model ships with a HEPA filter.
Specifications
-
Type: Hand Dryer
-
Body Material: Zinc Alloy
-
MPN: EHD-502-HEPA
-
Certifications: Buy American Act, C-UL
-
Mount Type: Wall-Mount
-
Finish: Polished White
-
Electrical Requirement: 208/277V, 5.6-6.2 Amps
-
Full Load Amps: 6.2
-
Overall Width (in): 11.75
-
Overall Height (in): 6.688
