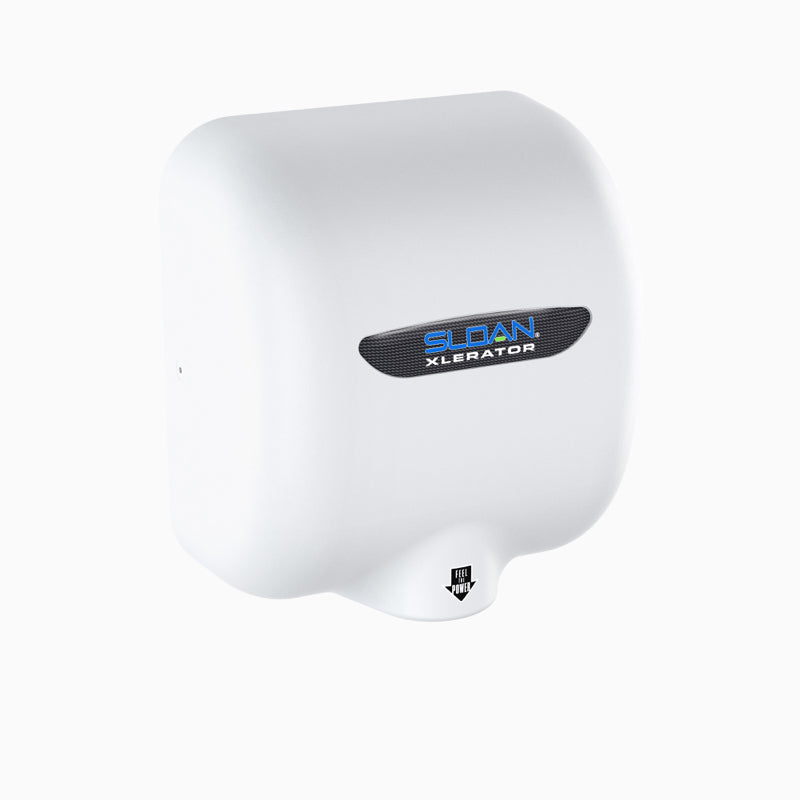

Sloan XLERATOR EHD-501 Hand Dryer, 110/120V, HEPA, Matte White

The Sloan EHD-501-HEPA is a sensor-operated, 110/120V wall-mounted hand dryer. It features a zinc alloy body.

The EHD-501 Xlerator Hand Dryer automatically operates by means of an infrared optical sensor with a 35 second lockout feature. It activates a strong controlled air blast. Residual moisture is evaporated with a warm steam of air up to 135°F/57°C. One piece heavy duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments. 95% cost savings vs. paper towels and can be easily positioned to comply with ADA requirements or for juvenile height. The EHD-501 is a powerful yet sound suppressing hand dryer that allows for an average eight second dry time. In addition to the many features of the EHD-501, the dryer also has adjustable speed along with sound and heat control, allowing you to optimize the dryer to best fit your commercial application. The EHD-501 is also available in a variety of different colors, including Graphite, Brushed Nickel, Polished White, Matte White and Polished Chrome.

Features

• EHD-501, HEPA, 110/120V
• Available with HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air
• 8 second dry time, Weight: 15-17 lbs.
• 95% cost savings vs. paper towels
• Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).
• Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
• Can be easily positioned to comply with ADA requirements or for juvenile height
• Vandal resistant cover design, Virtually maintenance free
• Electric Specifications: 110-120V – 11.3-12.2 Amps, 1240-1450 Watts, 50/60 Hz, can install multiple units on one circuit
• Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
• One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
• Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.
• Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
• Includes: Recess kit for ADA compliance
• Includes: Noise reduction nozzle
• Includes: Wall Guards (White, Black, Stainless)
• Includes: XChanger Paper Towel Retrofit Kit either ADA height or standard height
• Includes: HEPA

Common Questions

What electrical service does this dryer need?

110/120V, 11.3-12.2 Amps, hardwired connection.

What size circuit breaker do I need?

Size the circuit to the full-load draw of 12.2 amps.

Does this dryer include HEPA filtration?

Yes, this model ships with a HEPA filter.

Specifications

• Type: Hand Dryer
• Body Material: Zinc Alloy
• MPN: EHD-501-HEPA
• Certifications: Buy American Act, C-UL
• Mount Type: Wall-Mount
• Finish: Matte White
• Electrical Requirement: 110/120V, 11.3-12.2 Amps
• Rated Watts: 1500
• Full Load Amps: 12.2
• Vandal Resistant: Yes
• Overall Width (in): 11.75
• Overall Height (in): 12.688
