Specifications
Description

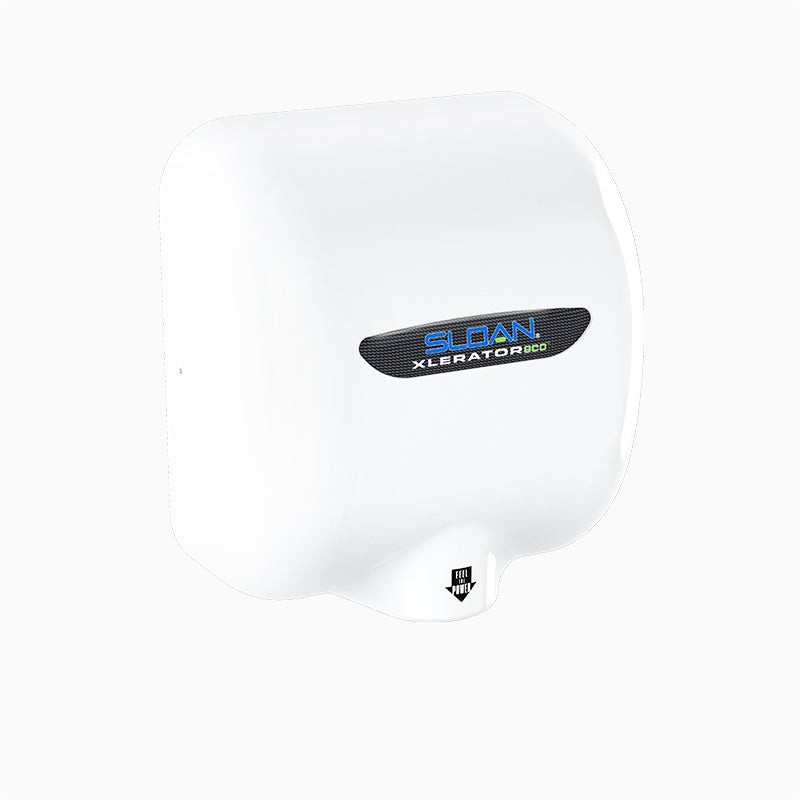

The Sloan EHD-502-ECO is a sensor-operated, 208/277V wall-mounted hand dryer. It features a zinc alloy body.
Features
- EHD-502-ECO, 208/277V
- Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
- Residual moisture is evaporated with a warm stream of air up to 135°F/57°C
- One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
- 95% cost savings vs. paper towels
- Can be easily positioned to comply with ADA requirements or for juvenile height
- Hygienic hand dryer solution, 10 second dry time
- Available with Recess Kit for ADA compliance
- Can install multiple units on one circuit
- Virtually maintenance free
- Includes: ECO
Common Questions
- What electrical service does this dryer need?
- 208/277V, 2.0-2.2 Amps, hardwired connection.
- What size circuit breaker do I need?
- Size the circuit to the full-load draw of 2.2 amps.
Specifications
- Type: Hand Dryer
- Body Material: Zinc Alloy
- MPN: EHD-502-ECO
- Certifications: Buy American Act, C-UL
- Mount Type: Wall-Mount
- Finish: Polished White
- Electrical Requirement: 208/277V, 2.0-2.2 Amps
- Full Load Amps: 2.2
- Overall Width (in): 11.75
- Overall Height (in): 6.688
Details
| Series | EHD-502-ECO | Device Type | Hand Dryer |
| Body Material | Zinc Alloy | Coating | Polished White |
| Electrical requirement | 208/277V, 2.0-2.2 Amps | Full load amps | 2.2 |
| Mount type | Wall-Mount | Overall height in | 6.688 in |
| Overall width in | 11.75 in | — | — |
Certifications & Standards
| Buy American Act | C-UL |
