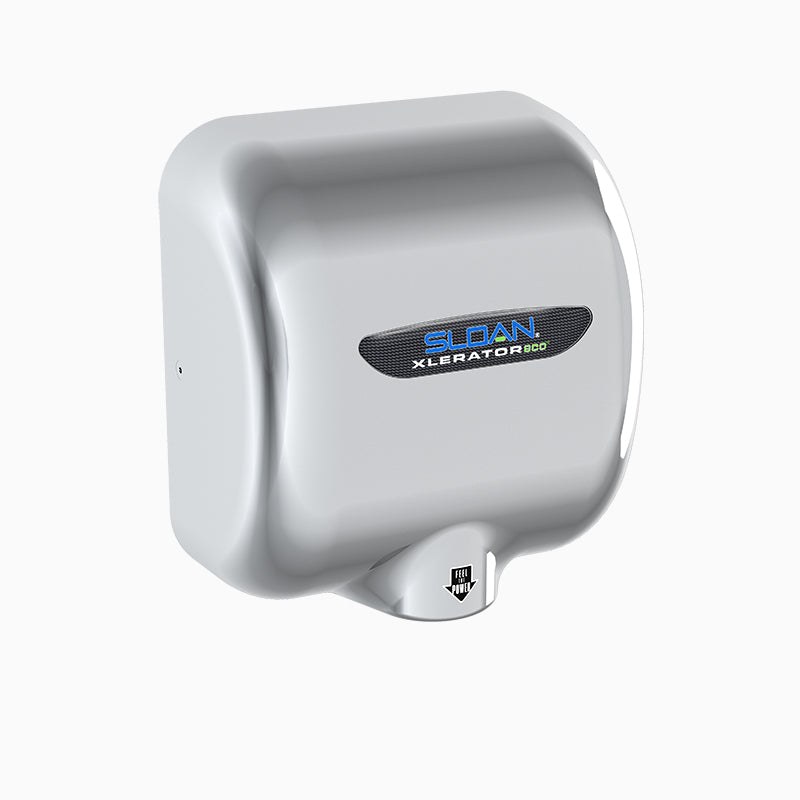

The Sloan EHD-502-ECO-CP-HEPA is a sensor-operated, 208/277V wall-mounted hand dryer. It features a zinc alloy body.
Features
- EHD-502-ECO, HEPA, 208/277V
- Available with HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air
- Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
- Residual moisture is evaporated with a warm stream of air up to 135°F/57°C
- One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
- 95% cost savings vs. paper towels
- Can be easily positioned to comply with ADA requirements or for juvenile height
- Hygienic hand dryer solution, 10 second dry time
- Available with Recess Kit for ADA compliance
- Can install multiple units on one circuit
- Virtually maintenance free
- Includes: HEPA
- Includes: ECO
Common Questions
- What electrical service does this dryer need?
- 208/277V, 2.0-2.2 Amps, hardwired connection.
- What size circuit breaker do I need?
- Size the circuit to the full-load draw of 2.2 amps.
- Does this dryer include HEPA filtration?
- Yes, this model ships with a HEPA filter.
Specifications
-
Type: Hand Dryer
-
Body Material: Zinc Alloy
-
MPN: EHD-502-ECO-CP-HEPA
-
Certifications: Buy American Act, C-UL
-
Mount Type: Wall-Mount
-
Finish: Polished Chrome
-
Electrical Requirement: 208/277V, 2.0-2.2 Amps
-
Full Load Amps: 2.2
-
Overall Width (in): 11.75
-
Overall Height (in): 6.688
