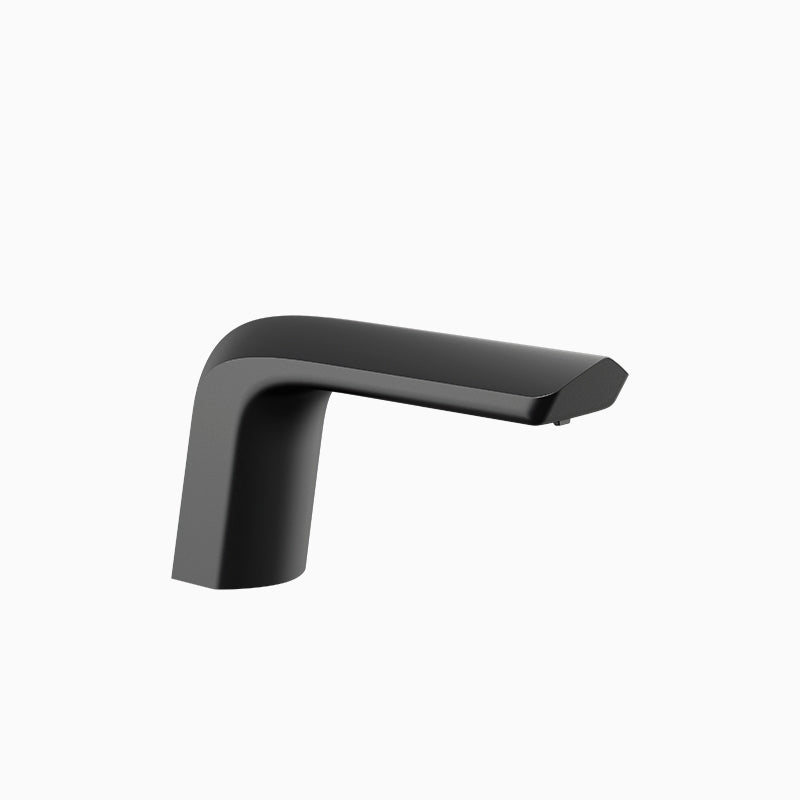

Sloan Optima ETF-410 0.5 GPM Box Transformer Sensor Faucet, Graphite, Below-Deck Thermostatic Mixer

The Sloan ETF-410 is a Deck-mounted Optima sensor faucet powered by a plug-in AC transformer. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a below deck thermostatic mixing valve. Available in Graphite. This model is certified lead-free for potable-water installations.

The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The ETF-410 is a hardwired powered low height profile that provides enhanced aesthetics and features for effective hand washing, making it well suited for most commercial restroom environments. The ETF-410 faucet comes with a number of features, including automatic self-adapting sensor technology, integrated water shut-off, hygienic line flush and quick connect fittings. The ETF-410 is bluetooth enabled that provides water usage and battery strength reporting as well as allows for wireless settings adjustment when used with the Sloan Connect App. Additionally, the ETF-410 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 VDC plug adapter (included with PLG models) or 24 VAC box transformer (included with BOX models). The ETF-410 can be paired up with the matching soap dispenser, the ESD-410.

Features

• Box Transformer Power Supply, Below Deck Thermostatic Mixing Valve, Graphite Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
• PVD Graphite Finish
• Commercial Grade Faucet
• ADA Compliant
• Cast Brass Spout
• Quick Connect Fittings
• Integrated Water Shut-off
• Wireless Settings Adjustment
• On-demand or Metered activation
• Hygienic Line Flush
• Water Usage and Battery Strength Reporting
• Self-adapting Sensor

Common Questions

How is this faucet powered, and what ships in the box?

This faucet ships with a plug-in AC transformer.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes a below deck thermostatic mixing valve. Sloan does not list ASSE 1070 certification for this specific code -- confirm on the spec sheet before specifying it for a code-mandated scald-protection application.

What is the flow rate, and is it WaterSense certified?

It delivers 0.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 4”-5”. It supports Bluetooth commissioning through the Sloan Connect app.

Specifications

• Type: Sensor Faucet
• MPN: ETF-410-BOX-BDT-GR-0.5GPM-MLM-BAA-FCT
• Certifications: ADA, Buy American Act, CALGreen, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372
• Lead-Free: Yes
• Power Source: AC (Plug-In)
• Power Supply Detail: Box Transformer (BOX)
• Run Time (s): 30
• Sensor Type: Infrared
• Sensing Range (in): 4”-5”
• Connectivity: Bluetooth
• Centers: Single-Hole
• Mixing Valve: Below Deck Thermostatic Mixing Valve
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Low
• Faucet Hole Size (min): 1-1/4"
• Mount Type: Deck-Mount
• Finish: Graphite
• Flow Rate (GPM): 0.5
