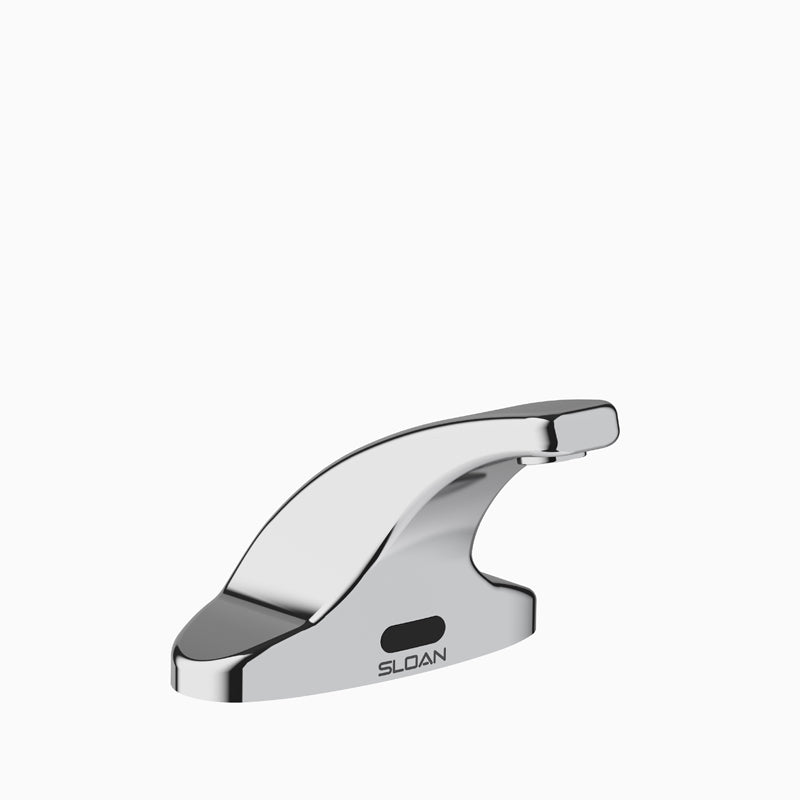

The Sloan SF-2300 is a Deck-mounted Standard sensor faucet powered by a plug-in AC transformer. It delivers 0.35 GPM through a multi-laminar (non-aerating) outlet. It includes a back-check tee. Available in Polished Chrome.
The Sloan Standard faucets are based on offering rugged and dependable cost-solutions for strict budgets. The SF-2300 is a plug-in hardwired, integrated base body, 4" centerset deck mounted faucet that provides commercial durability and premium aesthetics at a reasonable cost. The SF-2300 faucet comes with a number of features, including filtered solenoid valve with serviceable strainer filter and adjustable infrared sensor range that make it a great addition to any commercial restroom. Additionally, the SF-2300 includes all necessary mounting hardware and includes the plug-in adapter along with four (4) AA-sized batteries.
Features
- Plug Adapter Power Supply, Back-Check Tee, Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor
- Chrome Plated Finish
- 0.35GPM Flow Rate with multi-laminar flow
- Includes 4" Trim Plate for additional coverage of sink deck near spout
- Includes Plug Adapter
- Splash-proof Circuit Control Module
- Adjustable Infrared Sensor Range
- 36” (914 mm) Long Sensor Cable
- 24” (610 mm) Long Flex Hose
- Filtered Solenoid Valve with serviceable Strainer Filter
- Includes Four (4) AA-size Batteries
- Includes appropriate Mounting Hardware
- 1 Year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet ships with a plug-in AC transformer.
- Is this single-hole or centerset, and does it need a trim plate?
- This model mounts on 4" centers.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes a back-check tee.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.35 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor.
Specifications
-
Type: Sensor Faucet
-
Warranty: 1-Year Limited
-
MPN: SF-2300-PLG-TEE-CP-0.35GPM-MLM-FCT
-
Certifications: ADA, CALGreen, CEC, NSF-61, NYC 604.4, TAS, C-UL
-
Power Source: AC (Plug-In)
-
Power Supply Detail: Plug Adapter (PLG)
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Centers: 4"
-
Mixing Valve: Back-Check Tee
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Body Height: Mid Integrated Base
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.35
