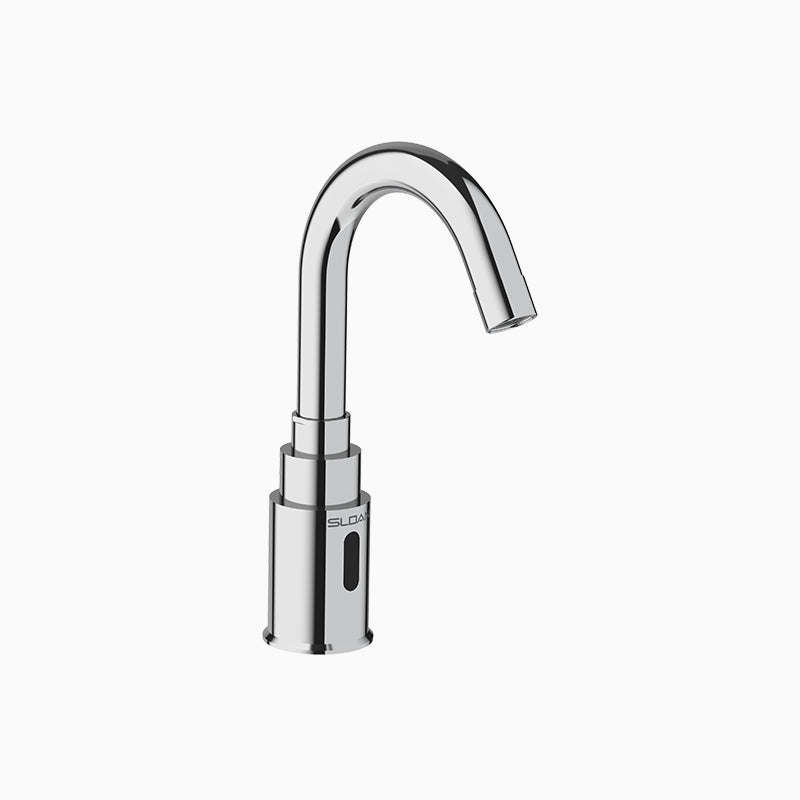

The Sloan SF-2200 is a Deck-mounted Standard sensor faucet powered by a plug-in AC transformer. It delivers 2.2 GPM through an aerator outlet. It includes a below deck manual mixing valve. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The Sloan Standard faucets are based on offering rugged and dependable cost-solutions for strict budgets. The SF-2200 is a plug-in hardwired, gooseneck body, single-hole deck mounted faucet that provides commercial durability and premium aesthetics at a reasonable cost. The SF-2200 faucet comes with a number of features, including filtered solenoid valve with serviceable strainer filter and adjustable infrared sensor range that make it a great addition to any commercial restroom. Additionally, the SF-2200 includes all necessary mounting hardware and includes the plug-in adapter along with four (4) AA-sized batteries.
Options on this configuration: 4" Trim Plate (4).
Features
- 4" Trim Plate, Plug Adapter Power Supply, Below Deck Manual Mixing Valve, Polished Chrome Finish, 2.2 gpm, Aerated Spray, Infrared Sensor
- Chrome Plated Finish
- 2.2GPM Flow Rate with aerated flow
- Includes 4" Trim Plate for additional coverage of sink deck near spout
- Plug adapter included
- Below deck manual mixing valve included for temperature setting and adjustment
- Adjustable Infrared Sensor Range
- 36” (914 mm) Long Sensor Cable
- 24” (610 mm) Long Flex Hose
- Filtered Solenoid Valve with serviceable Strainer Filter
- Includes Four (4) AA-size Batteries
- Includes appropriate Mounting Hardware
- 1 Year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet ships with a plug-in AC transformer.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes a below deck manual mixing valve.
- What is the flow rate, and is it WaterSense certified?
- It delivers 2.2 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor.
Specifications
-
Type: Sensor Faucet
-
Warranty: 1-Year Limited
-
MPN: SF-2200-4-PLG-BDM-CP-2.2GPM-AER-FCT
-
Certifications: ADA, IAPMO, NSF-61, TAS, NSF-372, C-UL
-
Lead-Free: Yes
-
Power Source: AC (Plug-In)
-
Power Supply Detail: Plug Adapter (PLG)
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Centers: Single-Hole
-
Trim Plate: 4"
-
Mixing Valve: Below Deck Manual Mixing Valve
-
Outlet Type: Aerator
-
Spout Type: Gooseneck
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 2.2
