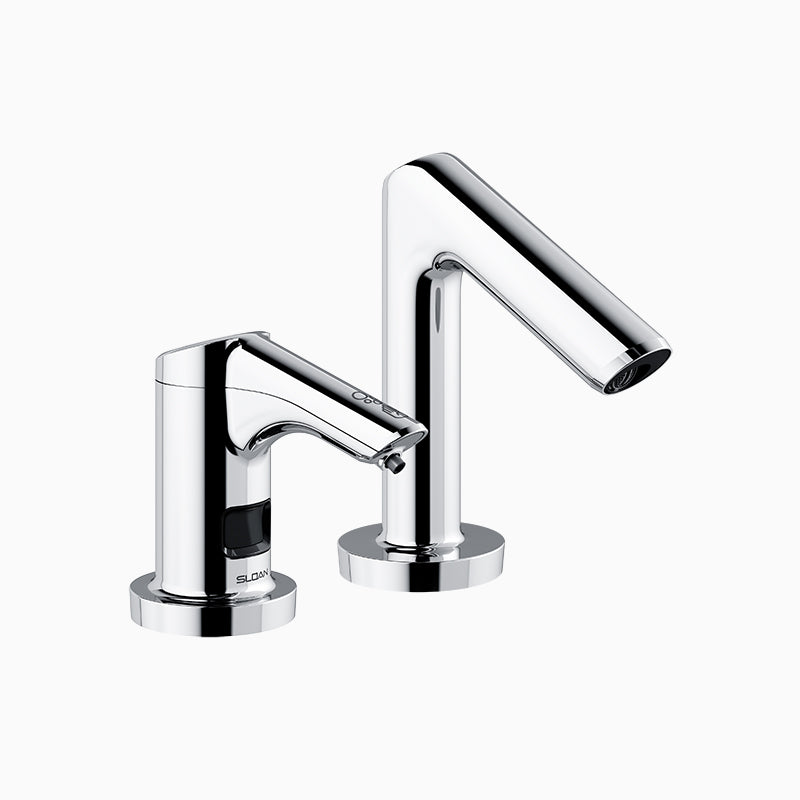

Sloan ESD-421 0.5 GPM Battery-Powered Sensor Faucet and Soap Dispenser Combo, Polished Chrome

The Sloan ESD-421 is a Deck-mounted sensor faucet and soap dispenser combination powered by battery. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a back-check tee. Available in Polished Chrome.

The ESD-421 is the EBF-425 faucet and the ESD-420 Soap Dispenser combination. This is a combination of the faucet, soap dispenser and soap. All three products have the ability to be ordered individually, however this is the recommended faucet and soap dispenser combination by Sloan. The faucet and soap dispenser can be either hardwired or battery. The ESD-421 spouts are easy to install and maintain, and have two soap size options, the 1500ml or 2300ml bottles. Your initial ESD-801 order will ship with two soap refills as well. The ESD-421 is a one tool service where the faucet has all wetted components are stainless steel, engineered thermoplastic, EPDM and copper or copper alloy. The ESD-421 faucet ships with four “AA” alkaline batteries and uses double infrared senses with automatic setting feature. Additionally, the ESD-421 includes all mounting hardware and other features such as line purging and adjustable timeouts. The ESD-421 is a faucet, soap and soap dispenser combination that includes the EBF-425 and ESD-420.

Features

• Polished Chrome Finish
• Chrome Plated Finish
• Faucet: Commercial Grade and ADA Compliant
• Faucet: Cast Brass Spout
• Faucet: Quick Connect Faucet Fittings
• Faucet: Integral water supply shut off
• Faucet: Wireless Settings Adjustment
• Faucet: On-demand or Metered activation
• Faucet: Hygienic Line Flush
• Faucet: Water Usage and Battery Strength Reporting
• Faucet: Self-adapting Sensor
• Soap Dispenser: Touch-free operation improves hand washing hygiene
• Soap Dispenser: Modular one-piece construction easily attaches to deck surface
• Soap Dispenser: All electronics in spout are sealed
• Soap Dispenser: Designed for drip free foam dispensing operation
• Soap Dispenser: Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout
• Soap Dispenser: Motor assembly rotates 360 degrees for easy installation
• Soap Dispenser: Battery life of 45,000 activations. 1-2 years based on usage.
• Soap Dispenser: Approx. 1,500 dispenses per foam soap bottle
• Soap Dispenser: Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)
• Soap Dispenser: Can be ordered as individual faucet or soap dispenser (EBF-425 or ESD-420)
• Soap Dispenser: Can be Hardwired with purchase optional AC Adapter (Part Number: 0346090)

Common Questions

How is this faucet powered, and what ships in the box?

This faucet runs on battery power. No transformer or wiring is required.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes a back-check tee.

What is the flow rate, and is it WaterSense certified?

It delivers 0.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor. It supports Bluetooth commissioning through the Sloan Connect app.

Specifications

• Type: Sensor Faucet and Soap Dispenser Combo
• MPN: ESD-421-CP
• Certifications: ADA
• Power Source: DC (Battery)
• Sensor Type: Infrared
• Connectivity: Bluetooth
• Centers: Single-Hole
• Mixing Valve: Back-Check Tee
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Mid
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
