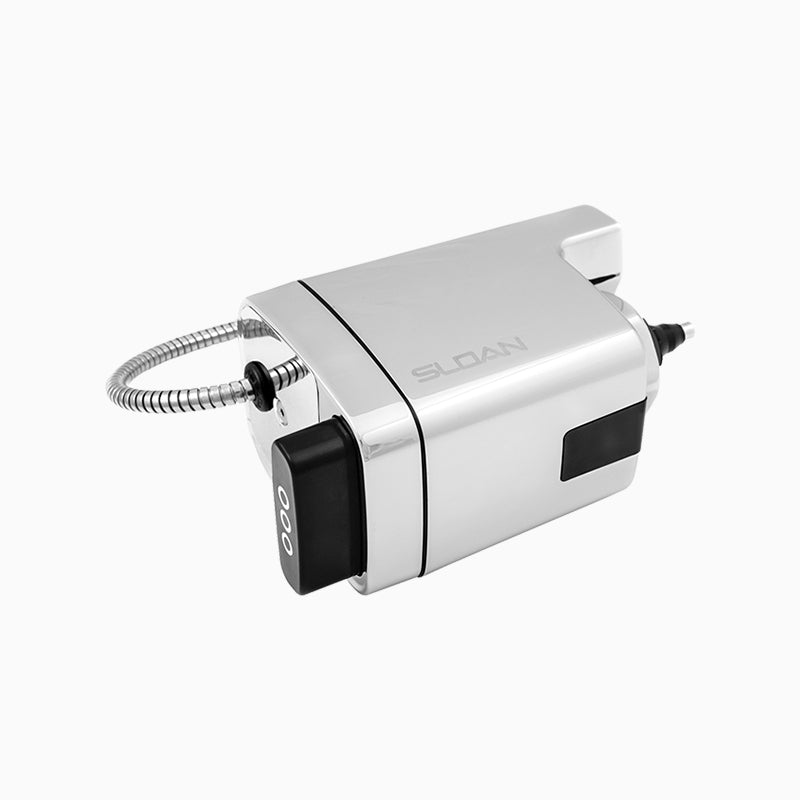

Sloan EL700A Hardwired-Powered Sensor Retrofit Kit for Urinal and Water Closet Flushometers, GEM Adapter, Option G Hardwired SFSM (Side-Mount Sensor)

The Sloan EL700A-GEM-CP-TMO is a hardwired sensor retrofit kit that converts a manual urinal and water closet flushometer to sensor operation.

Introducing the Exposed Sensor Hardwired Urinal/Water Closet Retrofit Flushometer EL700A, a cutting-edge solution designed to modernize your restroom facilities. This innovative product seamlessly combines advanced technology with reliable performance, offering a hygienic and efficient flushing experience. The EL700A features a hardwired design, ensuring consistent power supply and eliminating the need for battery replacements. With its True Mechanical Override function, users have the option for manual flushing when necessary, providing a dependable backup solution. This flushometer is not only ADA compliant but also meets various industry standards, including cUPC certification and UL listing. Available in a sleek Polished Chrome finish, the EL700A enhances the aesthetic appeal of any restroom while delivering superior functionality. Upgrade your facilities with Sloan's EL700A and experience the perfect balance of innovation, reliability, and water conservation.

Options on this configuration: GEM Adapter (GEM); True Mechanical Override (TMO); G; HARDWIRED. Sloan model number: EL700A-GEM-CP-TMO. Sloan's own price-list description: EL700A-G SFSM GEM HARDWIRED.

Features

• GEM Adapter, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, True Mechanical Override, Hardwired, Infrared
• Hardwired
• True Mechanical Override for manual flush

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Hardwired -- plan for an electrician to run power to the fixture.

What fixture is this retrofit for?

A urinal and water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Operation: Sensor
• MPN: EL700A-GEM-CP-TMO
• Certifications: ADA, Buy American Act, BABA, IAPMO, UL
• Fixture Served: Urinal/Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Sensor Type: Infrared
• Override Type: True Mechanical Override
• Sensing Range (in): 22"-42"
• Fits Brand: Sloan
• Kit Type: Side-Mount Sensor Retrofit Kit
