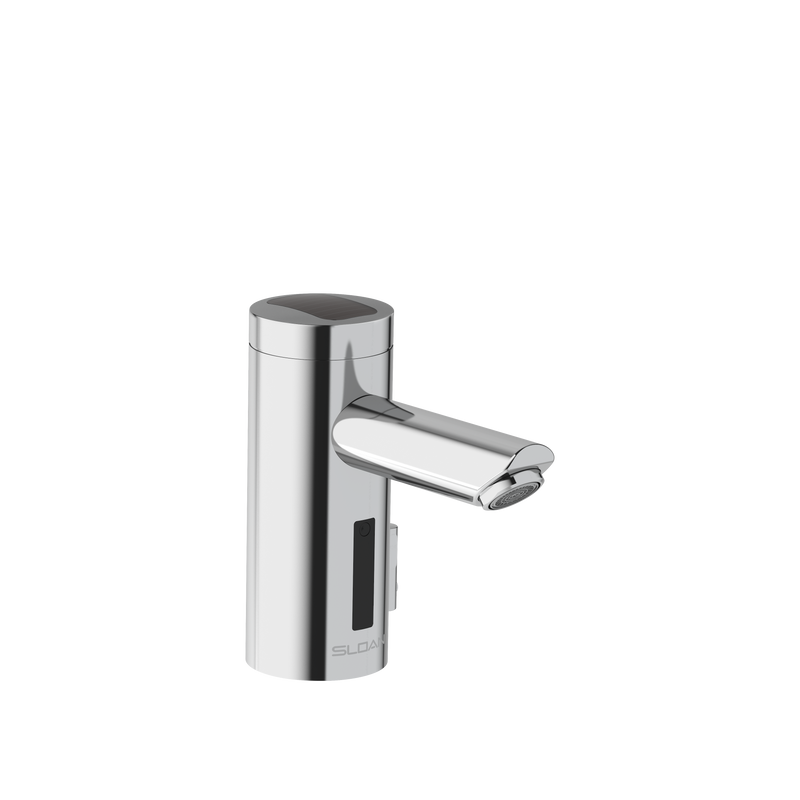

The Sloan EAF-275 is a Deck-mounted Optima sensor faucet powered by solar. It delivers 1.0 GPM through a laminar (non-aerating) outlet. It includes an integrated thermostatic mixer. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-275 is a solar powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-275 comes with solar energy harvesting technology that will passively harvest power and extend battery life from artificial or natural light sources. The EAF-275 faucet comes with a number of features, including automatic self-adapting sensor technology, double infrared sensors with automatic setup and magnetic solenoid valve. The EAF-275 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-275 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 VDC lithium battery for backup power. The EAF-275 can be paired up with the matching soap dispenser, the ESD-2000.
Features
- Solar Power Supply, Integrated Thermostatic Mixer, Polished Chrome Finish, 1.0 gpm, Laminar Spray, Infrared Sensor
- Chrome plated finish
- 1.0GPM sprayhead with laminar flow pattern
- Hybrid powered unit utilizing a solar panel and battery back-up power (2 CRP-2 Lithium batteries included). Extends battery life.
- Integrated in spout thermostatic mixing valve (ITM) included to allow for temperature setting and adjustment while reducing the risk of scalding. ASSE-1070 Compliant.
- Double Infrared Sensors with Automatic Setting Feature
- Automatic Self-adapting Sensor Technology
- Solar Powered
- Magnetic Solenoid Valve
- Water Supply Connection with Flexible High-pressure Hose and Strainer
- Appropriate Mounting Hardware included
- Includes 6 VDC Lithium Battery Back-up Power Source
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is solar-powered, charging an internal battery from ambient light. Sloan states a battery life of 3 years 8,000 cycles/month.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes an integrated thermostatic mixer. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.
- What is the flow rate, and is it WaterSense certified?
- It delivers 1.0 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EAF-275-SOL-ITM-CP-1.0GPM-LAM-IQ-FCT
-
Certifications: ADA, ASSE-1070, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372
-
Lead-Free: Yes
-
Power Source: Solar
-
Power Supply Detail: Solar (SOL)
-
Battery Life: 3 years 8,000 cycles/month
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Centers: Single-Hole
-
Mixing Valve: Integrated Thermostatic Mixer
-
Outlet Type: Laminar (Non-Aerating)
-
Body Height: Mid
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 1.0
