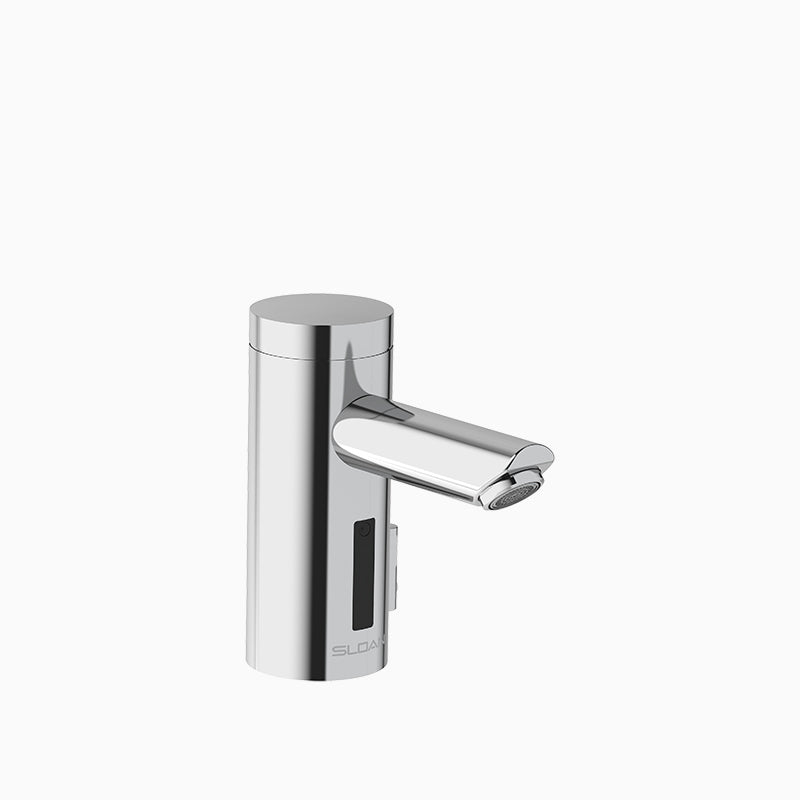

Sloan Optima EAF-200 0.35 GPM Plug Adapter Sensor Faucet, Polished Chrome, Integrated Thermostatic Mixer

The Sloan EAF-200 is a Deck-mounted Optima sensor faucet powered by a plug-in AC transformer. It delivers 0.35 GPM through a multi-laminar (non-aerating) outlet. It includes an integrated thermostatic mixer. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-200 is a hardwired powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-200 faucet comes with a number of features, including automatic self-adapting sensor technology, double infrared sensors with automatic setup and magnetic solenoid valve. The EAF-200 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-200 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 volt plug-in adapter (must be ordered separately for less transformer (-LT) faucets). The EAF-200 can be paired up with the matching soap dispenser, the ESD-2000.

Features

• Plug Adapter Power Supply, Integrated Thermostatic Mixer, Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor
• Chrome plated finish
• 0.35GPM flow pattern Rate with multi-laminar flow pattern
• Includes 120V plug-in transformer
• Integrated in spout thermostatic mixing valve (ITM) included to allow for temperature setting and adjustment while reducing the risk of scalding. ASSE-1070 Compliant.
• Double Infrared Sensors with Automatic Setting Feature and Microprocessor
• Automatic Self-adapting Sensor Technology
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 6 Volt DC Plug-in Adapter (must be ordered separately for Less Adapter/Transformer (-LT) faucets)
• Appropriate Mounting Hardware included
• 3 year limited warranty

Common Questions

How is this faucet powered, and what ships in the box?

This faucet ships with a plug-in AC transformer.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes an integrated thermostatic mixer. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.

What is the flow rate, and is it WaterSense certified?

It delivers 0.35 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 4”-5”. It is smart-capable with the optional connectivity adapter.

Specifications

• Type: Sensor Faucet
• Warranty: 3-Year Limited
• MPN: EAF-200-PLG-ITM-CP-0.35GPM-MLM-IQ-FCT
• Certifications: ADA, ASSE-1070, CALGreen, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372
• Lead-Free: Yes
• Power Source: AC (Plug-In)
• Power Supply Detail: Plug Adapter (PLG)
• Run Time (s): 30
• Sensor Type: Infrared
• Sensing Range (in): 4”-5”
• Connectivity: Smart Capable with Adapter
• Centers: Single-Hole
• Mixing Valve: Integrated Thermostatic Mixer
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Mid
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.35
