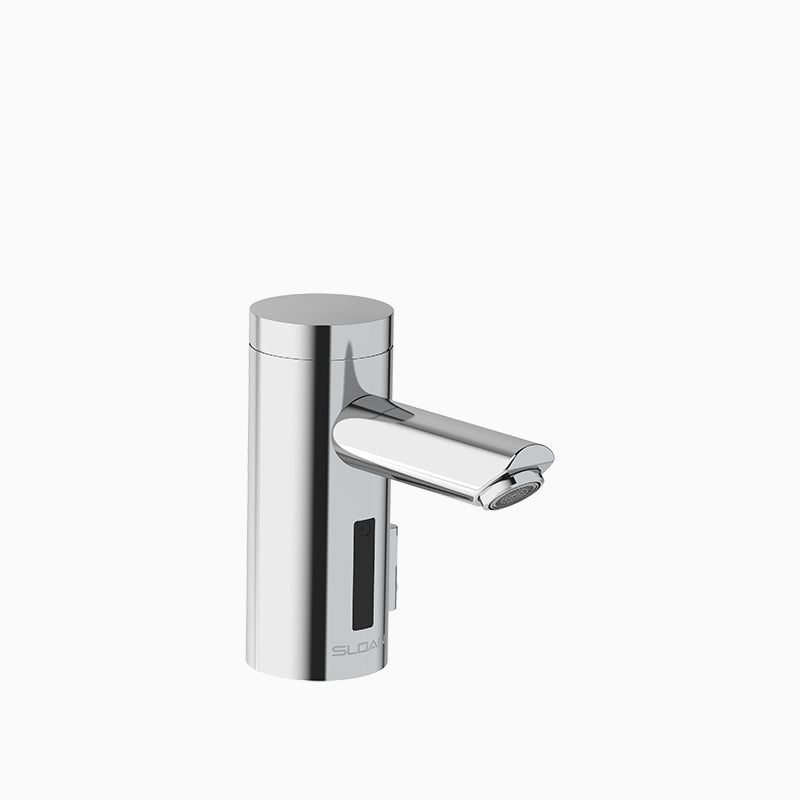

Sloan Optima EAF-250 1.0 GPM Battery-Powered Sensor Faucet, Polished Chrome

The Sloan EAF-250 is a Deck-mounted Optima sensor faucet powered by battery. It delivers 1.0 GPM through a laminar (non-aerating) outlet. It includes an integrated thermostatic mixer. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-250 is a battery powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-250 faucet comes with a number of features, including automatic self-adapting sensor technology, double infrared sensors with automatic setup, low battery indicator, and magnetic solenoid valve. The EAF-250 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-250 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 volt lithium CR-P2 commercial battery. The EAF-250 can be paired up with the matching soap dispenser, the ESD-2000.

Features

• Battery Power Supply, Integrated Thermostatic Mixer, Polished Chrome Finish, 1.0 gpm, Laminar Spray, Infrared Sensor
• Chrome plated finish
• 1.0GPM sprayhead with laminar flow pattern
• Battery powered with 2 CRP-2 Lithium batteries included
• Integrated in spout thermostatic mixing valve (ITM) included to allow for temperature setting and adjustment while reducing the risk of scalding. ASSE-1070 Compliant.
• Double Infrared Sensors with Automatic Setting Feature and Microprocessor
• Automatic Self-adapting Sensor Technology
• Low Battery Indicator
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 6 volt Lithium CR-P2 Commercial Battery included
• Appropriate Mounting Hardware included
• 3 year limited warranty

Common Questions

How is this faucet powered, and what ships in the box?

This faucet runs on battery power. Sloan states a battery life of 3 years 8,000 cycles/month. No transformer or wiring is required.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes an integrated thermostatic mixer. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.

What is the flow rate, and is it WaterSense certified?

It delivers 1.0 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 4”-5”.

Specifications

• Type: Sensor Faucet
• Warranty: 3-Year Limited
• MPN: EAF-250-BAT-ITM-CP-1.0GPM-LAM-IQ-FCT
• Certifications: ADA, ASSE-1070, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372
• Lead-Free: Yes
• Power Source: DC (Battery)
• Power Supply Detail: Battery (BAT)
• Battery Life: 3 years 8,000 cycles/month
• Run Time (s): 30
• Sensor Type: Infrared
• Sensing Range (in): 4”-5”
• Centers: Single-Hole
• Mixing Valve: Integrated Thermostatic Mixer
• Outlet Type: Laminar (Non-Aerating)
• Body Height: Mid
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 1.0
