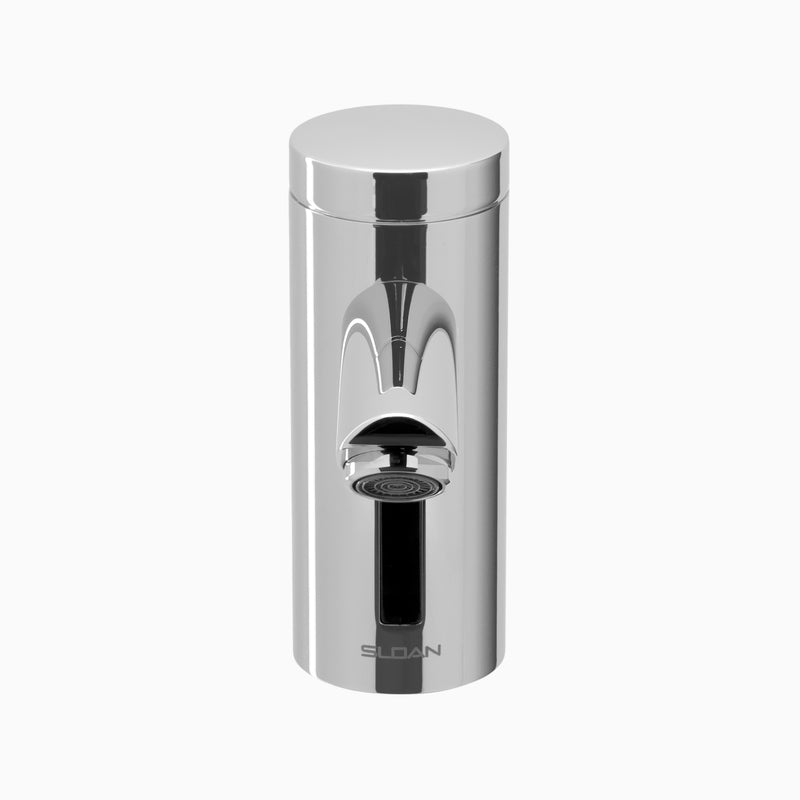

The Sloan EAF-200 is a Deck-mounted Optima sensor faucet powered by a hardwired AC connection. It delivers 0.35 GPM through a multi-laminar (non-aerating) outlet. Available in Polished Chrome.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-200 is a hardwired powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-200 faucet comes with a number of features, including automatic self-adapting sensor technology, double infrared sensors with automatic setup and magnetic solenoid valve. The EAF-200 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-200 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 volt plug-in adapter (must be ordered separately for less transformer (-LT) faucets). The EAF-200 can be paired up with the matching soap dispenser, the ESD-2000.
Features
- Hardwired Less Transformer Power Supply, Mixer Not Included, Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor
- Chrome plated finish
- 0.35GPM flow pattern Rate with multi-laminar flow pattern
- AC Powered faucet less transformer (-LT), includes daisy chain connector for connecting up to 6 faucets.
- Double Infrared Sensors with Automatic Setting Feature and Microprocessor
- Automatic Self-adapting Sensor Technology
- Magnetic Solenoid Valve
- Water Supply Connection with Flexible High-pressure Hose and Strainer
- 6 Volt DC Plug-in Adapter (must be ordered separately for Less Adapter/Transformer (-LT) faucets)
- Appropriate Mounting Hardware included
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is hardwired to 6 VDC -- plan for an electrician to run power to the fixture. There is no battery.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Does this faucet include a mixing valve?
- No. This model ships without a mixing valve (Mixer Not Included) -- it runs on a single already-tempered supply, or a mixing valve must be specified upstream.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.35 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”. It is smart-capable with the optional connectivity adapter.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EAF-200-HLT-CP-0.35GPM-MLM-IQ-FCT
-
Certifications: ADA, ASSE-1070, CALGreen, CEC, NSF-61, NYC 604.4, TAS
-
Power Source: Hardwired AC
-
Power Supply Detail: Hardwired Less Transformer (HLT)
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Connectivity: Smart Capable with Adapter
-
Centers: Single-Hole
-
Mixing Valve: Mixer Not Included
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Body Height: Mid
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.35
