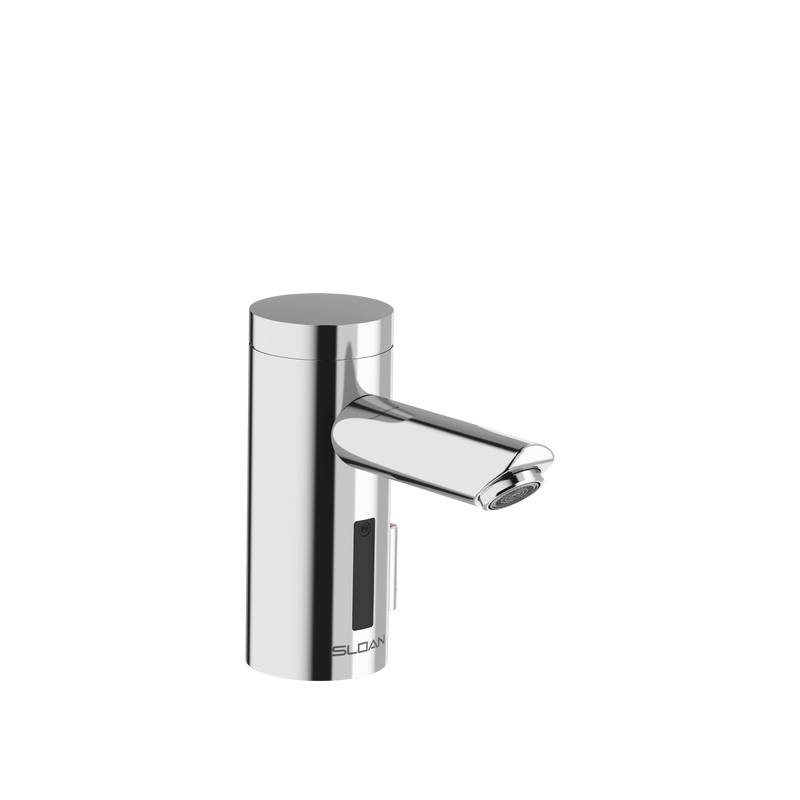

The Sloan EAF-200 is a Deck-mounted Optima sensor faucet powered by a plug-in AC transformer. It delivers 0.35 GPM through a multi-laminar (non-aerating) outlet. It includes an integrated side mixer. Available in Polished Chrome.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-200 is a hardwired powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-200 faucet comes with a number of features, including automatic self-adapting sensor technology, double infrared sensors with automatic setup and magnetic solenoid valve. The EAF-200 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-200 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 volt plug-in adapter (must be ordered separately for less transformer (-LT) faucets). The EAF-200 can be paired up with the matching soap dispenser, the ESD-2000.
Features
- Plug Adapter Power Supply, Integrated Side Mixer, Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor
- Chrome plated finish
- 0.35GPM flow pattern Rate with multi-laminar flow pattern
- Includes 120V plug-in transformer
- Integrated Side Mixer (ISM) included in spout for temperature setting and adjustment. Also includes cap to cover handle if removed.
- Double Infrared Sensors with Automatic Setting Feature and Microprocessor
- Automatic Self-adapting Sensor Technology
- Magnetic Solenoid Valve
- Water Supply Connection with Flexible High-pressure Hose and Strainer
- 6 Volt DC Plug-in Adapter (must be ordered separately for Less Adapter/Transformer (-LT) faucets)
- Appropriate Mounting Hardware included
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet ships with a plug-in AC transformer.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes an integrated side mixer.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.35 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”. It is smart-capable with the optional connectivity adapter.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EAF-200-PLG-ISM-CP-0.35GPM-MLM-IQ-FCT
-
Certifications: ADA, CALGreen, CEC, NSF-61, NYC 604.4, TAS
-
Power Source: AC (Plug-In)
-
Power Supply Detail: Plug Adapter (PLG)
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Connectivity: Smart Capable with Adapter
-
Centers: Single-Hole
-
Mixing Valve: Integrated Side Mixer
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Body Height: Mid
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.35
