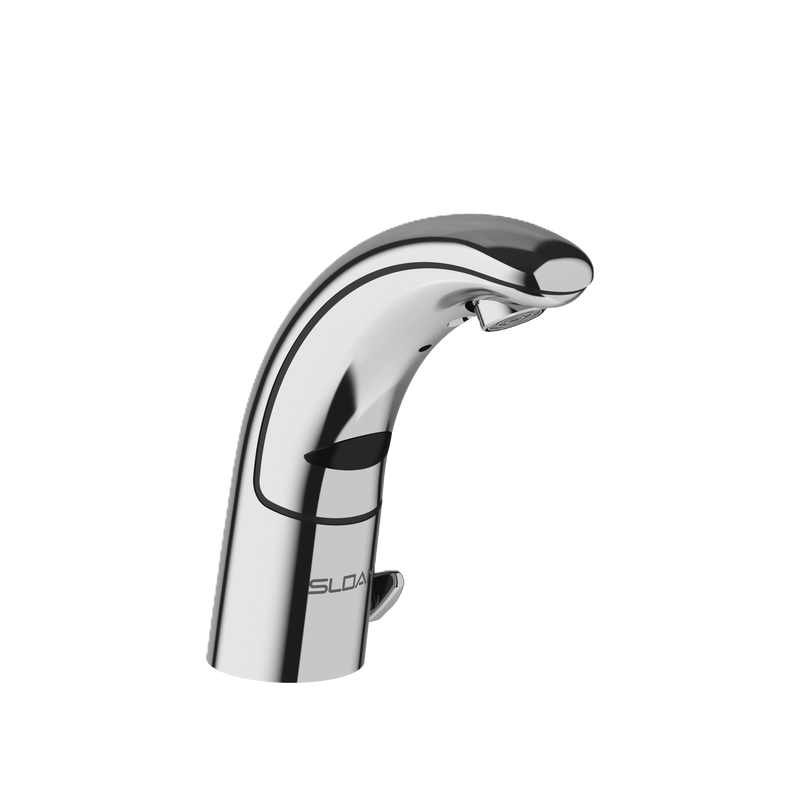

The Sloan EAF-100 is a Deck-mounted Optima sensor faucet powered by a hardwired AC connection. It delivers 0.5 GPM through an aerator outlet. It includes an integrated side mixer. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-100 is a hardwired powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-100 faucet comes with a number of features, including automatic self-adapting sensor technology, double infrared sensors with automatic setup and indicator light, magnetic solenoid valve, and and optional 24 hour sentinel activation. The EAF-100 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-100 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 volt plug-in adapter (must be ordered separately for less transformer (-LT) faucets). The EAF-100 can be paired up with the matching soap dispenser, the ESD-1500.
Features
- Hardwired Less Transformer Power Supply, Integrated Side Mixer, Polished Chrome Finish, 0.5 gpm, Aerated Spray, Infrared Sensor
- Chrome plated finish
- 0.5GPM sprayhead with aerated flow pattern
- AC Powered faucet less transformer (-LT), includes daisy chain connector for connecting up to 6 faucets.
- Integrated Side Mixer (ISM) included in spout for temperature setting and adjustment. Also includes cap to cover handle if removed.
- Double Infrared Sensors with Automatic Setup and Indicator Light
- Automatic Self-adapting Sensor Technology
- Magnetic Solenoid Valve
- Water Supply Connection with Flexible High-pressure Hose and Strainer
- Less transformer (-LT) faucets do not include 6 Volt DC plug-in adapter, can be ordered separately
- Appropriate Mounting Hardware included
- Optional line flush selections available
- 3 year limited warranty
- Includes EAF44 Power Splitter
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is hardwired to 6 VDC -- plan for an electrician to run power to the fixture. There is no battery.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes an integrated side mixer.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.5 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EAF-100-HLT-ISM-CP-0.5GPM-AER-IQ-FCT
-
Certifications: ADA, CEC, IAPMO, NYC 604.4, TAS, NSF-372
-
Lead-Free: Yes
-
Power Source: Hardwired AC
-
Power Supply Detail: Hardwired Less Transformer (HLT)
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Centers: Single-Hole
-
Mixing Valve: Integrated Side Mixer
-
Outlet Type: Aerator
-
Body Height: Mid
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.5
