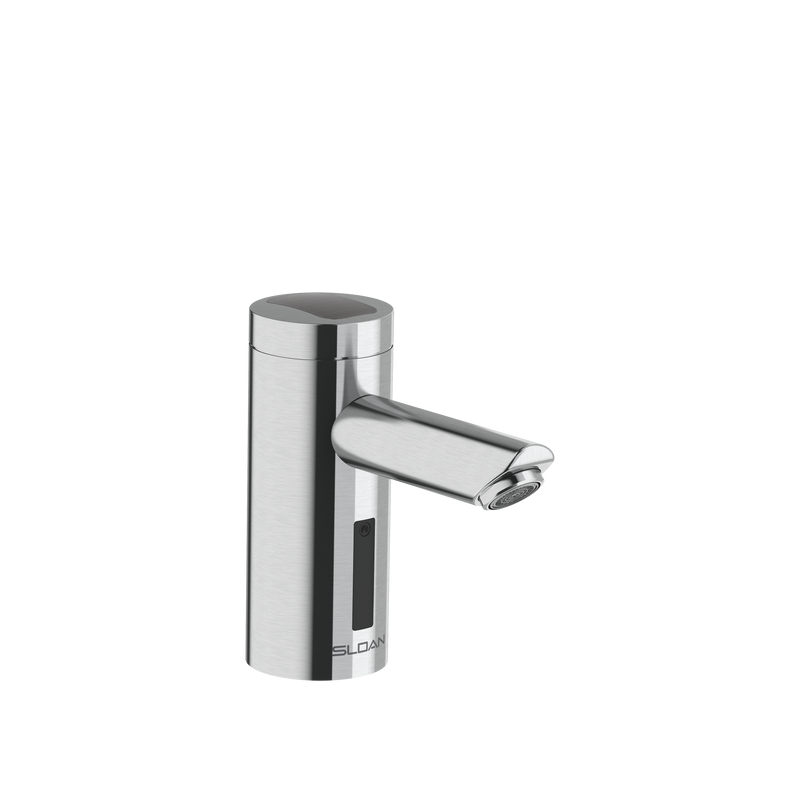

The Sloan EAF-275 is a Deck-mounted Optima sensor faucet powered by solar. It delivers 0.5 GPM through an aerator outlet. Available in Brushed Stainless.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-275 is a solar powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-275 comes with solar energy harvesting technology that will passively harvest power and extend battery life from artificial or natural light sources. The EAF-275 faucet comes with a number of features, including automatic self-adapting sensor technology, double infrared sensors with automatic setup and magnetic solenoid valve. The EAF-275 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-275 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 VDC lithium battery for backup power. The EAF-275 can be paired up with the matching soap dispenser, the ESD-2000.
Features
- Solar Power Supply, Mixer Not Included, Brushed Stainless Finish, 0.5 gpm, Aerated Spray, Infrared Sensor
- Brushed Stainless Finish
- 0.5GPM sprayhead with aerated flow pattern
- Hybrid powered unit utilizing a solar panel and battery back-up power (2 CRP-2 Lithium batteries included). Extends battery life.
- Double Infrared Sensors with Automatic Setting Feature
- Automatic Self-adapting Sensor Technology
- Solar Powered
- Magnetic Solenoid Valve
- Water Supply Connection with Flexible High-pressure Hose and Strainer
- Appropriate Mounting Hardware included
- Includes 6 VDC Lithium Battery Back-up Power Source
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is solar-powered, charging an internal battery from ambient light. Sloan states a battery life of 3 years 8,000 cycles/month.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Does this faucet include a mixing valve?
- No. This model ships without a mixing valve (Mixer Not Included) -- it runs on a single already-tempered supply, or a mixing valve must be specified upstream.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.5 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EAF-275-SOL-SF-0.5GPM-AER-IQ-FCT
-
Certifications: CEC, NSF-61, NYC 604.4, TAS
-
Power Source: Solar
-
Power Supply Detail: Solar (SOL)
-
Battery Life: 3 years 8,000 cycles/month
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Centers: Single-Hole
-
Mixing Valve: Mixer Not Included
-
Outlet Type: Aerator
-
Body Height: Mid
-
Mount Type: Deck-Mount
-
Finish: Brushed Stainless
-
Flow Rate (GPM): 0.5
