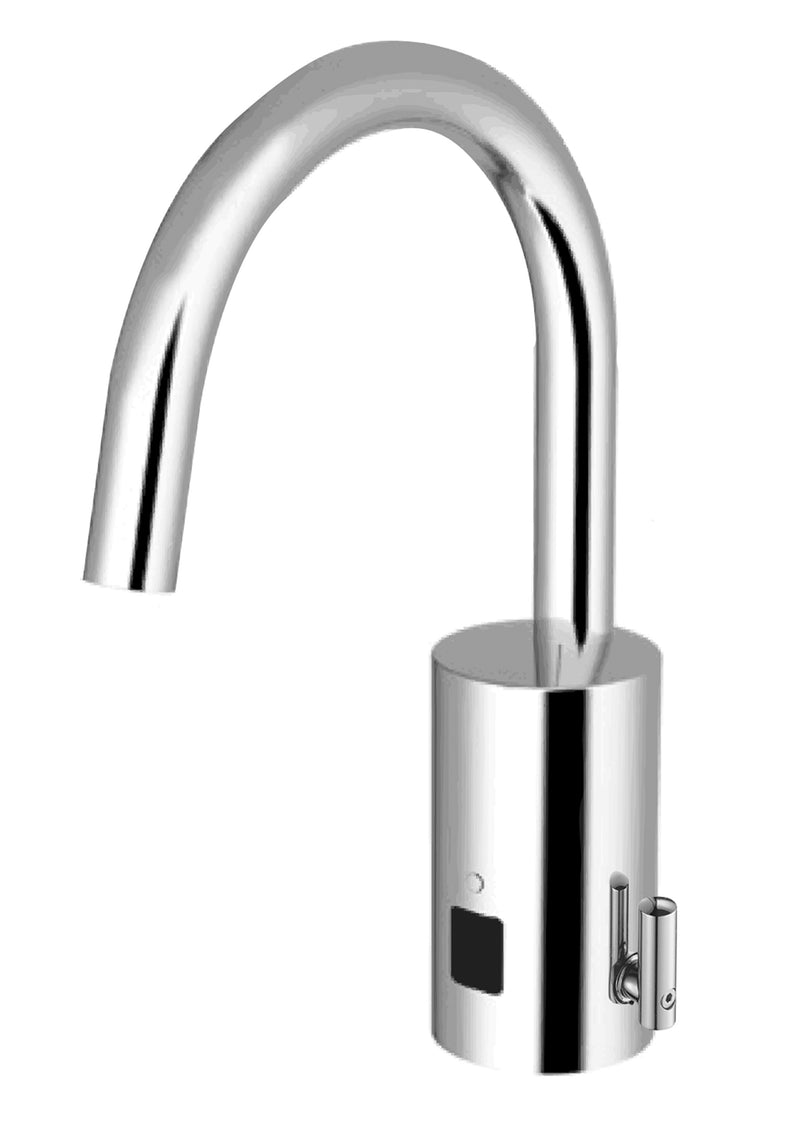

Sloan Optima EAF-700 1.0 GPM Plug Adapter Sensor Faucet, Polished Chrome, Integrated Side Mixer

The Sloan EAF-700 is a Deck-mounted Optima sensor faucet powered by a plug-in AC transformer. It delivers 1.0 GPM through a laminar (non-aerating) outlet. It includes an integrated side mixer. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-700 is a hardwired powered gooseneck body that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-700 faucet comes with a number of features, including 12/24 hour hygienic rinse line purge, unitary spout housing assembly for easy cleaning, double infrared sensors with automatic setup and bi-stable magnetic solenoid valve. The EAF-700 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-700 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 124 VAC/6.75 VDC plug-in adapter (must be ordered separately for less transformer (-LT) faucets). The EAF-700 can be paired up with the matching soap dispenser, the ESD-700.

Features

• Plug Adapter Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.0 gpm, Laminar Spray, Infrared Sensor
• Chrome plated finish
• 1.0GPM sprayhead with laminar flow pattern
• Includes 120V plug-in transformer
• Integrated Side Mixer (ISM) included in spout for temperature setting and adjustment. Also includes cap to cover handle if removed.
• 12/24 hour Hygienic Rinse Line Purge Function – Field Settable
• Unitary Spout Housing Assembly for Easy Cleaning
• Modular One-piece Construction with all Concealed Components above deck
• Double Infrared Sensors with Automatic Setting Feature and Microprocessor
• Bi-stable Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 123 VAC/6.75 VDC Plug-in Adapter (must be ordered separately for Less Adapter (-LT) faucets)
• IQ-Click feature permits activation of continuous run and temporary off modes
• Appropriate Mounting Hardware included
• 3 year limited warranty

Common Questions

How is this faucet powered, and what ships in the box?

This faucet ships with a plug-in AC transformer.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes an integrated side mixer.

What is the flow rate, and is it WaterSense certified?

It delivers 1.0 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 4”-5”.

Specifications

• Type: Sensor Faucet
• Warranty: 3-Year Limited
• MPN: EAF-700-PLG-ISM-CP-1.0GPM-LAM-IQ-FCT
• Certifications: ADA, CEC, IAPMO, NOM, TAS, NSF-372
• Lead-Free: Yes
• Power Source: AC (Plug-In)
• Power Supply Detail: Plug Adapter (PLG)
• Run Time (s): 30
• Sensor Type: Infrared
• Sensing Range (in): 4”-5”
• Centers: Single-Hole
• Mixing Valve: Integrated Side Mixer
• Outlet Type: Laminar (Non-Aerating)
• Spout Type: Gooseneck
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 1.0
