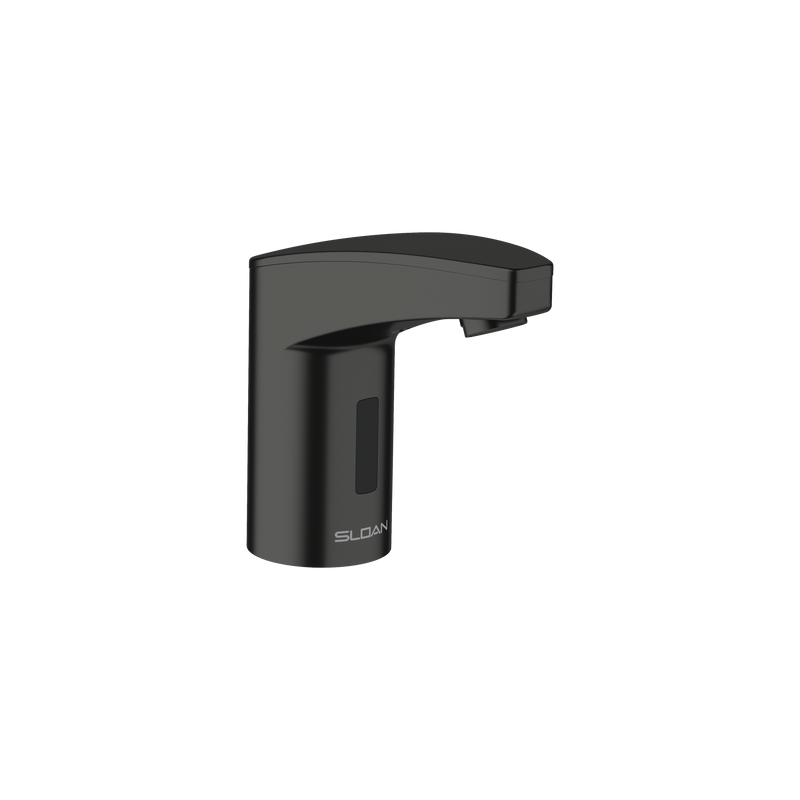

The Sloan EAF-300 is a Deck-mounted Optima sensor faucet powered by a plug-in AC transformer. It delivers 0.35 GPM through a multi-laminar (non-aerating) outlet. Available in Graphite.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-300 is a hardwired powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-300 faucet comes with a number of features, including double infrared sensors with automatic setup and bi-stable magnetic solenoid valve for increased energy savings. The EAF-300 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-300 comes with all necessary mounting hardware and 6 volt plug-in adapter (must be ordered separately for less transformer (-LT) faucets).
Features
- Plug Adapter Power Supply, Mixer Not Included, Graphite Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor
- PVD Graphite Finish
- 0.35GPM flow pattern Rate with multi-laminar flow pattern
- Includes 120V plug-in transformer
- Double Infrared Sensor with Automatic Setting Feature and Microprocessor
- Bi-Stable Magnetic Solenoid Valve (for increased energy savings)
- Water Supply Connection with Flexible High-Pressure Hose and Strainer
- 6 Volt DC Plug-in Adapter (must be ordered separately for Less transformer (-LT) faucets)
- Daisy Chain Electrical Splitter Cable included with Less transformer (-LT) faucets
- IR-Click feature permits activation of continuous run and temporary off modes
- Appropriate Mounting Hardware included
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet ships with a plug-in AC transformer.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Does this faucet include a mixing valve?
- No. This model ships without a mixing valve (Mixer Not Included) -- it runs on a single already-tempered supply, or a mixing valve must be specified upstream.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.35 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EAF-300-PLG-GR-0.35GPM-MLM-IQ-FCT
-
Certifications: CALGreen, CEC, NSF-61, NYC 604.4, TAS
-
Power Source: AC (Plug-In)
-
Power Supply Detail: Plug Adapter (PLG)
-
Run Time (s): 15
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Centers: Single-Hole
-
Mixing Valve: Mixer Not Included
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Body Height: Mid
-
Mount Type: Deck-Mount
-
Finish: Graphite
-
Flow Rate (GPM): 0.35
