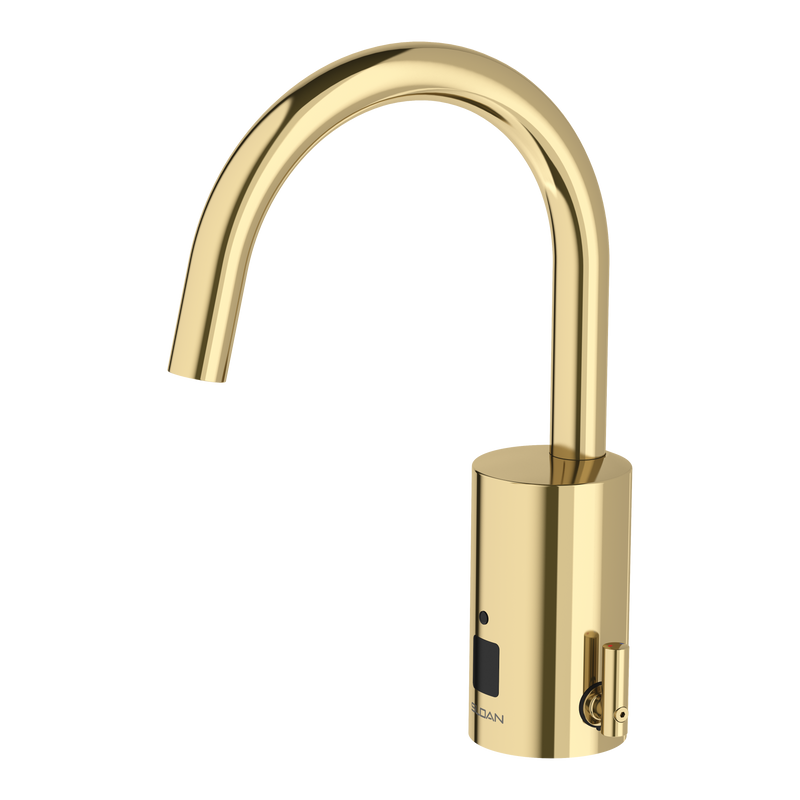

The Sloan EAF-750 is a Deck-mounted Optima sensor faucet powered by battery. It delivers 1.0 GPM through a laminar (non-aerating) outlet. It includes an integrated side mixer. Available in Polished Brass.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EAF-750 is a battery powered gooseneck body that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EAF-750 faucet comes with a number of features, including 12/24 hour hygienic rinse line purge, unitary spout housing assembly for easy cleaning, double infrared sensors with automatic setup and bi-stable magnetic solenoid valve. The EAF-750 provides above-deck access to key components for easy access when maintenance is required. Additionally, the EAF-750 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and 6 volt lithium CR-P2 commercial battery. The EAF-750 can be paired up with the matching soap dispenser, the ESD-70
Features
- Battery Power Supply, Integrated Side Mixer, Polished Brass Finish, 1.0 gpm, Laminar Spray, Infrared Sensor
- PVD Polished Brass Finish
- 1.0GPM sprayhead with laminar flow pattern
- Hybrid powered unit utilizing a solar panel and battery back-up power (2 CRP-2 Lithium batteries included). Extends battery life.
- Integrated Side Mixer (ISM) included in spout for temperature setting and adjustment. Also includes cap to cover handle if removed.
- 12/24 Hour Hygienic Rinse Line Purge Function
- Field Settable
- Unitary Spout Housing Assembly for Easy Cleaning
- Modular One-piece Construction with all Concealed Components above deck
- Double Infrared Sensors with Automatic Setting Feature and Microprocessor
- Low Battery Indicator
- Bi-stable Magnetic Solenoid Valve
- Water Supply Connection with Flexible High-pressure Hose and Strainer
- 8 volt Lithium CR P2 Commercial Battery included
- Appropriate Mounting Hardware included
- IQ-Click feature permits activation of continuous run and temporary off modes
- Installation Similar to Conventional Single Lever Faucet
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet runs on battery power. Sloan states a battery life of 3 years 8,000 cycles/month. No transformer or wiring is required.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes an integrated side mixer.
- What is the flow rate, and is it WaterSense certified?
- It delivers 1.0 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EAF-750-BAT-ISM-PB-1.0GPM-LAM-IQ-FCT
-
Certifications: CALGreen, CEC, NYC 604.4, TAS
-
Power Source: DC (Battery)
-
Power Supply Detail: Battery (BAT)
-
Battery Life: 3 years 8,000 cycles/month
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Centers: Single-Hole
-
Mixing Valve: Integrated Side Mixer
-
Outlet Type: Laminar (Non-Aerating)
-
Spout Type: Gooseneck
-
Mount Type: Deck-Mount
-
Finish: Polished Brass
-
Flow Rate (GPM): 1.0
