Sloan G2 RESS-U Battery-Powered Sensor Retrofit Kit for Urinal Flushometers, No Control Stop, Adjustable Ground Joint Control Stop

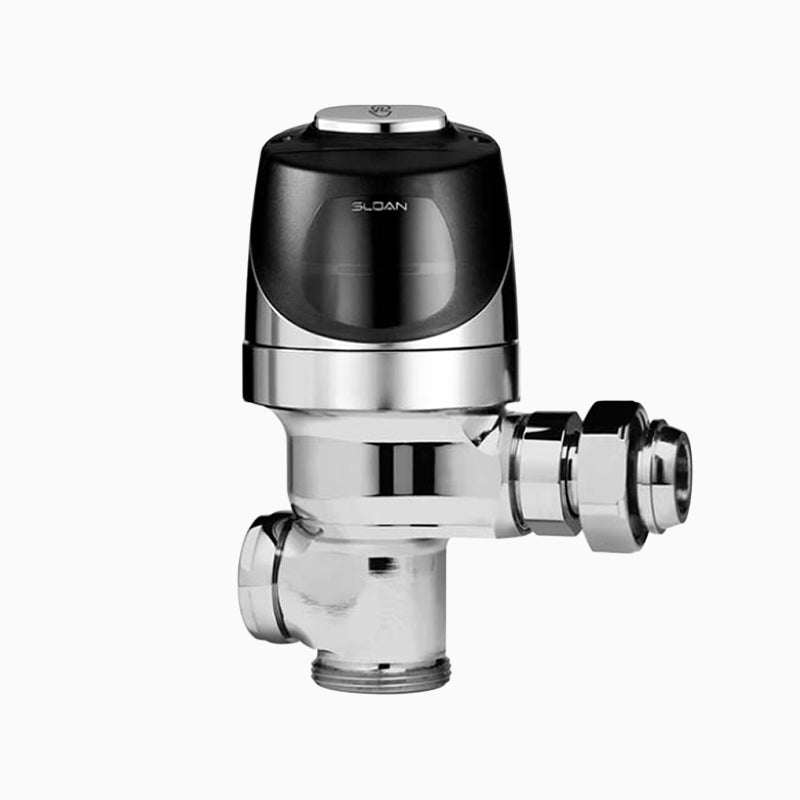

The Sloan G2 RESS-U-0.5-XD-CP is a battery-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body.

Introducing the G2 Exposed Sensor Urinal Retrofit Flushometer, a cutting-edge solution for modernizing your restroom facilities. The G2 RESS-U combines advanced technology with reliable performance to deliver exceptional water efficiency and hygiene. This innovative flushometer is designed to meet the highest industry standards, including compliance with applicable sections of ASSE 1037, ensuring top-quality performance and durability. The G2 RESS-U offers a range of features that make it an ideal choice for commercial and institutional settings. Its hands-free operation promotes improved hygiene and reduces the spread of germs, while its precision sensor technology ensures accurate flush activation every time. The flushometer's retrofit design allows for easy installation on existing urinal fixtures, making it a cost-effective upgrade for any facility looking to enhance its restroom experience. Available in a variety of finishes, including Polished Chrome, Brushed Stainless, Brushed Nickel, and Polished Brass, the G2 RESS-U seamlessly integrates into any restroom decor. With its sleek and modern appearance, this flushometer not only improves functionality but also enhances the overall aesthetics of your restroom space. Choose the G2 Exposed Sensor Urinal Retrofit Flushometer for a reliable, efficient, and hygienic solution that meets the demands of today's commercial environments.

Options on this configuration: No Control Stop (XD); Adjustable Ground Joint Control Stop (ADJ/GJ). Sloan model number: G2 RESS-U-0.5-XD-CP.

Features

• 0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, No Control Stop, Electrical Override, Battery
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Operation: Sensor
• Control Stop: None Included
• MPN: G2 RESS-U-0.5-XD-CP
• Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Override Type: Electrical Override
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
