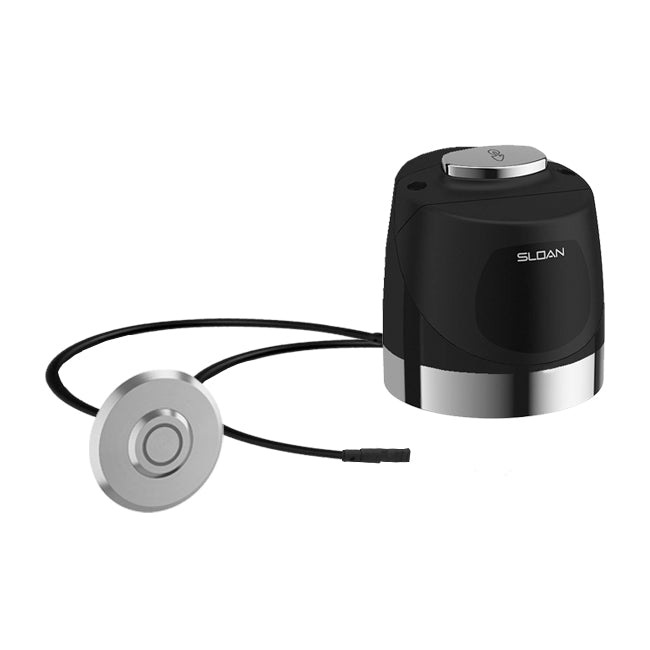

Sloan PWT-ESM-RESS-HR Hardwired-Powered Sensor Retrofit Kit for Water Closet Flushometers, Program A4L, LED Button, Option HE 1.28 gpf Program #A4L

The Sloan PWT-ESM-RESS-HR-1.28-CP-PRGM-A4L-LED is a hardwired sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a permex synthetic rubber diaphragm seat.

Options on this configuration: Hardwired (HW); PWT Program A4L (PRGM-A4L); LED Touch Button (LED); HE; 1.28 gpf; PROGRAM; #A4L. Sloan model number: PWT-ESM-RESS-HR-1.28-CP-PRGM-A4L-LED. Sloan's own price-list description: 8603 ESM HW RESS HE 1.28 PROGRAM #A4L.

Features

• 1.28 gpf, A4L, Polished Chrome Finish, Single Flush, Hardwired, Piezo
• 1.28 gpf models and 1.6/2.4/3.5 gpf models
• Program set to 2 activations in 5 minutes with lockout
• Program is field changeable to 15, 30, 45 and 60 minute lockout times, or dorm setting
• Can be used with stainless-steel water closet fixtures from Acorn®, Bradley®, Metcraft® and other manufacturers
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Single Flush
• Solenoid operated
• Includes standard or LED touch button for operation
• Stainless steel, vandal proof button, chemical resistant button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
• XX’ Connector cable has white arrows for easy alignment
• Hardwire power with battery backup
• 18” power cable for connection
• Use with EAF-11 plug-in transformer
• Up to 8 valve connections per EAF-11
• Four (4) Size AA Batteries
• Low Battery flashing LED
• Retrofit Kit for- Manual flushometers: - Royal 603 - Royal 611 - Royal 613 Hydraulic flushometers: - Royal 9603 - Royal 9611 - Royal 9613
• Can convert other vendor’s valves with addition of 3325524 EBV31A Retrofit Kit Coupling Ring

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Hardwired -- plan for an electrician to run power to the fixture.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Solenoid
• MPN: PWT-ESM-RESS-HR-1.28-CP-PRGM-A4L-LED
• Fixture Served: Water Closet
• Body Style: Concealed
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Polished Chrome
• Vandal Resistant: Yes
• Power Source: Hardwired AC
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Piezo
• Fits Brand: Sloan
• Kit Type: PWT-ESM Retrofit Kit
