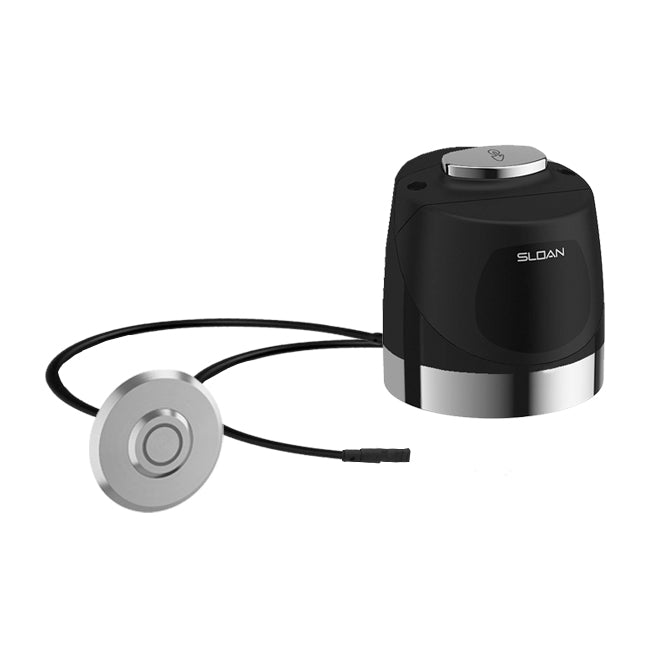

The Sloan PWT-ESM-RESS-HR-3.5/2.4/1.6-CP-HW-PRGM-A4L-LED is a hardwired sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a permex synthetic rubber diaphragm seat.
Options on this configuration: Hardwired (HW); PWT Program A4L (PRGM-A4L); LED Touch Button (LED); 3.5/2.4/1.6 gpf; 3.5 gpf; 1.6 gpf; 2.4 gpf; PRGM; #A4L. Sloan model number: PWT-ESM-RESS-HR-3.5/2.4/1.6-CP-HW-PRGM-A4L-LED. Sloan's own price-list description: 8603 ESM HW RESS 3.5, 1.6, 2.4 PRGM #A4L.
Features
- 3.5/2.4/1.6 gpf, A4L, Polished Chrome Finish, Single Flush, Hardwired, Piezo
- 1.28 gpf models and 1.6/2.4/3.5 gpf models
- Program set to 2 activations in 5 minutes with lockout
- Program is field changeable to 15, 30, 45 and 60 minute lockout times, or dorm setting
- Can be used with stainless-steel water closet fixtures from Acorn®, Bradley®, Metcraft® and other manufacturers
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Single Flush
- Solenoid operated
- Includes standard or LED touch button for operation
- Stainless steel, vandal proof button, chemical resistant button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
- XX’ Connector cable has white arrows for easy alignment
- Hardwire power with battery backup
- 18” power cable for connection
- Use with EAF-11 plug-in transformer
- Up to 8 valve connections per EAF-11
- Four (4) Size AA Batteries
- Low Battery flashing LED
- Retrofit Kit for-
Manual flushometers:
- Royal 603
- Royal 611
- Royal 613
Hydraulic flushometers:
- Royal 9603
- Royal 9611
- Royal 9613
- Can convert other vendor’s valves with addition of 3325524 EBV31A Retrofit Kit Coupling Ring
Common Questions
- What does this kit fit?
- Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.
- How is it powered?
- Hardwired -- plan for an electrician to run power to the fixture.
- What fixture is this retrofit for?
- A water closet flushometer, per Sloan's own product name for this kit.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Solenoid
-
MPN: PWT-ESM-RESS-HR-3.5/2.4/1.6-CP-HW-PRGM-A4L-LED
-
Certifications: ADA, IAPMO
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
Dual Flush: No
-
Finish: Polished Chrome
-
Vandal Resistant: Yes
-
Power Source: Hardwired AC
-
Power Supply Detail: 4x AA Batteries
-
Sensor Type: Piezo
-
Fits Brand: Sloan
-
Kit Type: PWT-ESM Retrofit Kit
