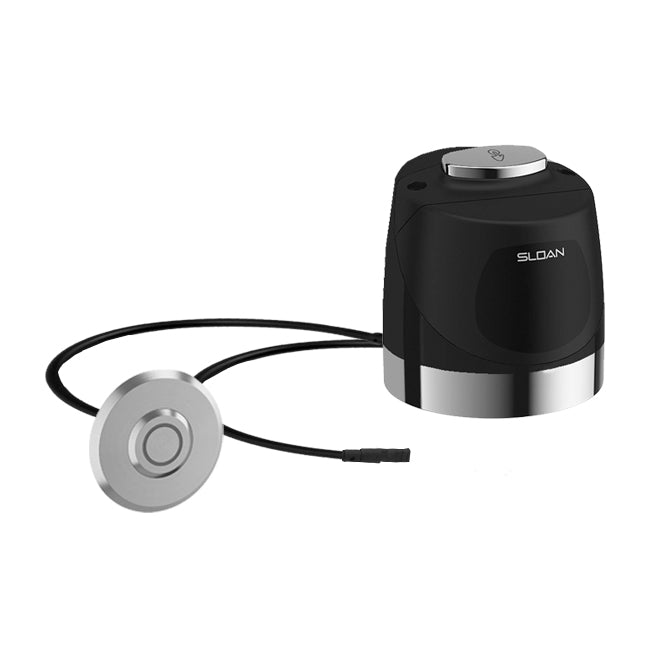

The Sloan PWT-ESM-RESS-HR-3.5/2.4/1.6-CP-HW-PRGM-A4-MBFW is a hardwired sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a permex synthetic rubber diaphragm seat.
Options on this configuration: Metal Button Fixture Wall Actuator (MBFW); Hardwired (HW); PWT Program A4 (PRGM-A4); 3.5/2.4/1.6 gpf; 3.5 gpf; 1.6 gpf; 2.4 gpf; PRGM; #A4. Sloan model number: PWT-ESM-RESS-HR-3.5/2.4/1.6-CP-HW-PRGM-A4-MBFW. Sloan's own price-list description: 8603 ESM HW RESS 3.5, 1.6, 2.4 PRGM #A4.
Features
- 3.5/2.4/1.6 gpf, A4, Polished Chrome Finish, Single Flush, Hardwired, Metal Button Fixture Wall Actuator Push Button, Piezo
- 1.28 gpf models and 1.6/2.4/3.5 gpf models
- Program set to 2 activations in 5 minutes with lockout
- Program is field changeable to 15, 30, 45 and 60 minute lockout times, or dorm setting
- Can be used with stainless-steel water closet fixtures from Acorn®, Bradley®, Metcraft® and other manufacturers
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Single Flush
- Solenoid operated
- Includes standard or LED touch button for operation
- Stainless steel, vandal proof button, chemical resistant button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
- XX’ Connector cable has white arrows for easy alignment
- Hardwire power with battery backup
- 18” power cable for connection
- Use with EAF-11 plug-in transformer
- Up to 8 valve connections per EAF-11
- Four (4) Size AA Batteries
- Low Battery flashing LED
- Retrofit Kit for- Manual flushometers: - Royal 603 - Royal 611 - Royal 613 Hydraulic flushometers: - Royal 9603 - Royal 9611 - Royal 9613
- Can convert other vendor’s valves with addition of 3325524 EBV31A Retrofit Kit Coupling Ring
Common Questions
- What does this kit fit?
- Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.
- How is it powered?
- Hardwired -- plan for an electrician to run power to the fixture.
- What fixture is this retrofit for?
- A water closet flushometer, per Sloan's own product name for this kit.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Solenoid
- MPN: PWT-ESM-RESS-HR-3.5/2.4/1.6-CP-HW-PRGM-A4-MBFW
- Certifications: ADA, IAPMO
- Fixture Served: Water Closet
- Body Style: Concealed
- Dual Flush: No
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Power Source: Hardwired AC
- Power Supply Detail: 4x AA Batteries
- Sensor Type: Piezo
- Fits Brand: Sloan
- Kit Type: PWT-ESM Retrofit Kit
Details
| Series | PWT-ESM-RESS-HR | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Solenoid |
| Options | Metal Button Fixture Wall Actuator (MBFW), Hardwired (HW), PWT Program A4 (PRGM-A4), 3.5/2.4/1.6 gpf, 3.5 gpf, 1.6 gpf, 2.4 gpf, PRGM, #A4 | Kit Type | PWT-ESM Retrofit Kit |
| Fits Brand | Sloan | Fixture Served | Water Closet |
| Body style | Concealed | Coating | Polished Chrome |
| Dual flush | No | Vandal resistant | Yes |
| Power source | Hardwired AC | Power supply detail | 4x AA Batteries |
| Sensor type | Piezo | — | — |
Certifications & Standards
| ADA | IAPMO |
