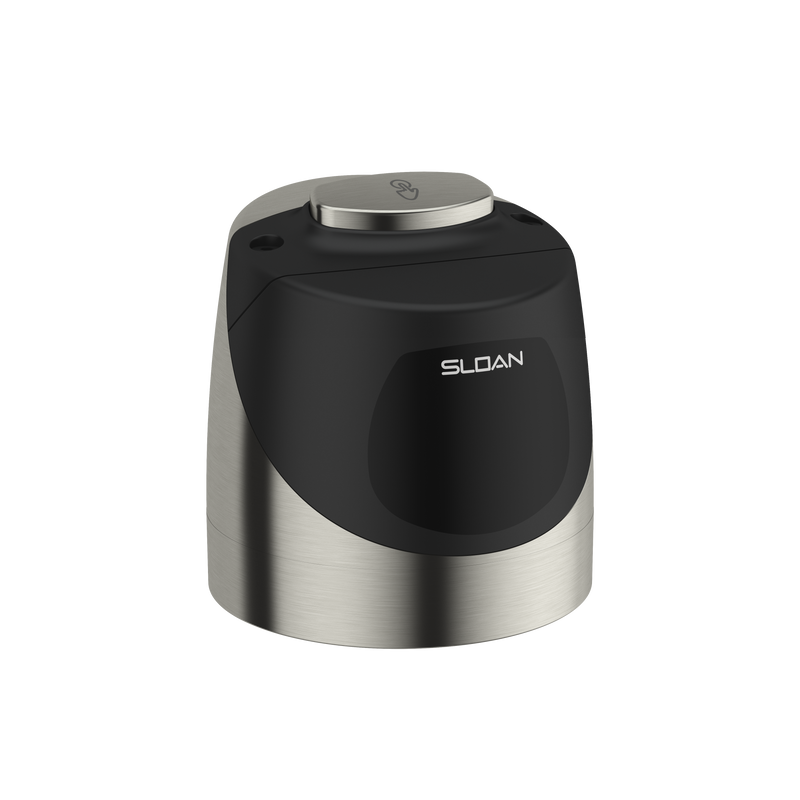

Sloan G2 RESS-C BT Battery-Powered Sensor Retrofit Kit for Water Closet Flushometers, Brushed Nickel, SKU 33250084

The Sloan G2 RESS-C BT-1.6-BN is a battery-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the G2 Exposed Sensor Water Closet Flushometer, featuring the innovative G2 RESS-C BT model. This cutting-edge flushometer combines advanced technology with user-friendly features to deliver exceptional performance and water conservation. The wireless connectivity allows for real-time diagnostics and adjustable settings, making maintenance and customization effortless. With the Sloan Connect App, facility managers can easily monitor and control the flushometer from their smartphones or tablets. The G2 RESS-C BT boasts a user-friendly three-second flush delay and a low battery indicator, ensuring optimal functionality and timely maintenance. Its durable construction includes a sweat solder adapter with a cover tube and a cast wall flange with a set screw, providing secure installation and long-lasting performance. The flushometer operates using an advanced infrared sensor with multiple-focused, lobular sensing fields for accurate high and low target detection. Water conservation is at the forefront of the G2 RESS-C BT design, featuring a fixed metering bypass and no external volume adjustment. The flex tube diaphragm is engineered for improved longevity and reduced maintenance needs, while the PERMEX synthetic rubber diaphragm with dual filtered fixed bypass ensures reliable operation. For added convenience, the flushometer includes a Courtesy Flush override button, allowing manual activation when necessary.

Base configuration: no option suffixes on this model number (G2 RESS-C BT-1.6-BN).

Features

• 1.6 gpf, Dual-Filtered Fixed Bypass Diaphragm, Brushed Nickel Finish, Single Flush, Electrical Override, Battery
• Wireless connected device for real time diagnostic and adjustable product settings
• Sloan Connect App® readily available for smart phone and tablet devices
• User friendly three (3) second Flush Delay
• “Low Battery” Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Four (4) Size AA Battery Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: G2 RESS-C BT-1.6-BN
• Certifications: ADA, Buy American Act, BABA, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Brushed Nickel
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: Bluetooth
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
