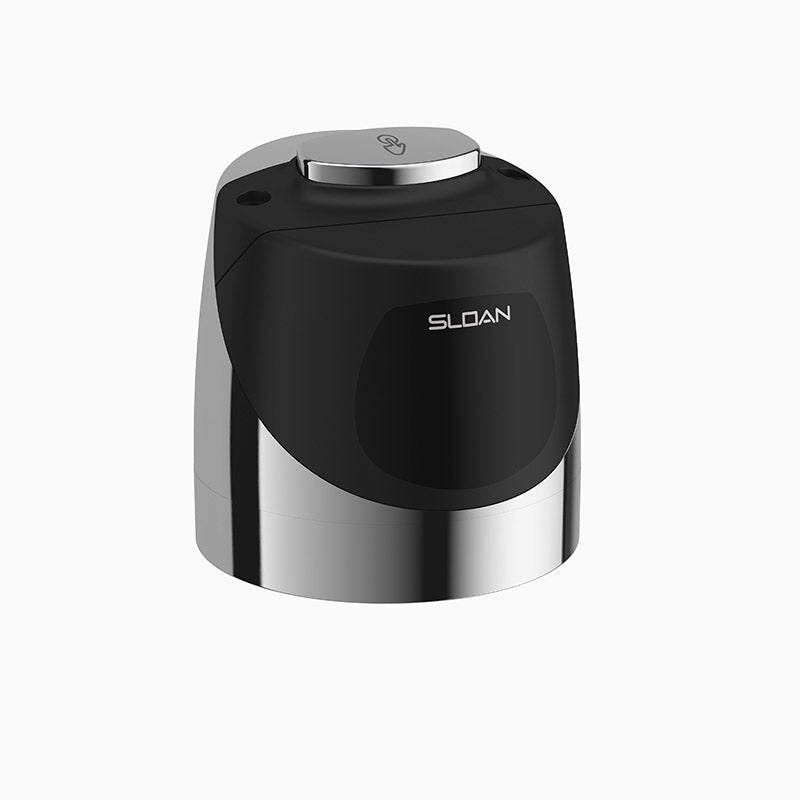

Sloan G2 RESS-U BT Battery-Powered Sensor Retrofit Kit for Urinal Flushometers, Polished Chrome, SKU 33250071

The Sloan G2 RESS-U BT-CP is a battery-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the G2 Exposed Sensor Urinal Flushometer, featuring the innovative G2 RESS-U BT model. This cutting-edge flushometer combines advanced technology with water-saving efficiency, making it an ideal choice for modern commercial restrooms. The wireless connectivity allows for real-time diagnostics and adjustable settings, providing facility managers with unprecedented control and insight into their plumbing systems. With the Sloan Connect App, users can easily monitor and manage the flushometer's performance from their smartphones or tablets, ensuring optimal functionality at all times. The G2 RESS-U BT is equipped with a "Low Battery" flashing LED indicator, alerting maintenance staff when it's time to replace the four AA batteries that power this reliable unit. Installation is made simple with the included sweat solder adapter, cover tube, and cast wall flange with set screw, ensuring a secure and professional fit. The flushometer's infrared sensor utilizes multiple-focused, lobular sensing fields for accurate high and low target detection, promoting hands-free operation and improved hygiene. Designed with durability and efficiency in mind, the G2 RESS-U BT features a fixed metering bypass and no external volume adjustment, guaranteeing consistent water conservation. The flex tube diaphragm and PERMEX synthetic rubber diaphragm with dual filtered fixed bypass work together to enhance the product's lifespan and reduce maintenance requirements. For added convenience, a Courtesy Flush override button is included, allowing for manual flushing when necessary.

Base configuration: no option suffixes on this model number (G2 RESS-U BT-CP).

Features

• Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Single Flush, Electrical Override, Battery
• Wireless connected device for real time diagnostic and adjustable product settings
• Sloan Connect App® readily available for smart phone and tablet devices
• “Low Battery” Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Four (4) Size AA Battery Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: G2 RESS-U BT-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: Bluetooth
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
