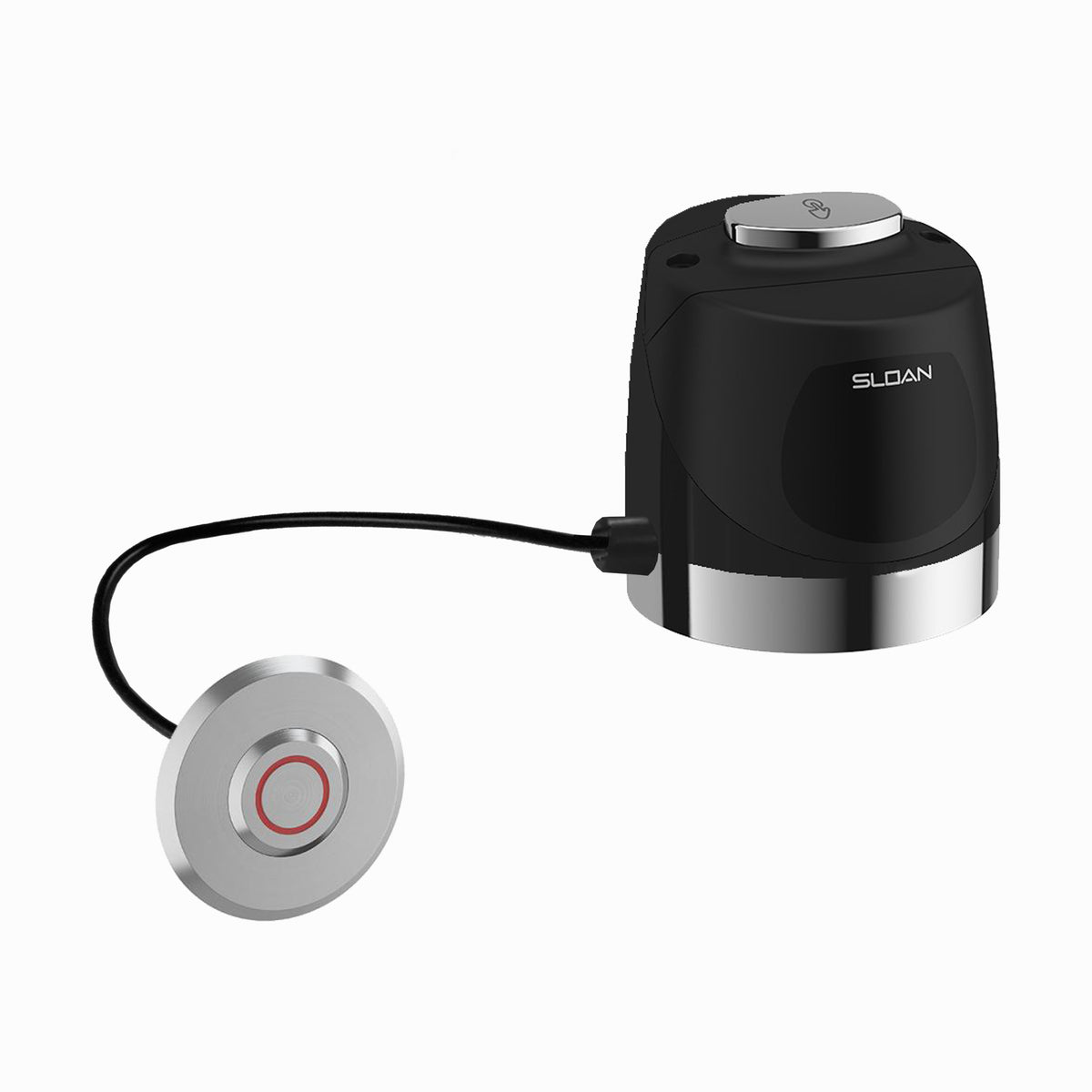

Sloan PWT-ESM RESS Battery-Powered Sensor Retrofit Kit for Water Closet Flushometers, LED Button, 3.5 gpf 1.6 gpf 2.4 gpf Prgm #A2L

The Sloan PWT-ESM RESS-1.28-RB-LED is a battery-powered sensor retrofit kit for Royal 603, Royal 611 and Royal 613 manual flushometers. It features a permex synthetic rubber diaphragm seat.

Options on this configuration: LED Touch Button (LED); 3.5 gpf; 1.6 gpf; 2.4 gpf; PRGM; #A2L. Sloan model number: PWT-ESM RESS-1.28-RB-LED. Sloan's own price-list description: 8603 ESM RESS 3.5, 1.6, 2.4 PRGM #A2L.

Features

• 1.28 gpf, Rough Brass Finish, Single Flush, Battery, Piezo
• Program set to 2 activations in 5 minutes with lockout
• Program is field changeable to 15, 30, 45 and 60 minute lockout times, or dorm setting
• Can be used with stainless-steel water closet fixtures from Acorn®, Bradley®, Metcraft® and other manufacturers
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Adjustable tailpiece accommodates various installation height
• Single Flush
• Solenoid operated
• Includes touch button
• Stainless steel, vandal proof button, chemical resistant push-button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
• Connector cable has white arrows for easy alignment
• Battery powered
• Four (4) Size AA Battery Power source
• Low Battery flashing LED
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Conversion Kit for- Manual flushometers: - Royal 603 - Royal 611 - Royal 613 Hydraulic flushometers: - Royal 9603 - Royal 9611 - Royal 9613 Fixture Type: Water Closet

Common Questions

What does this kit fit?

Sloan's own copy lists it as a conversion kit for Royal 603, Royal 611 and Royal 613 manual flushometers.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Solenoid
• MPN: PWT-ESM RESS-1.28-RB-LED
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Vandal Resistant: Yes
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Piezo
• Fits Brand: Sloan
• Fits Series: Royal 603;Royal 611;Royal 613
• Kit Type: PWT-ESM Retrofit Kit
