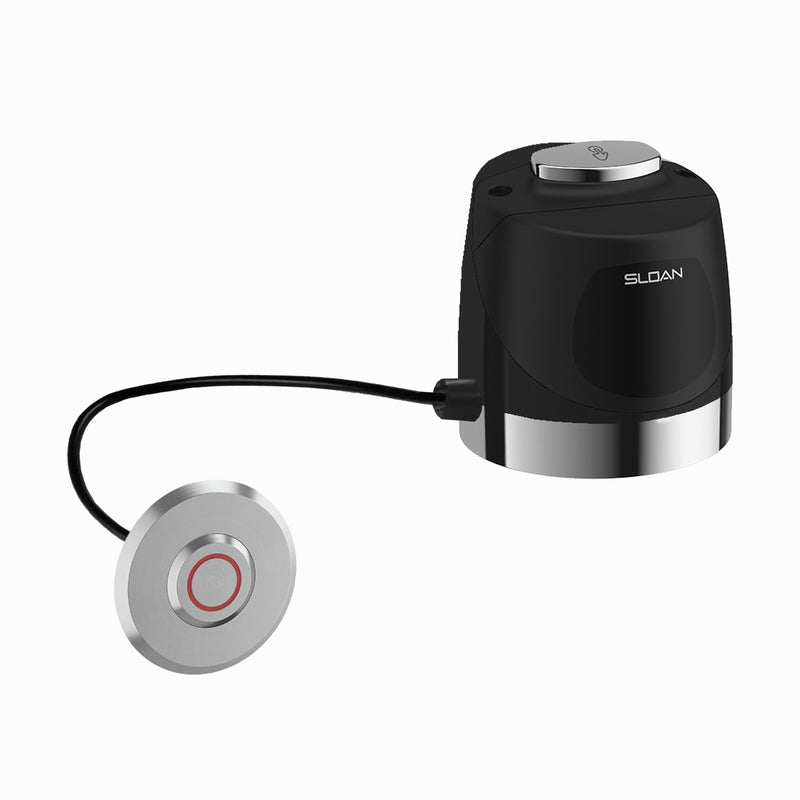

The Sloan PWT-ESM RESS-3.5/2.4/1.6-RB-LED is a battery-powered sensor retrofit kit for Royal 603, Royal 611 and Royal 613 manual flushometers. It features a permex synthetic rubber diaphragm seat.
Options on this configuration: LED Touch Button (LED); 3.5/2.4/1.6 gpf; 3.5 gpf; 1.6 gpf; 2.4 gpf; PRGM; #A5. Sloan model number: PWT-ESM RESS-3.5/2.4/1.6-RB-LED. Sloan's own price-list description: 8603 ESM RESS 3.5, 1.6, 2.4 PRGM #A5.
Features
- 3.5/2.4/1.6 gpf, Rough Brass Finish, Single Flush, Battery, Piezo
- Program set to 2 activations in 5 minutes with lockout
- Program is field changeable to 15, 30, 45 and 60 minute lockout times, or dorm setting
- Can be used with stainless-steel water closet fixtures from Acorn®, Bradley®, Metcraft® and other manufacturers
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Adjustable tailpiece accommodates various installation height
- Single Flush
- Solenoid operated
- Includes touch button
- Stainless steel, vandal proof button, chemical resistant push-button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
- Connector cable has white arrows for easy alignment
- Battery powered
- Four (4) Size AA Battery Power source
- Low Battery flashing LED
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Conversion Kit for-
Manual flushometers:
- Royal 603
- Royal 611
- Royal 613
Hydraulic flushometers:
- Royal 9603
- Royal 9611
- Royal 9613
Fixture Type: Water Closet
Common Questions
- What does this kit fit?
- Sloan's own copy lists it as a conversion kit for Royal 603, Royal 611 and Royal 613 manual flushometers.
- How is it powered?
- Battery-powered -- no wiring required.
- What fixture is this retrofit for?
- A water closet flushometer, per Sloan's own product name for this kit.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Solenoid
-
MPN: PWT-ESM RESS-3.5/2.4/1.6-RB-LED
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
Dual Flush: No
-
Finish: Unfinished (Rough Brass)
-
Vandal Resistant: Yes
-
Power Source: DC (Battery)
-
Power Supply Detail: 4x AA Batteries
-
Sensor Type: Piezo
-
Fits Brand: Sloan
-
Fits Series: Royal 603;Royal 611;Royal 613
-
Kit Type: PWT-ESM Retrofit Kit
