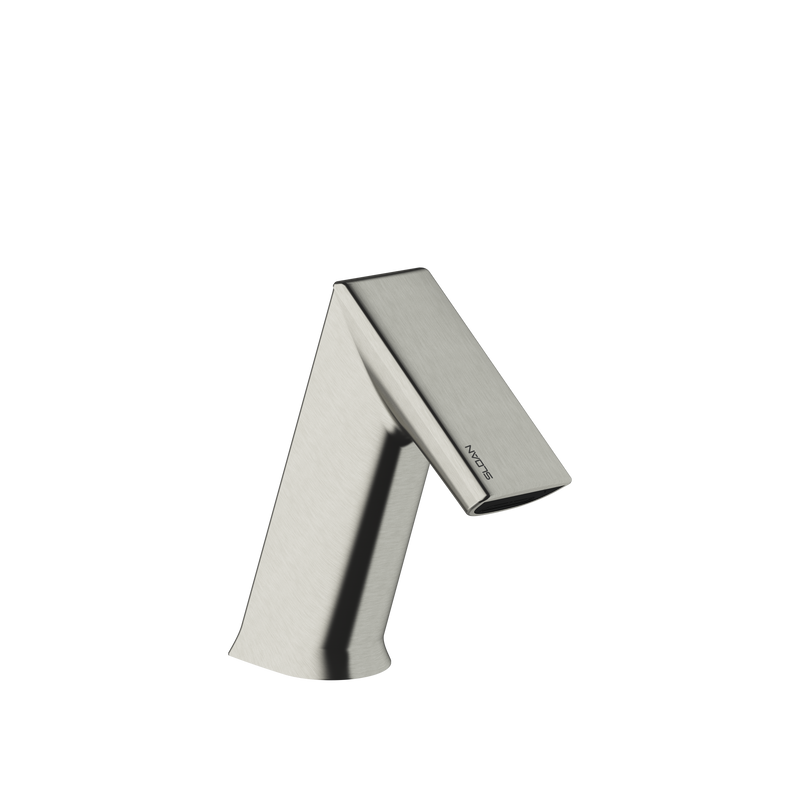

The Sloan EFX-200 is a Deck-mounted BASYS sensor faucet powered by a hardwired AC connection. It delivers 0.35 GPM through a multi-laminar (non-aerating) outlet. It includes an integrated side mixer. Available in Brushed Nickel.
The BASYS faucet is centered on a robust system of shared features and components. The EFX-200 is a hardwired mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most restroom environments. The EFX-200 faucet comes with a number of features, including integral water supply shut off, vandal resistant spray inserts and double infrared sensors with automatic setting feature. Additionally, the EFX-200 comes with the ability to make adjustable time-outs, includes all necessary mounting hardware and is a single hole installation. The EFX-200 also comes with a matching soap dispenser, the ESD-500.
Features
- Hardwired Less Transformer Power Supply, Integrated Side Mixer, Brushed Nickel Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor
- PVD Brushed Nickel Finish
- One tool service
- All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
- Solenoid housed in removable carrier that includes supply strainer
- Integral water supply shut off
- Supply strainer serviceable from above deck
- Vandal resistant spray insert, key housed inside faucet body
- All electronics sealed to IP-67
- Gold plated electrical contacts
- Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
- Flexible, high pressure supply hoses, 3/8” compression connections
- Bi-stable magnetic solenoid
- Double infrared sensors with automatic setting feature
- Single hole installation
- Includes all mounting hardware
- Line purge mode, eliminates stagnant water
- Adjustable time-outs
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is hardwired to 6 VDC -- plan for an electrician to run power to the fixture. There is no battery.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes an integrated side mixer. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.35 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”. It is smart-capable with the optional connectivity adapter.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EFX-200-HLT-ISM-BN-0.35GPM-MLM-FCT
-
Certifications: ASSE-1070, CALGreen, CEC, NYC 604.4, TAS
-
Power Source: Hardwired AC
-
Power Supply Detail: Hardwired Less Transformer (HLT)
-
Run Time (s): 10
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Connectivity: Smart Capable with Adapter
-
Centers: Single-Hole
-
Mixing Valve: Integrated Side Mixer
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Body Height: Mid
-
Faucet Hole Size (min): 1-3/16"
-
Mount Type: Deck-Mount
-
Finish: Brushed Nickel
-
Flow Rate (GPM): 0.35
-
Vandal Resistant: Yes
