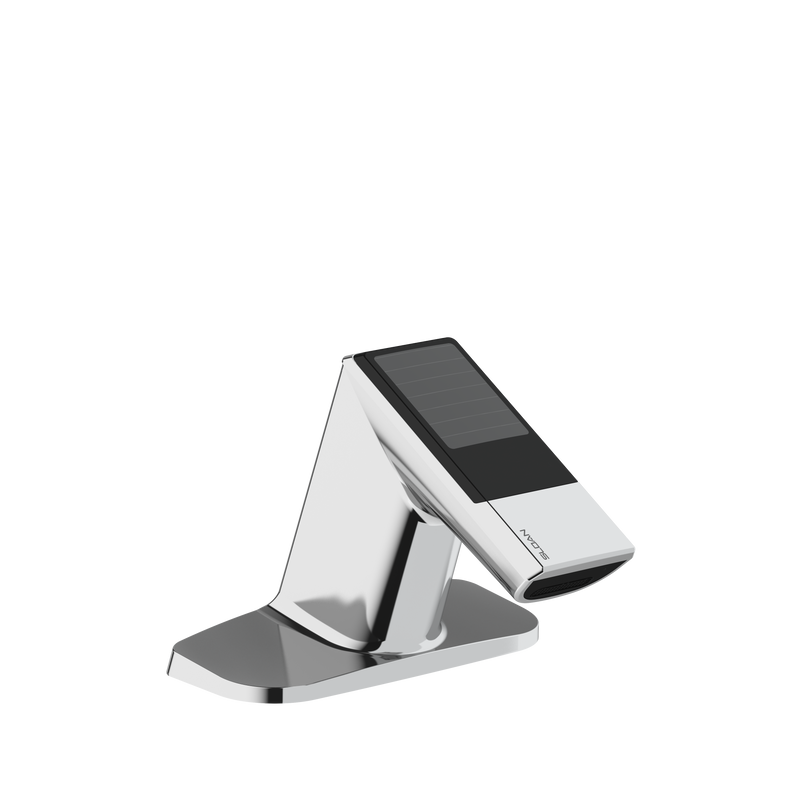

The Sloan EFX-675 is a Deck-mounted BASYS sensor faucet powered by solar. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a below deck manual mixing valve. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The BASYS faucet is centered on a robust system of shared features and components. The EFX-675 is a solar powered faucet with a low profile and integrated base. This faucet is ideal for the most demanding high-use environments. The integrated base offers added durability via two attachment points. EFX-675 faucet comes with a number of features, including integral water supply shut off, vandal resistant spray inserts and double infrared sensors with automatic setting feature. Additionally, the EFX-675 comes with the ability to make adjustable time-outs, includes all necessary mounting hardware and is a single hole installation. The EFX-675 also has a matching soap dispenser available for purchase separately, the ESD-500.
Options on this configuration: BASYS configuration code EFX675.100.0000.
Features
- Solar Power Supply, Below Deck Manual Mixing Valve, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
- Chrome plated finish
- Solenoid housed in removable carrier that includes supply strainer
- Integral water supply shut off
- Supply strainer serviceable from above deck
- Vandal resistant spray insert, key housed inside faucet body
- All electronics sealed to IP-67
- Gold plated electrical contacts
- Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
- Flexible, high pressure supply hoses, 3/8” compression connections
- Bi-stable magnetic solenoid
- Four (4) “AA” alkaline batteries
- Double infrared sensors with automatic setting feature
- Integral 4-inch base
- Includes all mounting hardware
- Line Purge mode, eliminates stagnant water
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is solar-powered, charging an internal battery from ambient light. Sloan states a battery life of 3 years 8,000 cycles/month.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes a below deck manual mixing valve.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.5 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EFX-675-SOL-BDM-CP-0.5GPM-MLM-FCT
-
Certifications: ADA, CALGreen, CEC, IAPMO, NYC 604.4, TAS, NSF-372
-
Lead-Free: Yes
-
Power Source: Solar
-
Power Supply Detail: Solar (SOL)
-
Battery Life: 3 years 8,000 cycles/month
-
Run Time (s): 10
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Centers: Single-Hole
-
Mixing Valve: Below Deck Manual Mixing Valve
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Body Height: Low Integrated Base
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.5
-
Vandal Resistant: Yes
