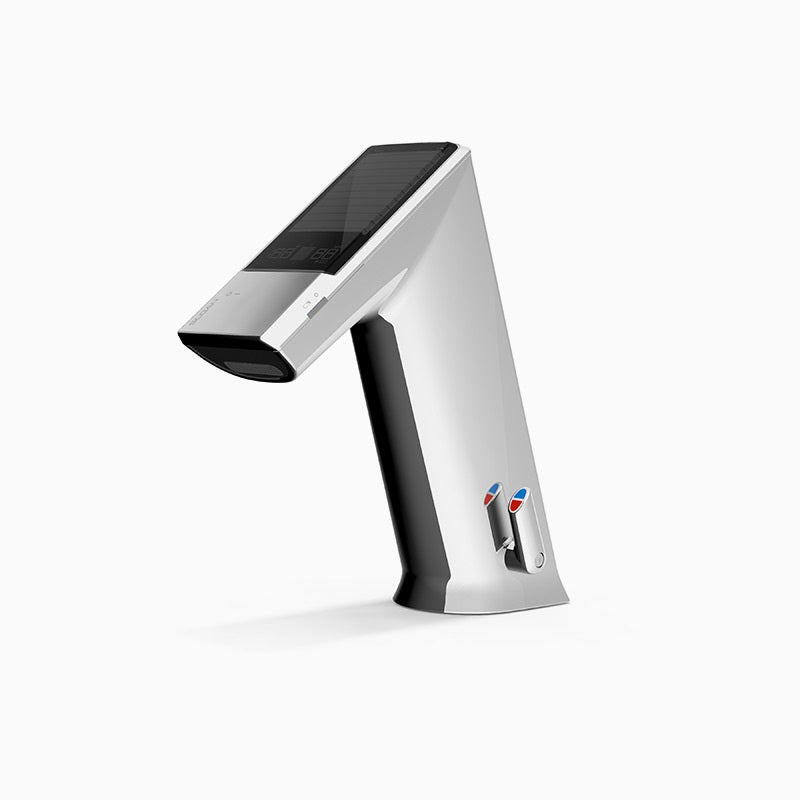

The Sloan EFX-275 is a Deck-mounted BASYS sensor faucet powered by solar. It delivers 1.5 GPM through an aerator outlet. It includes an integrated side mixer. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The BASYS faucet is centered on a robust system of shared features and components. The EFX-275 is a solar powered mid height profile that provides optimal height and proportions for effective hand washing, making it well suited for most restroom environments. The EFX-275 faucet comes with a number of features, including integral water supply shut off, vandal resistant spray inserts and double infrared sensors with automatic setting feature. Additionally, the EFX-275 comes with the ability to make adjustable time-outs, includes all necessary mounting hardware and is a single hole installation. The EFX-275 also comes with a matching soap dispenser, the ESD-500.
Options on this configuration: 8" Trim Plate (8); BASYS configuration code EFX275.502.0200.
Features
- 8" Trim Plate, Solar Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor
- Chrome plated finish
- One tool service
- All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
- Solenoid housed in removable carrier that includes supply strainer
- Integral water supply shut off
- Supply strainer serviceable from above deck
- Vandal resistant spray insert, key housed inside faucet body
- All electronics sealed to IP-67
- Gold plated electrical contacts
- Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
- Flexible, high pressure supply hoses, 3/8” compression connections
- Bi-stable magnetic solenoid
- Four (4) “AA” alkaline batteries
- Double infrared sensors with automatic setting feature
- Single hole installation
- Includes all mounting hardware
- Line purge mode, eliminates stagnant water
- Adjustable time-outs
- 3 year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is solar-powered, charging an internal battery from ambient light. Sloan states a battery life of 3 years 8,000 cycles/month.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes an integrated side mixer.
- What is the flow rate, and is it WaterSense certified?
- It delivers 1.5 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”. It is smart-capable with the optional connectivity adapter.
Specifications
-
Type: Sensor Faucet
-
Warranty: 3-Year Limited
-
MPN: EFX-275-8-SOL-ISM-CP-1.5GPM-FCT
-
Certifications: ADA, CEC, IAPMO, TAS, NSF-372
-
Lead-Free: Yes
-
Power Source: Solar
-
Power Supply Detail: Solar (SOL)
-
Battery Life: 3 years 8,000 cycles/month
-
Run Time (s): 10
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Connectivity: Smart Capable with Adapter
-
Centers: Single-Hole
-
Trim Plate: 8"
-
Mixing Valve: Integrated Side Mixer
-
Outlet Type: Aerator
-
Body Height: Mid
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 1.5
-
Vandal Resistant: Yes
