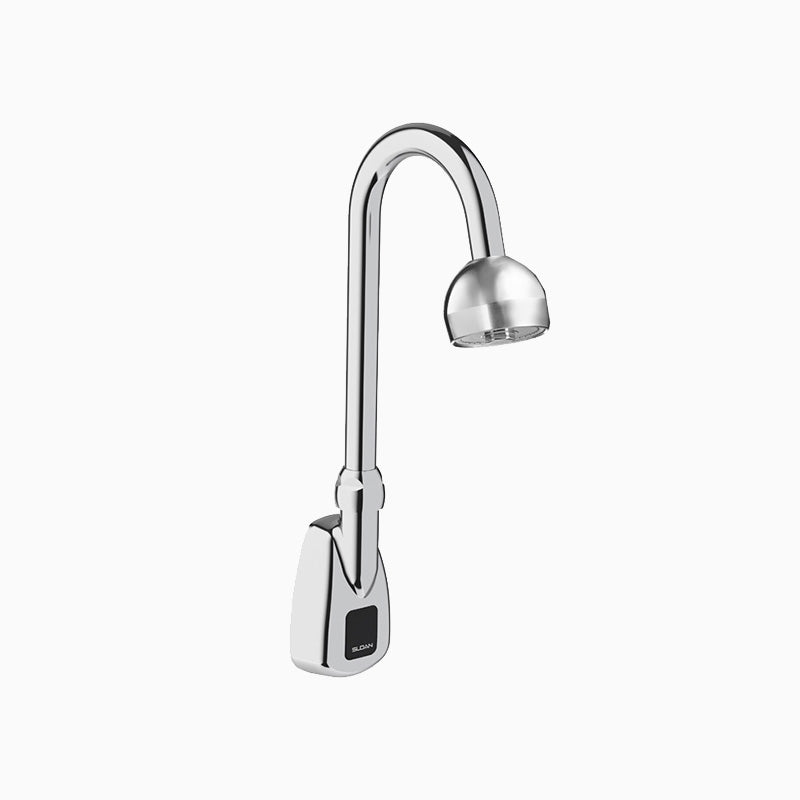

The Sloan EBF-550 is a Wall-mounted Optima sensor faucet powered by battery and turbine. It delivers 1.5 GPM through a shower head outlet. It includes a back-check tee. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EBF-550 is a battery or turbine powered wall mounted gooseneck body that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EBF-550 faucet comes with a number of features, including automatic self-adapting sensor technology, integrated water shut-off, hygienic line flush and quick connect fittings. The EBF-550 is bluetooth enabled that provides water usage and battery strength reporting as well as allows for wireless settings adjustment when used with the Sloan Connect App. The EBF-550 is available with a standard gooseneck spout design or surgical bend spout, you can also select a shower head spray type for more water coverage when hand-washing. Additionally, the EBF-550 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and AA alkaline batteries.
Features
- Battery + Turbine Power Supply, Back-Check Tee, Polished Chrome Finish, 1.5 gpm, Shower Head Spray, Infrared Sensor
- Chrome plated finish
- Commercial Grade Faucet
- ADA Compliant
- Cast Brass Spout
- Quick Connect Fittings
- Integrated Water Shut-off
- Wireless Settings Adjustment
- On-demand or Metered activation
- Hygienic Line Flush
- Water Usage and Battery Strength Reporting
- Self-adapting Sensor
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet is powered by an onboard turbine that generates power from water flow, backed by a battery for standby power. Sloan states a service life of 8 years 8,000 cycles/month.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes a back-check tee.
- What is the flow rate, and is it WaterSense certified?
- It delivers 1.5 GPM. It is EPA WaterSense listed.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 8”-10”. It supports Bluetooth commissioning through the Sloan Connect app.
Specifications
-
Type: Sensor Faucet
-
MPN: EBF-550-TUR-TEE-CP-1.5GPM-SHR-FCT
-
Certifications: ADA, CEC, IAPMO, NSF-61, TAS, NSF-372, WaterSense
-
Lead-Free: Yes
-
Power Supply Detail: Battery + Turbine (TUR)
-
Battery Life: 8 years 8,000 cycles/month
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 8”-10”
-
Connectivity: Bluetooth
-
Centers: Single-Hole
-
Mixing Valve: Back-Check Tee
-
Outlet Type: Shower Head
-
Spout Type: Gooseneck
-
Faucet Hole Size (min): 1"
-
Mount Type: Wall-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 1.5
