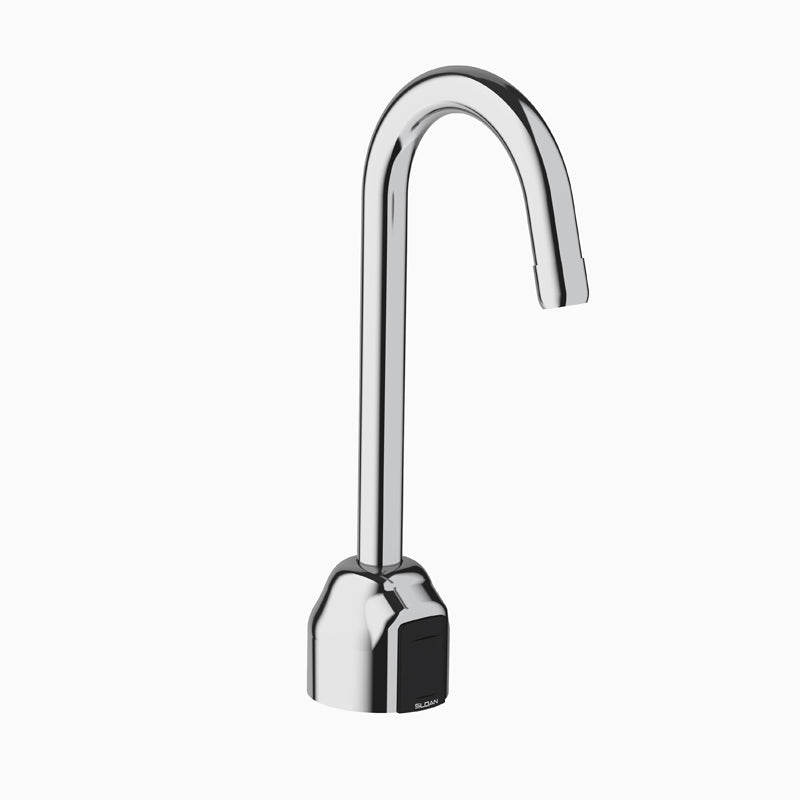

The Sloan EBF-750 is a Deck-mounted Optima sensor faucet. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a below deck thermostatic mixing valve.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EBF-750 is a battery or turbine powered gooseneck body that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EBF-750 faucet comes with a number of features, including automatic self-adapting sensor technology, integrated water shut-off, hygienic line flush and quick connect fittings. The EBF-750 is bluetooth enabled that provides water usage and battery strength reporting as well as allows for wireless settings adjustment when used with the Sloan Connect App. The EBF-750 is available with a standard gooseneck spout design or surgical bend spout, you can also select a shower head spray type for more water coverage when hand-washing. Additionally, the EBF-750 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and AA alkaline batteries.
Options on this configuration: 4" Trim Plate (4).
Features
- Commercial Grade Faucet
- ADA Compliant
- Cast Brass Spout
- Quick Connect Fittings
- Integrated Water Shut-off
- Wireless Settings Adjustment
- On-demand or Metered activation
- Hygienic Line Flush
- Water Usage and Battery Strength Reporting
- Self-adapting Sensor
Common Questions
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes a below deck thermostatic mixing valve. Sloan does not list ASSE 1070 certification for this specific code -- confirm on the spec sheet before specifying it for a code-mandated scald-protection application.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.5 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- It supports Bluetooth commissioning through the Sloan Connect app.
Specifications
-
Type: Sensor Faucet
-
MPN: EBF750-4-TUR-BDT-CP-0.5-GPM-MLM-FCT
-
Connectivity: Bluetooth
-
Trim Plate: 4"
-
Mixing Valve: Below Deck Thermostatic Mixing Valve
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Spout Type: Gooseneck
-
Mount Type: Deck-Mount
-
Flow Rate (GPM): 0.5
